17

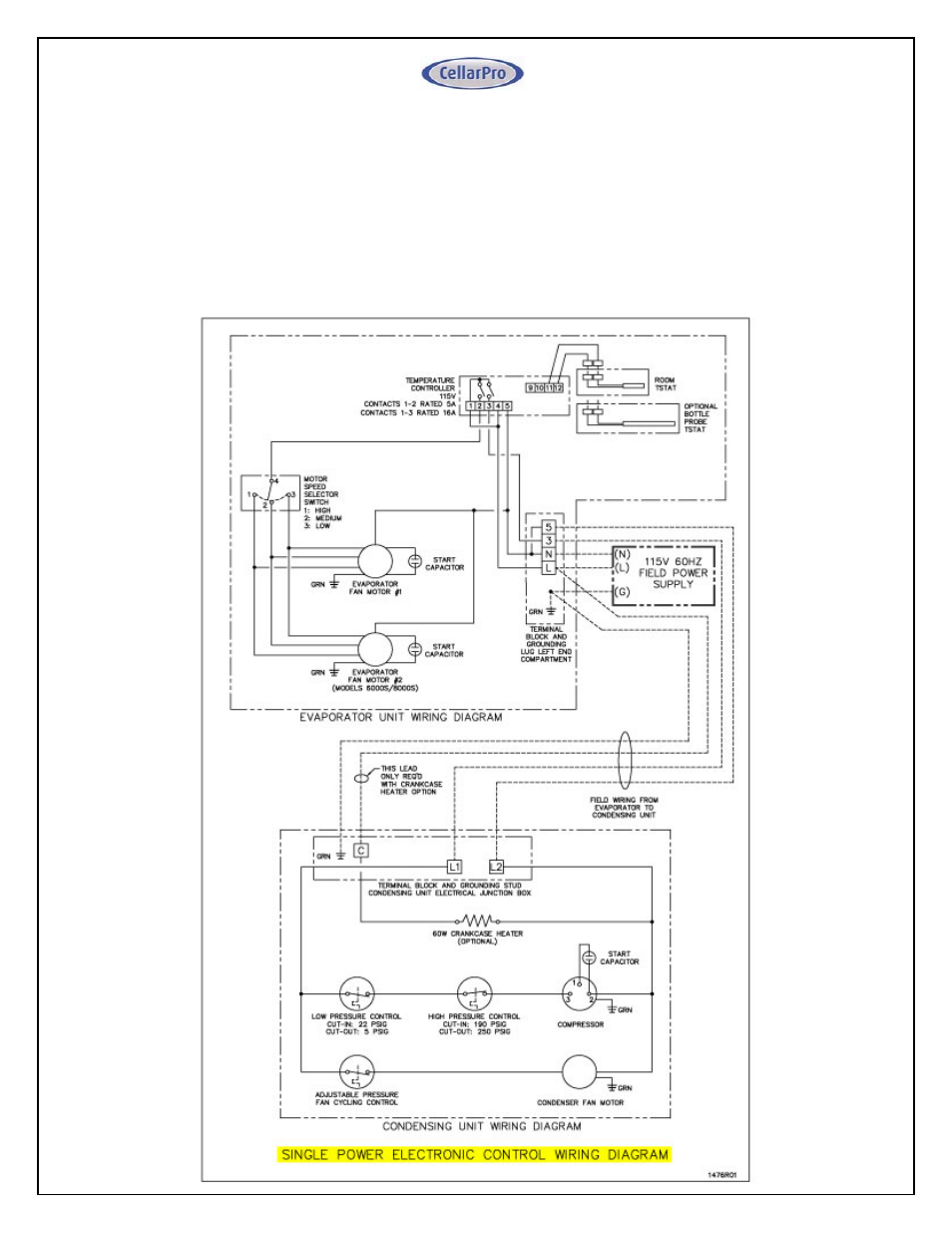

System Wiring – Option B: Single Power / Electronic Control
Under this configuration, only the Evaporator is powered, and the Condensing unit
is wired to the Evaporator by connecting:
 "L" on the Evaporator to "L1" on the Condensing unit
 "N" on the Evaporator to "L2" on the Condensing unit
 Ground lug on the Evaporator to the grounding stud on the Condensing unit.
 With optional crankcase heater: Run a separate lead connecting “L” on
Evaporator “C” on Condensing Unit.
