QUICK REFERENCE GUIDE

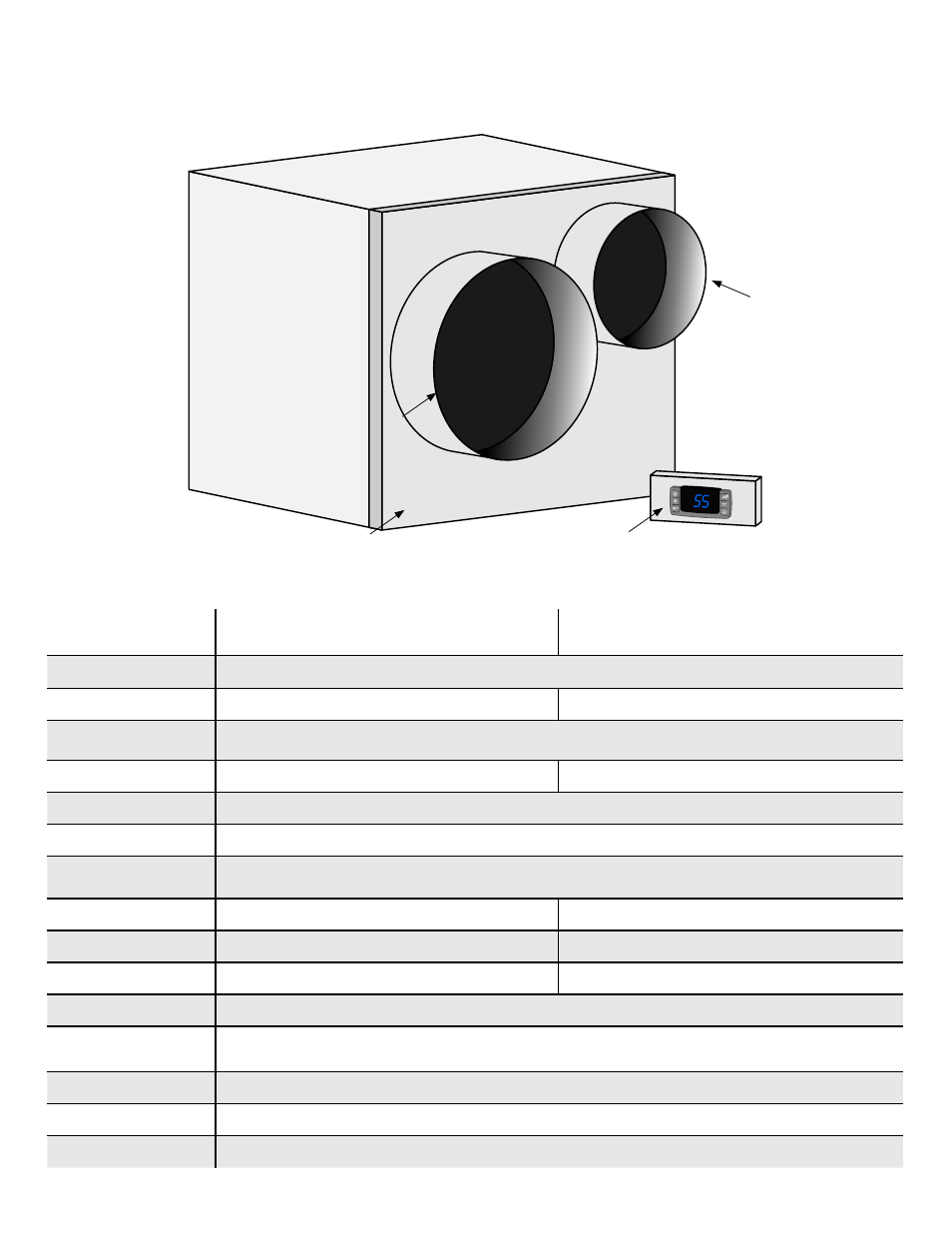

Platinum Split Evaporator Unit (Fan Coil Unit) Front / Side View
Keypad
Duct Plenum
Return Air
Supply Air
DUCTED PLATINUM SPLIT UNIT SPECIFICATIONS
Model
4000 Evaporator
(Fan Coil Unit)
4000 Condenser
(Water Cooled Condensing Unit)
Cellar Size (cu. ft.)
1000
Dimensions
20.5”w x 15.625”h x 20”d
13”w x 10”h x 18.5”d
BTUh with 90° air entering
the Condenser Coil
3650
CFM
270
N/A
Refrigerant
R-134a
Condensing Unit HP
1/3++
Voltage Rating
(20 amp
dedicated circuit required)
115V
Weight (lbs)
56
44
AMPS
(Starting/Running)
2/1
32.7/7.2
dBA
54
50
Drainline
1/2” Condensate
Installation
Use 8” supply and 10” return insulated ducting. Ducting should not exceed 25 ft. from the
cellar. Condenser is installed up to 100 ft from Evaporator Unit (Fan Coil Unit)
Thermostat
Digital Control Display
Temp. Delta
55°F
Temperature differential between the cellar temperature and condenser air intake temperature.
Warranty
2 year parts and labor
