www.whisperkool.com | Page 3
QUICK REFERENCE GUIDE

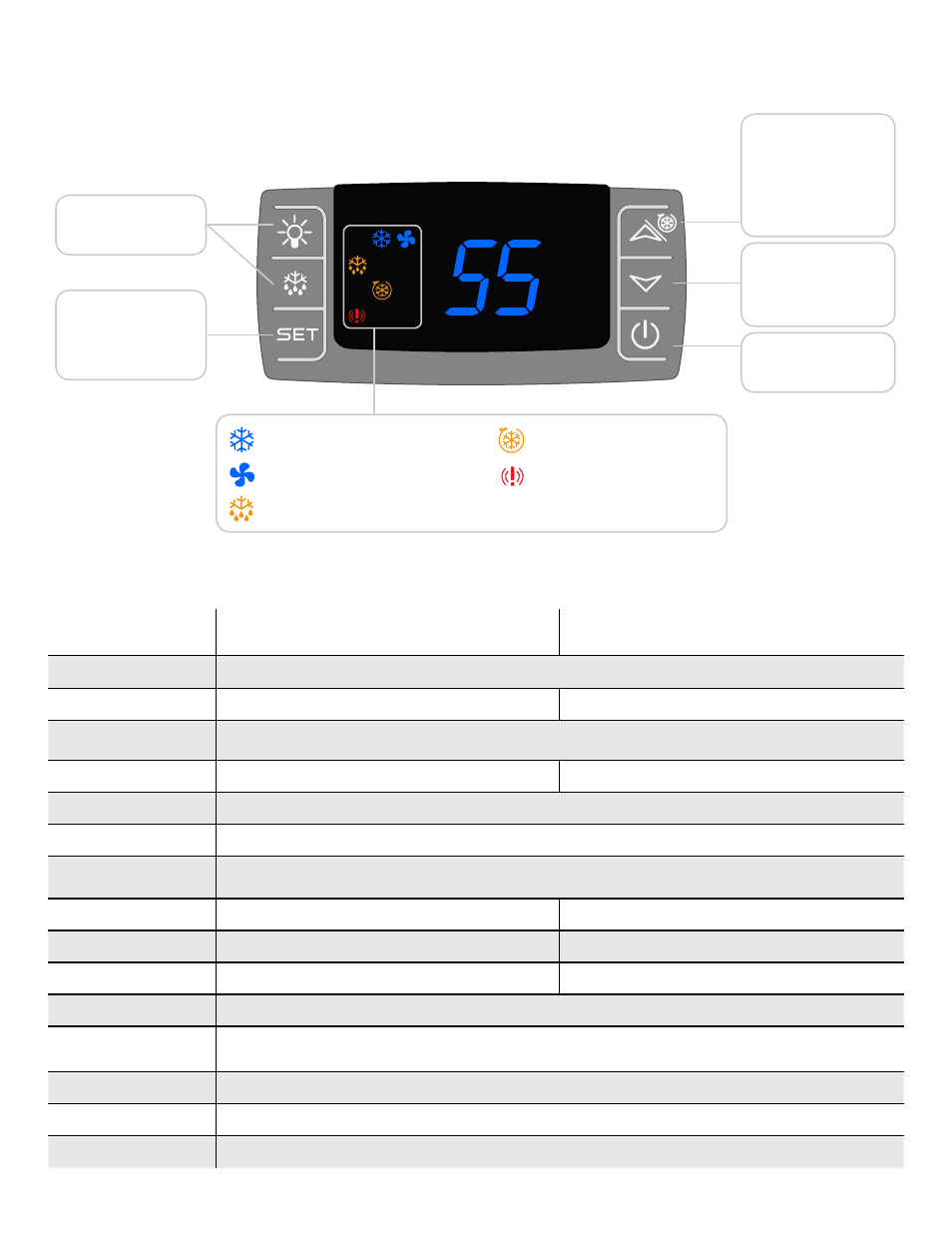

Controller Layout
Refer to page 34 for complete listing of buttons and symbols.
° F
Compressor On
Fans are On
Unit is in Anti-Frost Mode
Unit is in Pre-Chill Mode
Alarm is Present
° F
° F
° F
° F
° F
View Set Point
Change Set Point
(Press and hold 3-5 sec)
Inactive
Power On/Off
Low History
Scroll Button
High History
Scroll Button
Cellar Pre-Chill
(Press and hold 3-5 sec)
WALL MOUNTED PLATINUM SPLIT UNIT SPECIFICATIONS
Model
4000 Evaporator
(Fan Coil Unit)
4000 Condenser
(Water Cooled Condensing Unit)
Cellar Size (cu. ft.) 1000
Dimensions 20.5”w x 15.625”h x 16”d 13”w x 10”h x 18.5”d
BTUh with 90° air entering
the Condenser Coil
3650
CFM 270 N/A
Refrigerant R-134a
Condensing Unit HP 1/3++
Voltage Rating (20 amp
dedicated circuit required)
115V
Weight (lbs) 56 44
AMPS (Starting/Running) 2/1 32.7/7.2
dBA 54 50
Drainline 1/2” Condensate
Installation
Evaporator Unit (Fan Coil Unit) is installed in the cellar or up to 25 ducted ft. away, condenser is
installed up to 100 ft from Evaporator Unit (Fan Coil Unit)
Thermostat Digital Control Display
Temp. Delta 55°F Temperature differential between the cellar temperature and condenser air intake temperature.
Warranty 2 year parts and labor
