INSTALLING THE WALL MOUNTED EVAPORATOR (FAN COIL UNIT)

1/8”

WALL

STUD

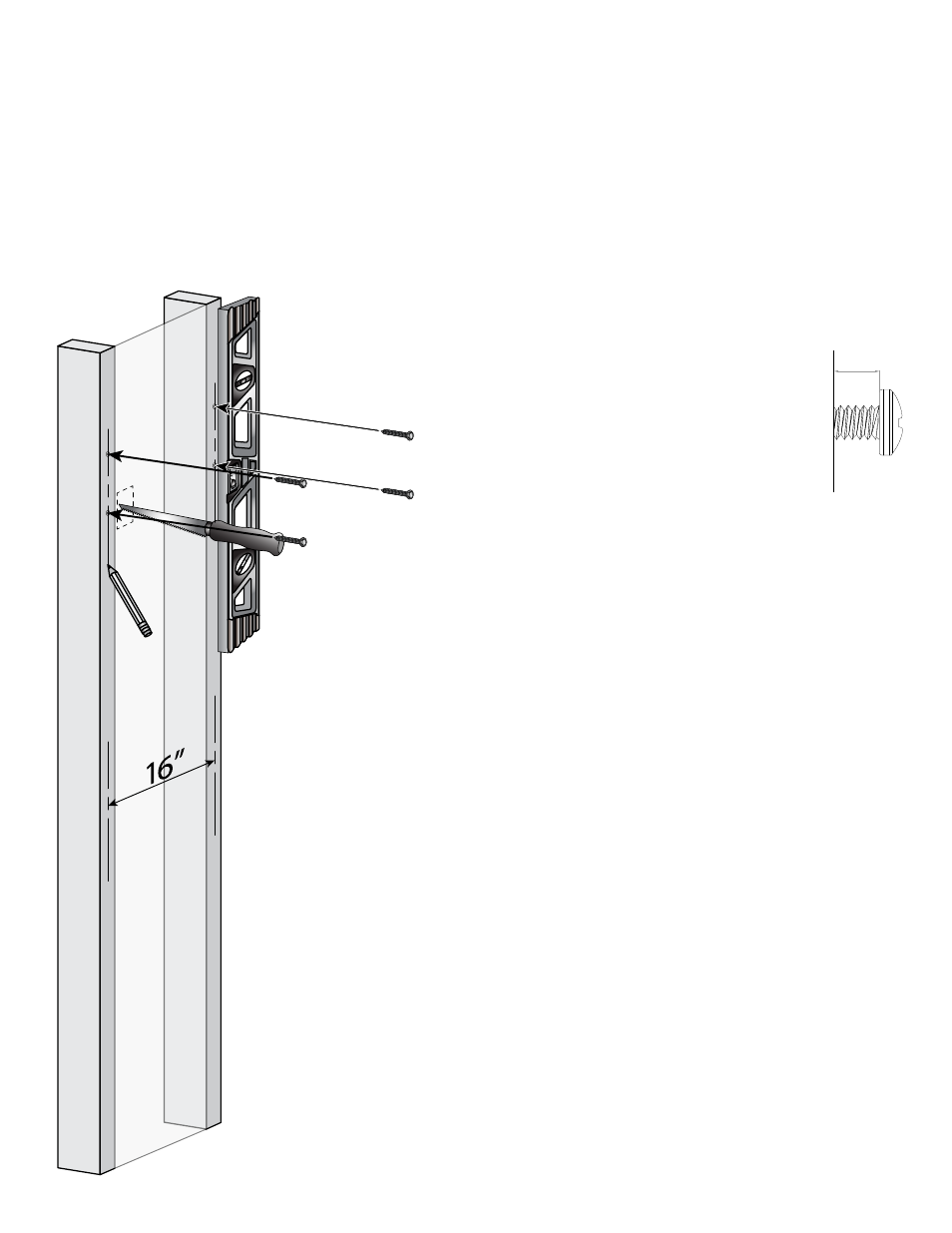

1. Locate 2 wall studs in the desired mounting location spaced 16” on center.
2. Mark vertical lines on each stud 16” apart.
3. Mark an intersecting, horizontal line at the desired height of the unit.
4. Make a mark on each stud 13 ½” down from the intersection of the horizontal and vertical lines.

Note: The top of the unit needs to be installed at a

minimum of 6” and a maximum of 18” from the ceiling.

5. Install the 4 supplied 1 ¾” hex

head screws into the studs at the

locations marked leaving 1/8”

between the wall surface and screw

head.

6. If routing through a wall, cut out an access hole for

the line set, drain line and electrical.

7. Raise the evaporator to the installation location. Align

the rear key holes with the mounting screws and

mount the unit.

8. Using a ¼” wrench or socket, tighten the top

mounting screws.
