Vintage Cellars Platinum Split Fully Ducted 4000WC User Manual
Page 17
www.whisperkool.com | Page 15
PREPARING THE FULLY DUCTED EVAPORATOR (FAN COIL UNIT)

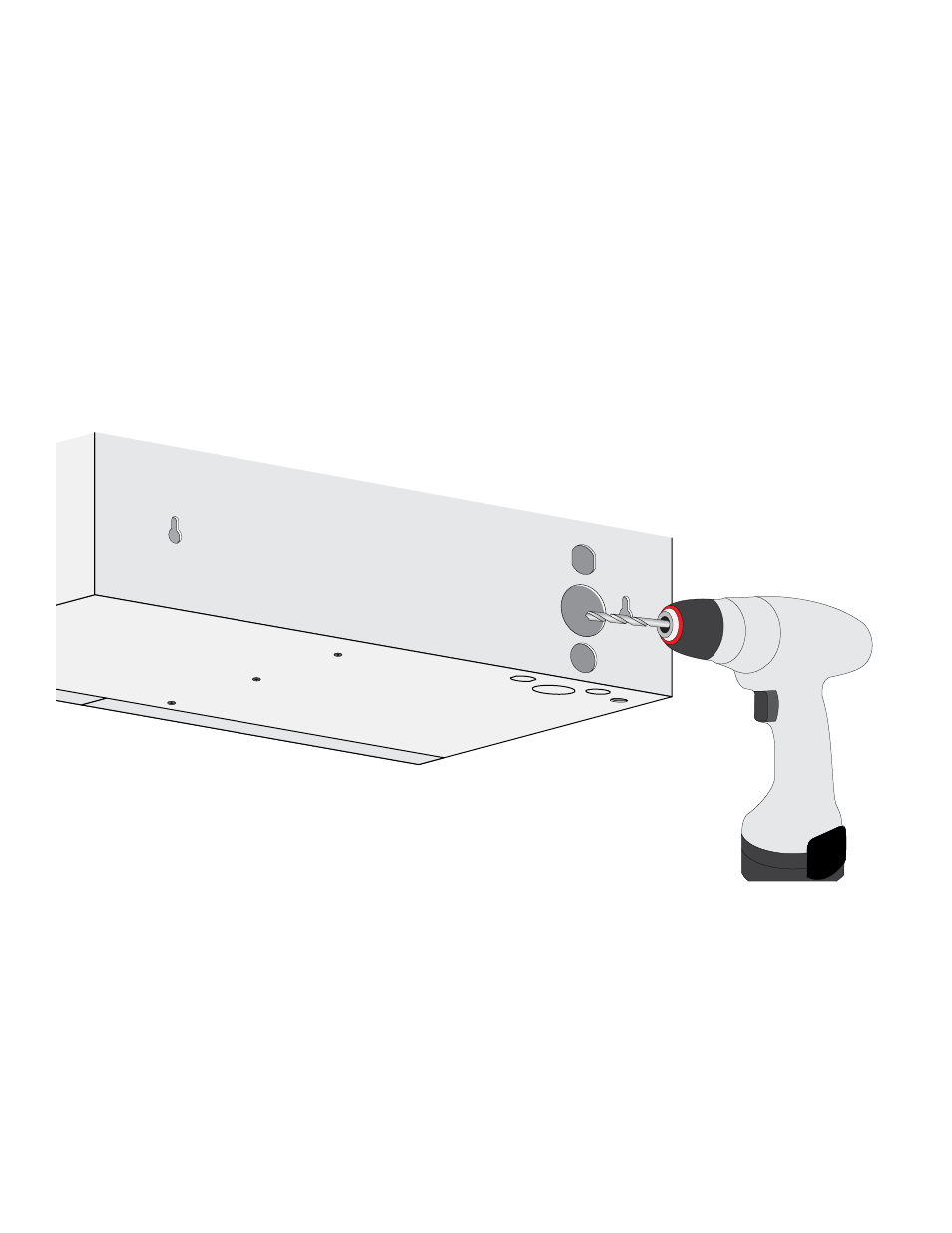

1. Remove the knockouts for the drain line, line set, and electrical on the bottom or rear of the unit
depending on your installation location.
2. Remove the insulation from the knockout holes.
3. Route the bottle probe from the cellar to the evaporator unit. Follow the directions on page 13 for
correct installation and location of the bottle probe.
4. Follow the directions on page 32 to mount the remote keypad and run the communication cable to the
evaporator unit.
