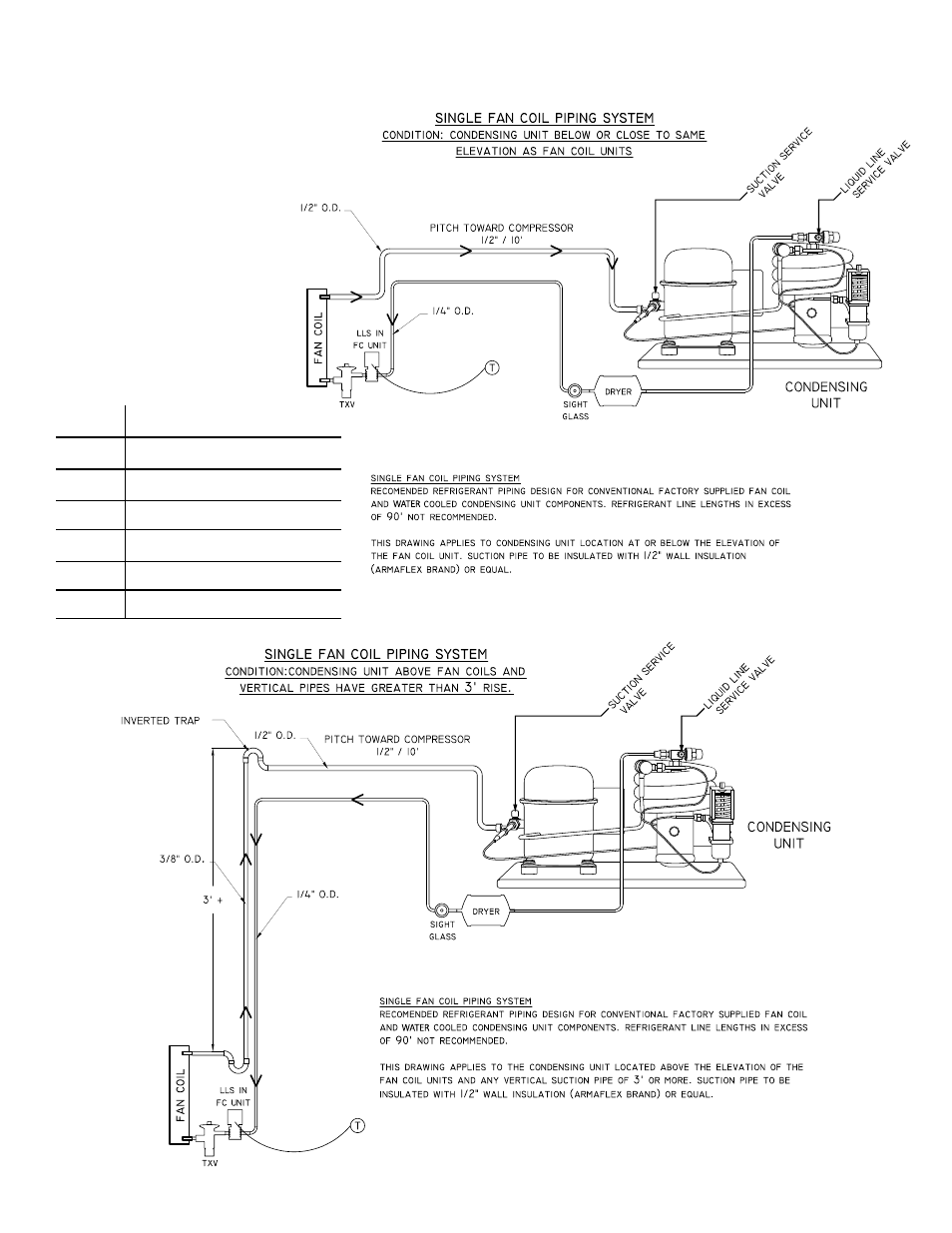

LINE SET PIPING DIAGRAMS
These are two options for running
the line set from the coil to the
condensing unit. Option 1 is
specifically for when the system
is installed with the condensing
unit below or leveled to the
coil. Option 2 is for when the
system is installed with
the condensing unit at a
higher elevation than the
coil.
Option 1
Option 2
LEGEND
LLS Liquid Line Solenoid
TXV Thermal Expansion Valve
COMP Compressor
REC Receiver
EVAP. Evaporator
O.D. Outer Diameter
