4 ATV Portable Truck Scale Assembly Instructions
2.0 Assembly
The following sections detail deck module assembly, setting load cell mounts, and scale relocation.
WARNING
Crush hazard, keep hands, feet and other body parts clear when setting weighbridge modules in place.
Moving parts can crush and cut.
2.1 Deck Module Assembly
Indicator
Self-contained module Self-contained module Bridge module
J-box J-box
Note
The bridge module is placed on truck last. Set it off to the side when unloading modules at installation site.
1. Considering the location of the indicator, place first self-contained module of the ATV into position on a
flat surface. Be sure to arrange module with J-box positioned toward indicator (see Figure 2-1).

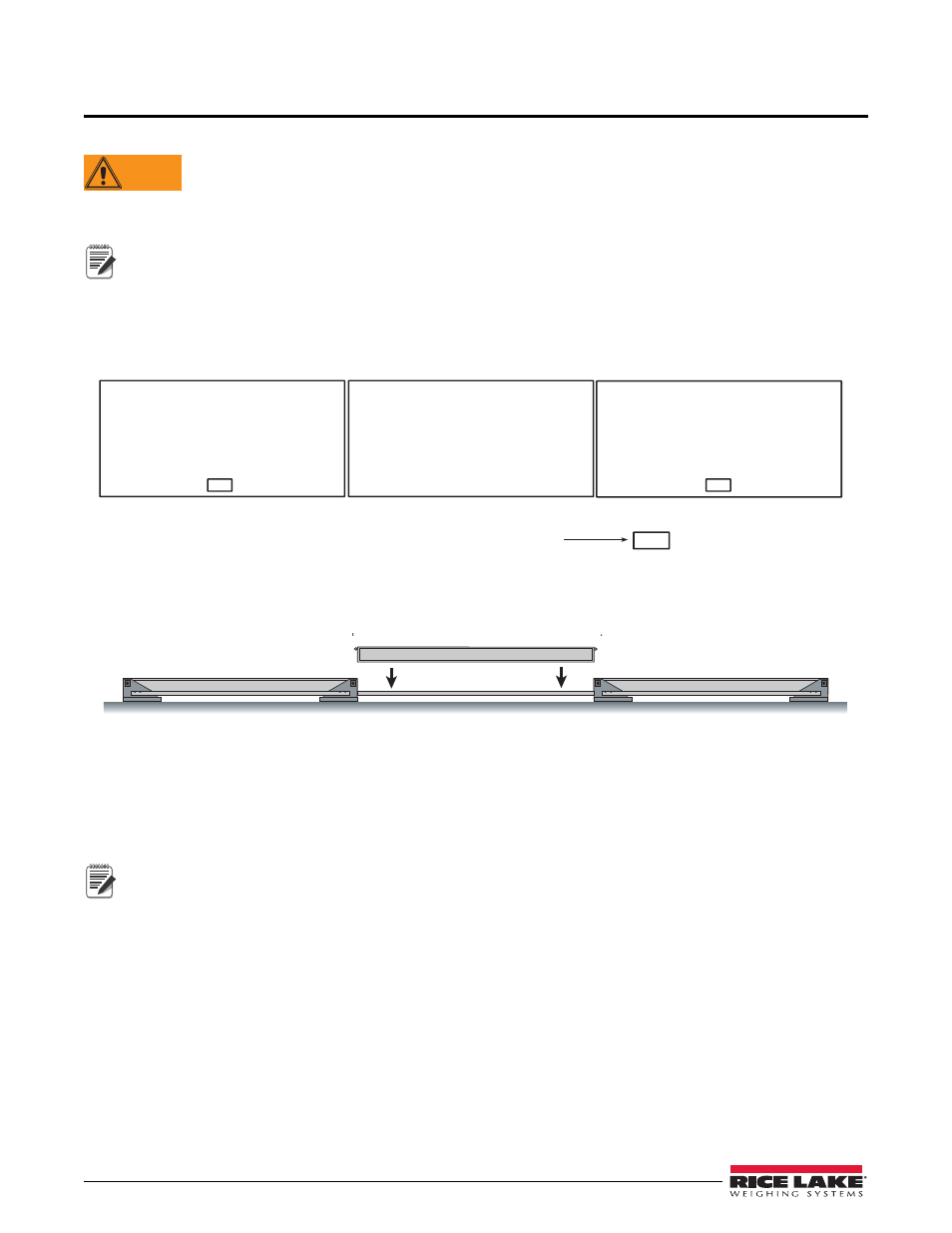

Figure 2-1. Module Placement
2. Install spacer tubes to the first module using the supplied hardware (see Figure 2-2).
23’ 2”
Figure 2-2. Spacer Tube Installation
3. Set other self-contained module to other end of spacer tube (spacer tube is used to ensure proper distance
between self-contained modules for installation of bridge module). This module should also be arranged
with J-box positioned toward indicator.
4. Remove load cell cover plates (requires 5/16" Allen wrench) and place bridge module into receptacles on
self-contained modules.
Note
Before installing the bridge module, check for debris that may have fallen into the two pin-connection
receptacles.
If the pins do not seat squarely in the receptacles, raise the module slightly and reset the module. Check the
modules for proper alignment.
