Installation Manual Mounting Kits PR 6002
Sartorius EN-17
3.4 Load Disk Sets PR 6002/00S, ../01S
Caution!
Material properties and shaping of the load cell and load disk are matching
optimally. Load disks from Sartorius must be used!
The surfaces for the load disks must be horizontal, flat and rigid, and must be able to
withstand the loads encountered during application. If soft layers are inserted
between mounting kit and the rigid adapter, additional load equalization plates
between mounting kit and soft layer must be provided externally.
Type Max. capacity of load cell Material
PR 6002/00S 1…10 t Stainless steel
PR 6002/01S 25…50 t Stainless steel

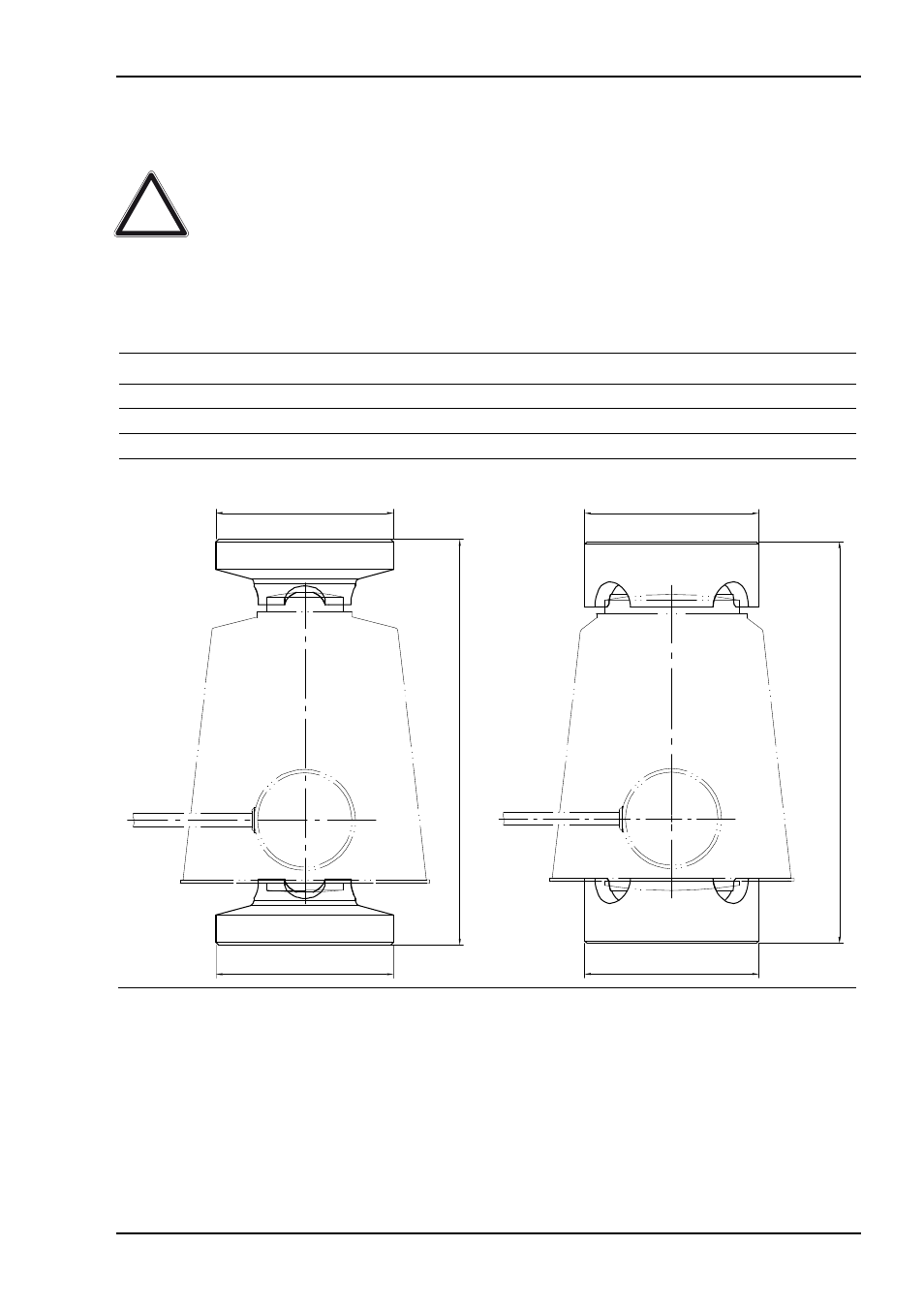

PR 6002/00S
ш70
ш70
160.5
PR 6002/01S
ш70
ш70
160.5
