4 LoadRunner™ Series Installation & Service Manual
2.2 Load Pins
Hinge pivot and lift cylinder load pins built by Rice Lake Weighing Systems are available in two sizes:
• 2 inch diameter (see Figure 2-2) Dump Truck
Full length hinge bars are also available as direct replacements for tipping bodies with hinge bars (contact a Rice
Lake Weighing Systems dealer or the factory). All load pins are supplied with collars and bolts with locknuts to
secure pin position. The installer must ensure that all load pin installations can receive required initial and periodic
lubrication.
Electrical
Connector
Double shear load pin
made from heat treated alloy steel
nickel plated for corrosion resistance
fitted with an M12 commercial vehicle class connector
11.8" (300 mm)
2"
(49 mm)
0.79"
(20 mm)
5.5"
(142 mm)
0.79"
(20 mm)
0.5 Ø (14 mm )
Orientation and
Anti-rotation
Reaction
Force
Reaction Force
2.4"
(62 mm)
6.4"
(162 mm)
2"
(53 mm)
Chamfer
0.12" (3 mm) x 45°
Both Ends
0.4"
(10 mm)
Ø 2" d10 Ø
50.70
50.58
Direction of Load
Direction
of Load

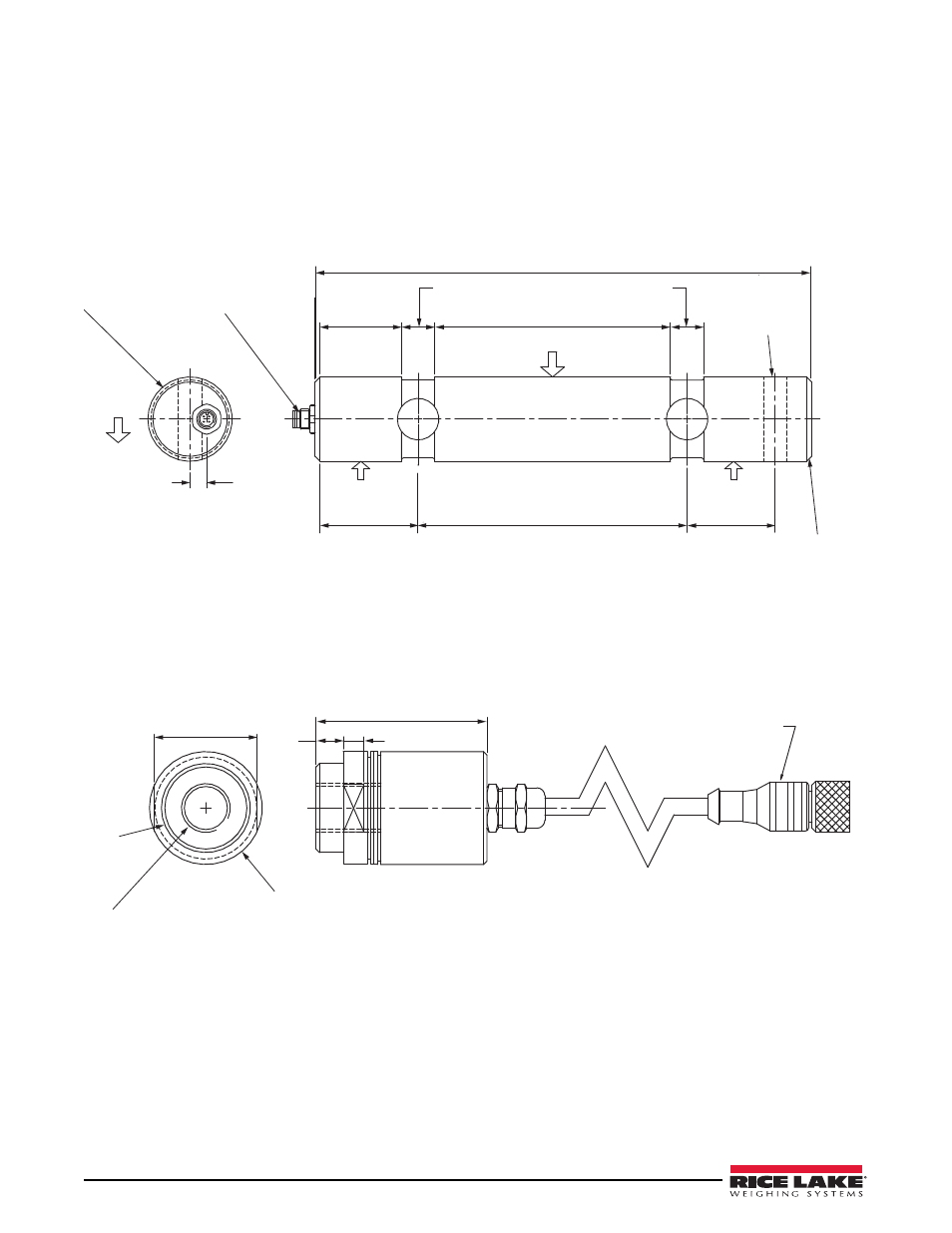

Figure 2-2. 2 Inch Diameter Load Pin (PN 131207)
2.3 Pressure Transducer
1.2" A/F
(30 mm)
0.25" (6 mm)
0.31"
(8 mm)
2" (50 mm)
1" Ø
(26 mm)
9/16
"-18 SAE
1.2" Ø
(33 mm)
16' (5 M) if four core cable
with a M12 fully moulded male connector
Material: Stainless Steel
Sealing: Fully welded to IP68
Figure 2-3. Oil Pressure Transducer (PN 131211)
