Roll Off Load Pin Installation 7
9. Install each mount assembly and load pin per Figure 3-3.
Never strike the load cell directly, as it may cause
damage to the load cell. Use a wood block (or similar
material) to cushion the load cell, and tap lightly.
Important
Step 1
Insert neoprene
bushing into the
support opening.
Step 2
Place a collar over the
neoprene bushing and
snug against the support.
Step 3
Place the mount weldment
over the neoprene bushing
between the supports.
Step 4
Press the neoprene
bushing farther in to the
mount weldment to hold it.
Step 5
Place the remaining collar
into the space between the
mount weldment and the
spacer.
Step 6
Press the neoprene
bushing the rest of the
way in to support the
components.
Step 7
Push the load pin through
the neoprene bushing,
aligning the holes in the
load pin and the support.
Step 8
Secure load pin to the
support using a bolt
and nut.
Left Rear - Connector should be toward the cab
Right Rear - Connector should be away from the cab.
Cab of Truck
Step 9
Using grease, lubricate
the neoprene bushing.

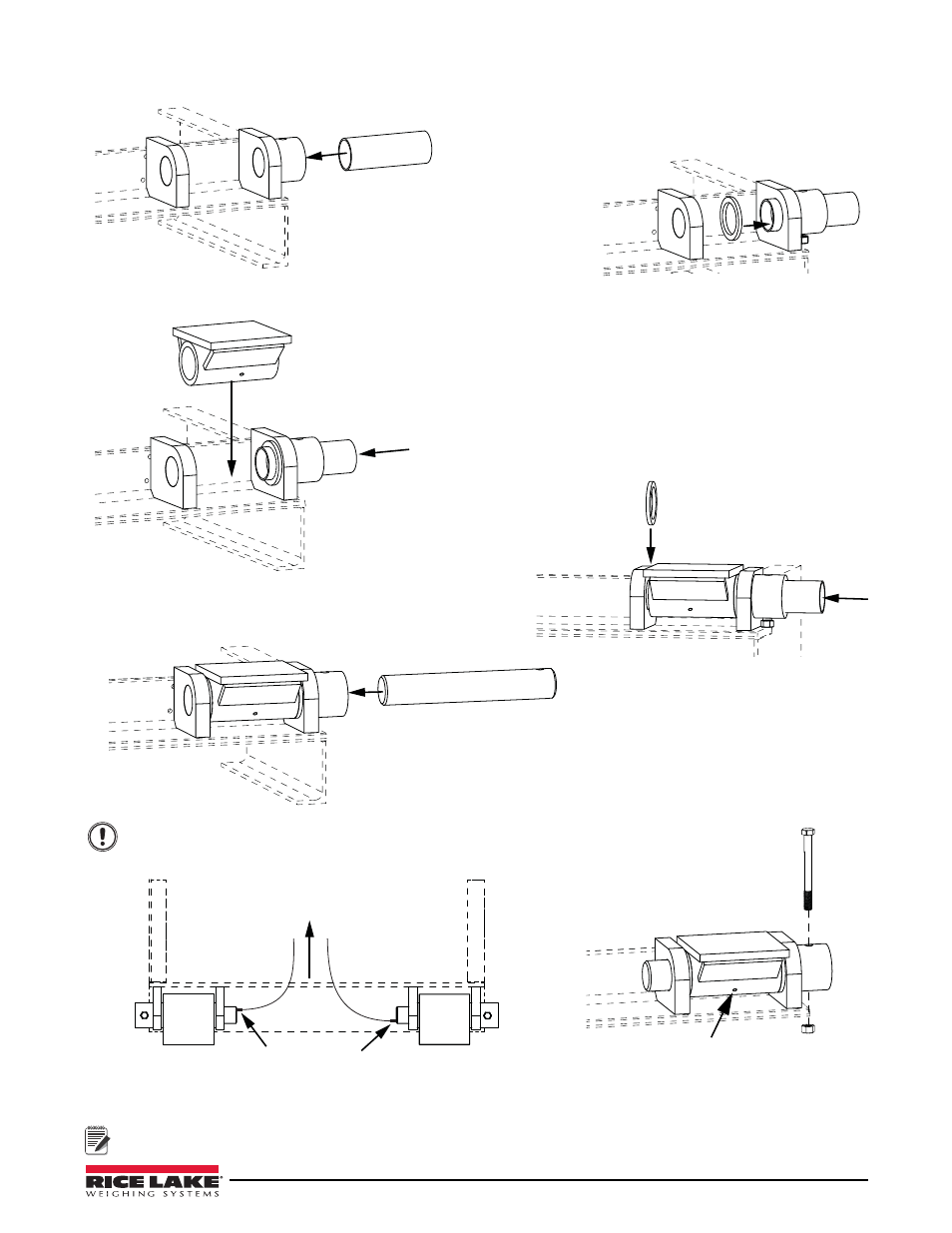

Figure 3-3. Install Load Pins Assembly
Note
The load pins have arrows indicating the downward force, or direction of load applied to register a positive
weight value. See Figure 2-2 for load pin specifications and load direction.
