Configuration and Calibration 15

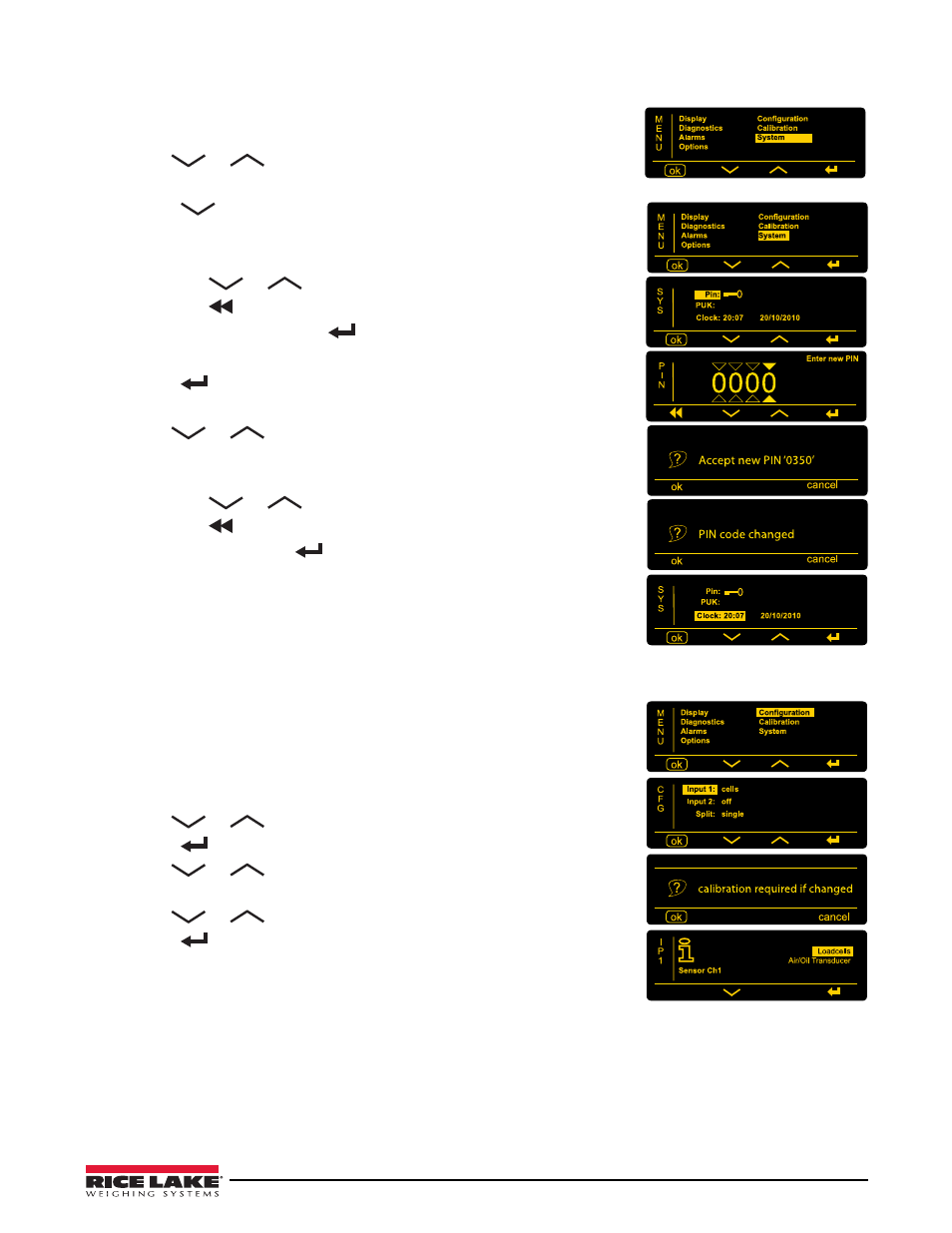

4.2.1 Initial Password Entry and Clock Setup
1. Press the power button to power on the indicator.
2. Press the Circle key to enter the menu screen.
3. Use or to scroll to System .
4. Press (OK).
5. Press to select Pin .
6. Press (OK) to display PIN input screen.
7. Enter Password or Pin code, 0 3 5 0, using the following:
• Press or to number 0-9.
• Press to move cursor left.
8. When PIN is correct, press to enter code.
9. Press (OK) to accept PIN.
10. Press to back up to MENU.
11. To Set PIN, select PIN, press (OK) and repeat 2 - 6.
12. Use or to scroll to Clock .
13. Press (OK).
14. Select the edit key to modify time (military) and date (international)
• Press or to number 0-9.
• Press to move cursor left.
15. When complete, press three times to exit and return to system setup
menu
4.2.2 Configuration of Input Channels
1. Scroll to Configuration .
2. Press (OK) .
3. Press (OK) with Input 1 selected.
4. Press (OK) again to configure the channel.
5. Use or to scroll to Air/Oil Transducer .
6. Press .
7. Use or to scroll to Input 2 .
8. Press (OK) again to configure the channel.
9. Use or to scroll to load cells.
10. Press to return to the system setup menu.
