Calibration 9
B. Test Chain Procedure

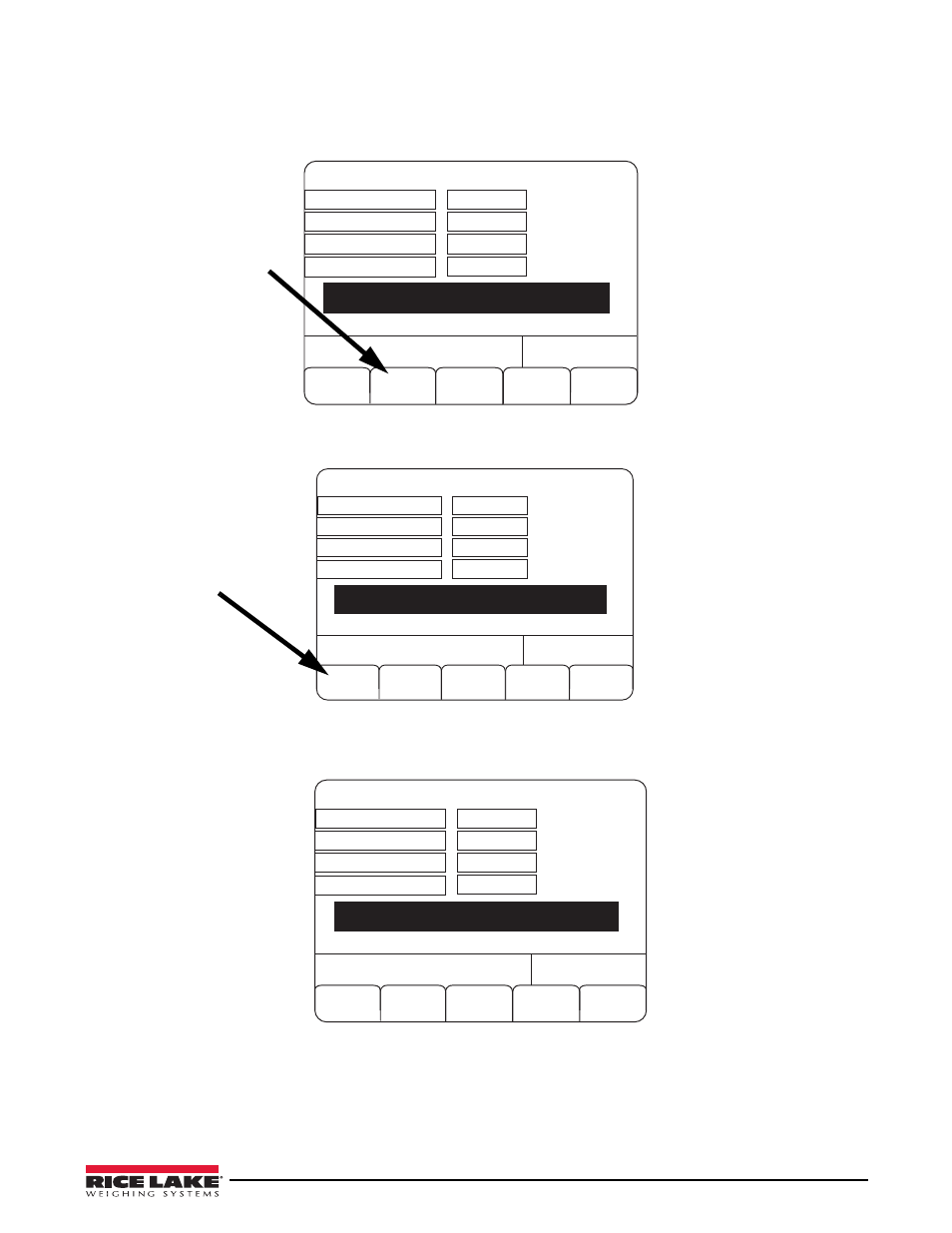

10. Place test chain on conveyor, spanning over the weighing area.
11. Press the Test Chain softkey.
5/30/2013 09:17AM
Exit =>
Test
Weights
SCALE #1
Progress
Test Time
Test Accumulator
Old Span Error %
Span Error %
6.2
0.0
2.55
0.00%
Test Chain
Figure 3-17. Test Chain Procedure
12. Press the Start softkey
5/30/2013 09:18AM
Exit => Start
SCALE #1
Progress
Test Time
Test Accumulator
Old Span Error %
Span Error %
6.2
0.00
2.55
0.00%
Figure 3-18. Start Test Chain Procedure
The Auto Cal test will run, and will show a progress screen. A prompt to enter a test chain value will
display. The test chain value is noted in lb/ft.
5/30/2013 09:35AM
End Home
SCALE #1
Progress
Test Time
Test Accumulator
Old Span Error %
Span Error %
18.8
62
0.00
Enter Test Chain Value
=> 10.0
Cancel
Figure 3-19. Enter Test Chain Value
13. Press the CLR key on the integrator to clear off the current value, enter a new test chain value using the
numeric keypad.
14. Press the enter key on the integrator to accept the next test chain value. After the test chain value is entered,
the new span error is displayed.
