6 RoughDeck HE AutoLift
Dimensions may change according to your particular site.

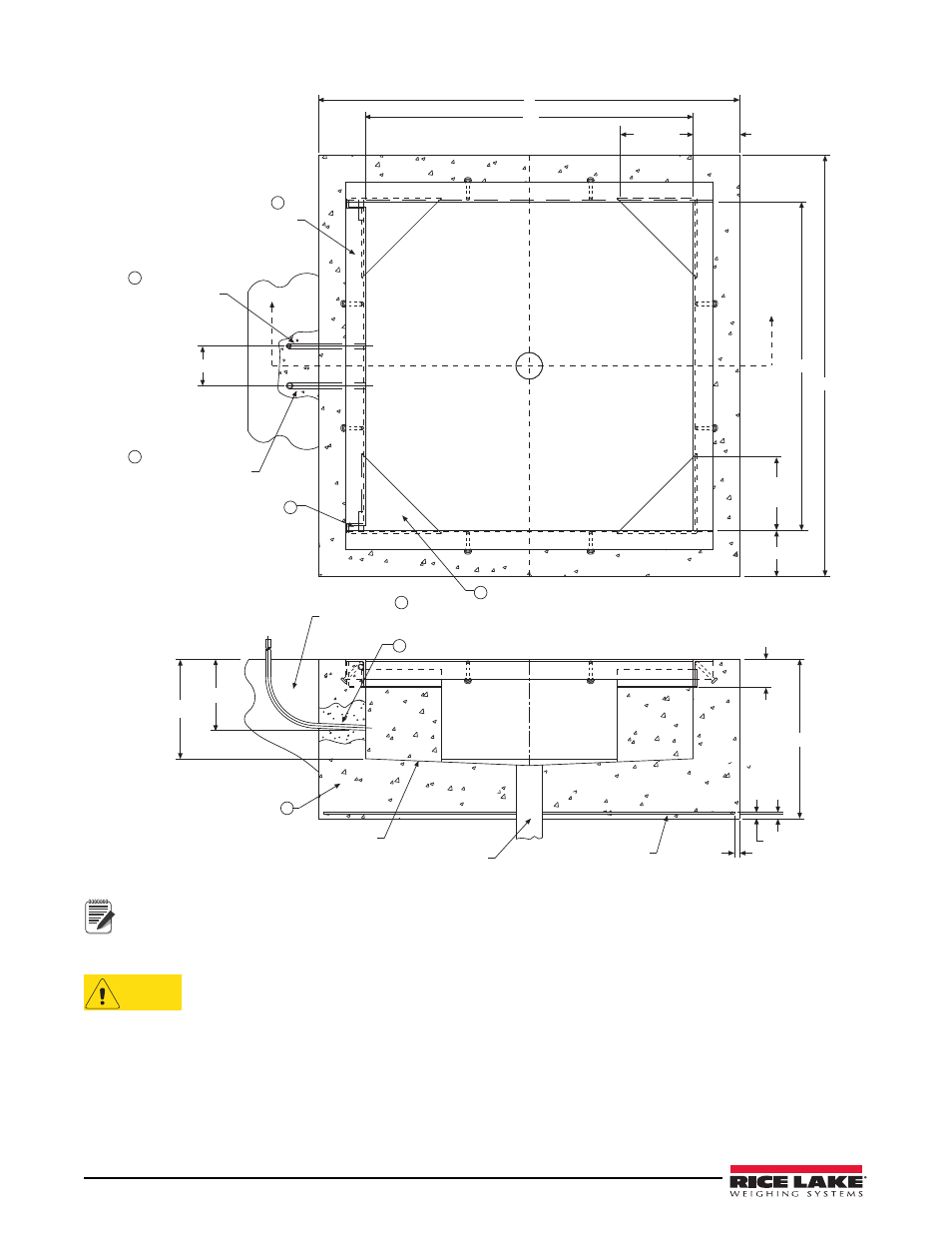

Figure 2-1. Example Pit Installation Drawing
Figure 2-1 is for reference only. This drawing is included as an example of a typical pit. Do not use this
drawing for construction purposes.
2.6 Cylinder/Platform Installation
Use the following procedure to install the cylinders and platform.
1. Fit the pivoting intermediate frame over the hinge pins (Figure 2-2, B). The intermediate frame should be
seated on the pit coping corner plates (Figure 2-2, C).
Note
24.00
.75 (REF)
.19
(REF)
7.00
(TYP) 11.00
(4)(REF)
7.00 (TYP)
11.00
(4)(REF)
(C)
D
(B)
A
DRAIN
SLOPE 1/2" PER FOOT
FROM ALL SIDES TO DRAI N 4 x 4 WIRE MESH
3/16 WIRE DIA .75 (REF)
1" STAINLESS STEEL
SCHEDULE 40 PIPE
3/4" STAINLESS STEEL
SCHEDULE 40 PIPE
6.00 (REF)
F
EXISTING FLOOR ALL AROUND
E
10.75 (REF)
A
A
CL
6
4.25
(4)(REF)
7
1
1
8
5
3
2
FOR REFERENCE
ONLY
CAUTION
