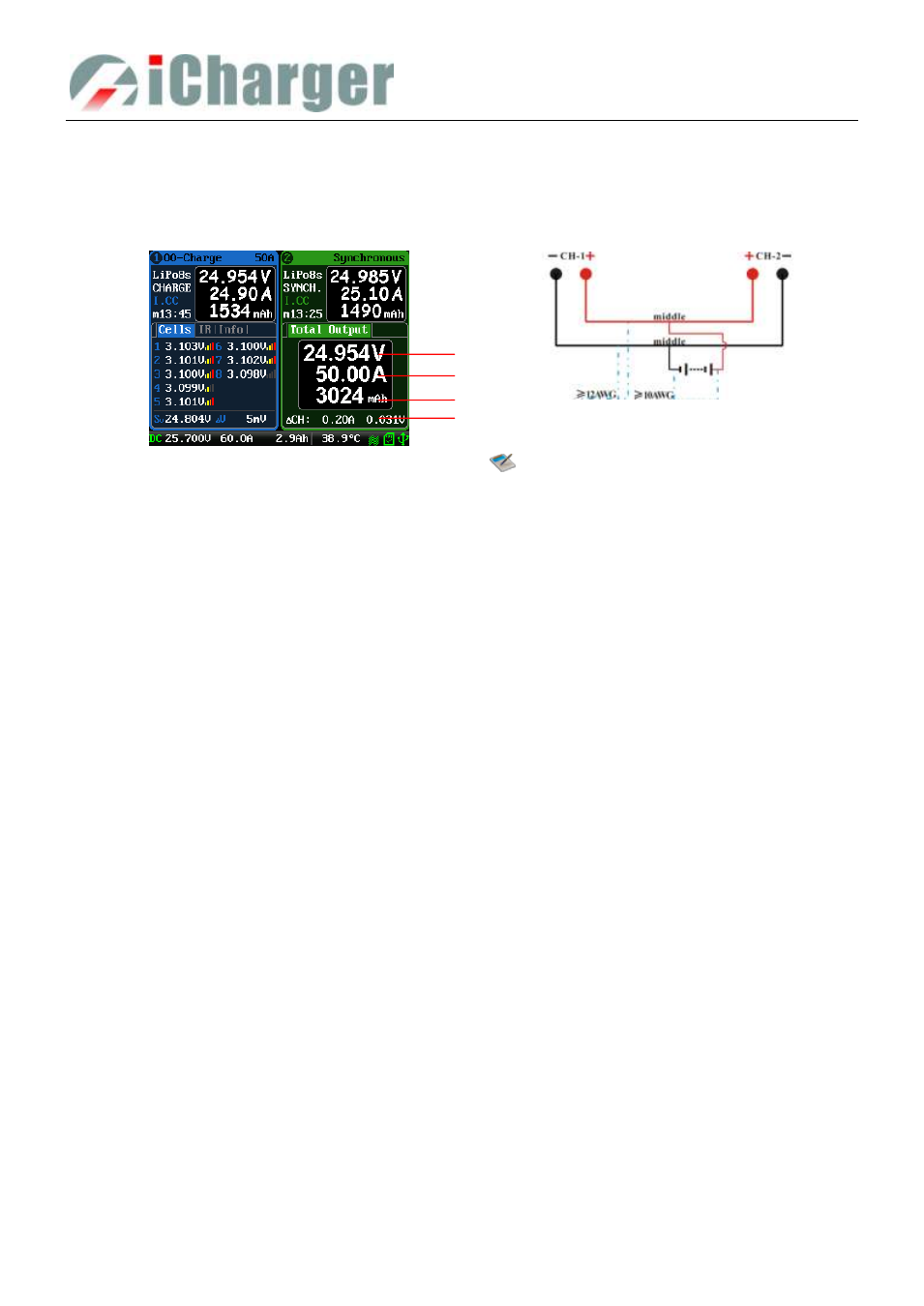

Connection for Channel Synchronous Mode
Channel Synchronous Mode: i.e. CH-1 & CH-2 are controlled at the same time to charge/discharge one battery pack. Go
to MEMORY SETUP→Option→Channel Mode to select Synchronous.
In this mode, the maximum current can be up to 50A, power capacity is the sum of both channels’ limits.
4
2
3
1
1: The total voltage of dual-channel
2: The total current of dual-channel
3: The total capacity of dual-channel
4: Channel current & voltage difference
Note: The two channels charge one battery
pack simultaneously must be connected as
shown in the left picture and the two
channels must work in synchronous mode,
otherwise the charger will be damaged.
