532

Technical data

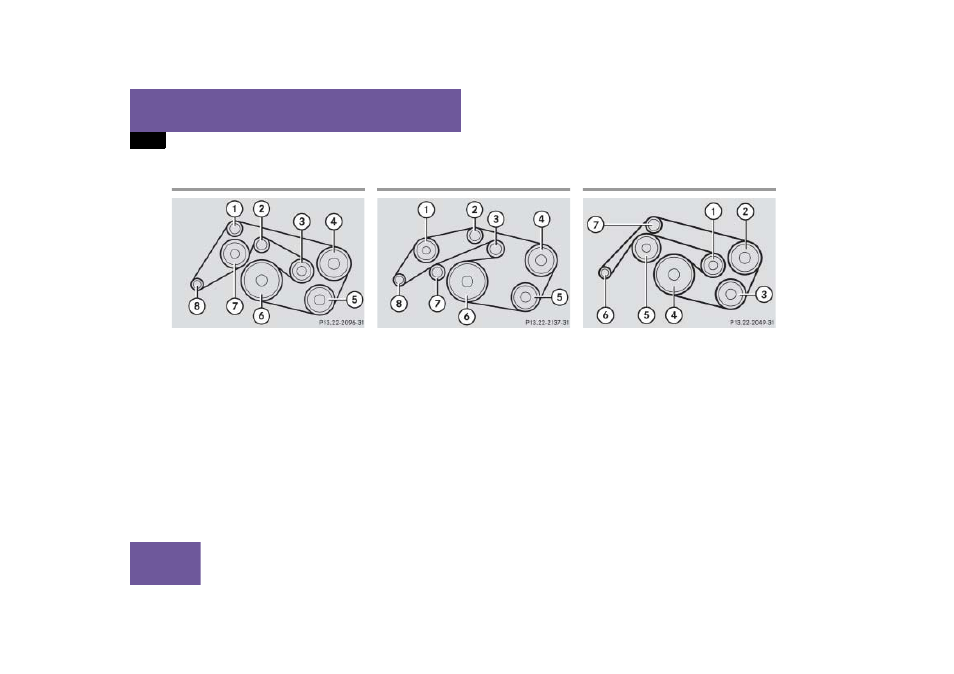

Layout of poly-V-belt drive

ML 350

1 Idler pulley
2 Idler pulley
3 Automatic belt tensioner
4 Power steering pump
5 Air conditioning compressor
6 Crankshaft
7 Coolant pump
8 Generator (alternator)

ML 320 CDI

1 Coolant pump
2 Idler pulley
3 Automatic belt tensioner
4 Power steering pump
5 Air conditioning compressor
6 Crankshaft
7 Idler pulley
8 Generator (alternator)

ML 500

1 Automatic belt tensioner
2 Power steering pump
3 Air conditioning compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
