291
Controls in detail
Loading

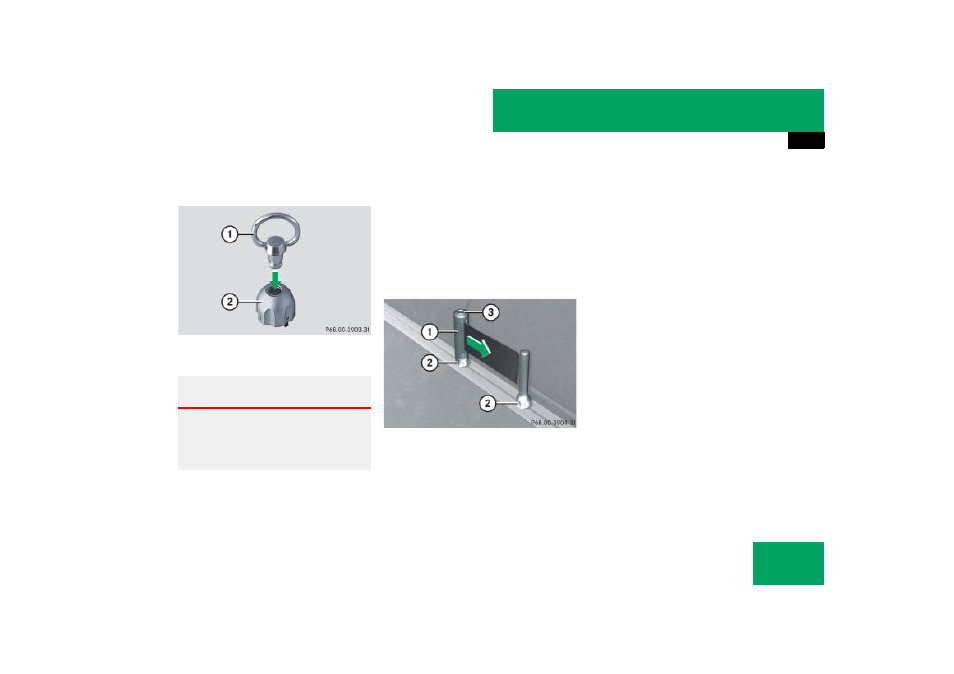

Inserting the cargo tie-down ring in the
mounting element
1 Cargo tie-down ring
2 Mounting element
̈ Turn mounting element 2 in the cargo
rail to N.
̈ Insert cargo tie-down ring 1 into
mounting element 2.
̈ Turn mounting element 2 until it en-
gages in the ‹ position.
You should be able to feel the mounting
element engage in the cargo rail.
Belt reel
1 Belt reel
2 Mounting element
3 Locking button
̈ Insert two mounting elements 2 into a
cargo rail.
̈ Turn mounting element 2 in the cargo
rail to N.
̈ Insert belt reel 1 into mounting
element 2.
̈ Turn mounting element 2 in the cargo
rail until it engages in the ‹ posi-
tion.
You should be able to feel the mounting
element engage in the cargo rail.
̈ Press locking button 3 on the belt
reel 1 and pull cargo net out in direc-
tion of arrow.
Warning!
G
The cargo tie-down rings should be subject
to equal loads. Make sure to comply with
the information provided in the loading in-
structions ( ୴ page 281).
i The belt reel can be used to tighten
light-weight loads against the side wall of the
cargo compartment, thus securing them from
slipping.
