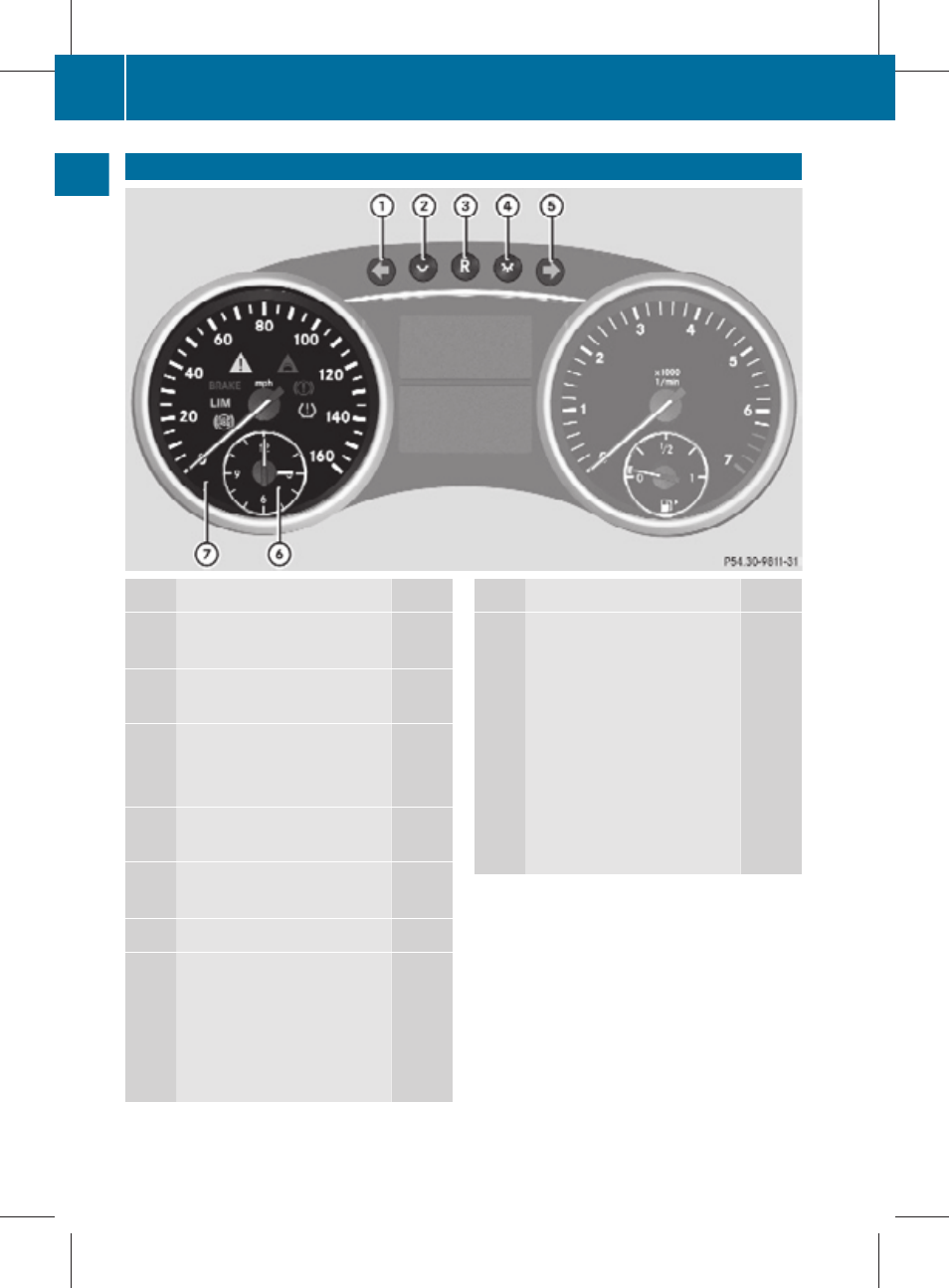

Instrument cluster
Function Page
: # Left turn signal
indicator lamp
; To dim instrument cluster
illumination
123
= Reset button for:
Trip odometer
123
Settings 131
? To brighten instrument
cluster illumination
123
A ! Right turn signal
indicator lamp
B Clock 133
C Speedometer with:
! Antilock Brake
System (ABS) indicator
lamp
300
È Variable speed limiter
indicator lamp
2
Function Page
$ Brake warning lamp,
USA only
301
d ESP
® warning lamp 303
· Distance warning
lamp
3 304
J Brake warning lamp,
Canada only
301
h Combination low tire
pressure/TPMS
malfunction telltale, USA
only
232,
306
2 Lamp without function. It illuminates when the ignition is on. It should go out when the engine is running.
3 Vehicles without Distronic: Warning lamp without function. It illuminates when the ignition is on. It should
go out when the engine is running.
