X Engage securing hook = on upper cargo
compartment lip ?.
! With the cargo compartment cover blind
installed behind the third-row seats,
disengage cargo compartment cover blind
and flip it forward. Otherwise the strap of
the securing hook could damage the cargo
compartment cover blind.
! To prevent damage, always disengage the
securing hook from upper cargo
compartment lip and lower the cargo
compartment floor before closing the
tailgate.

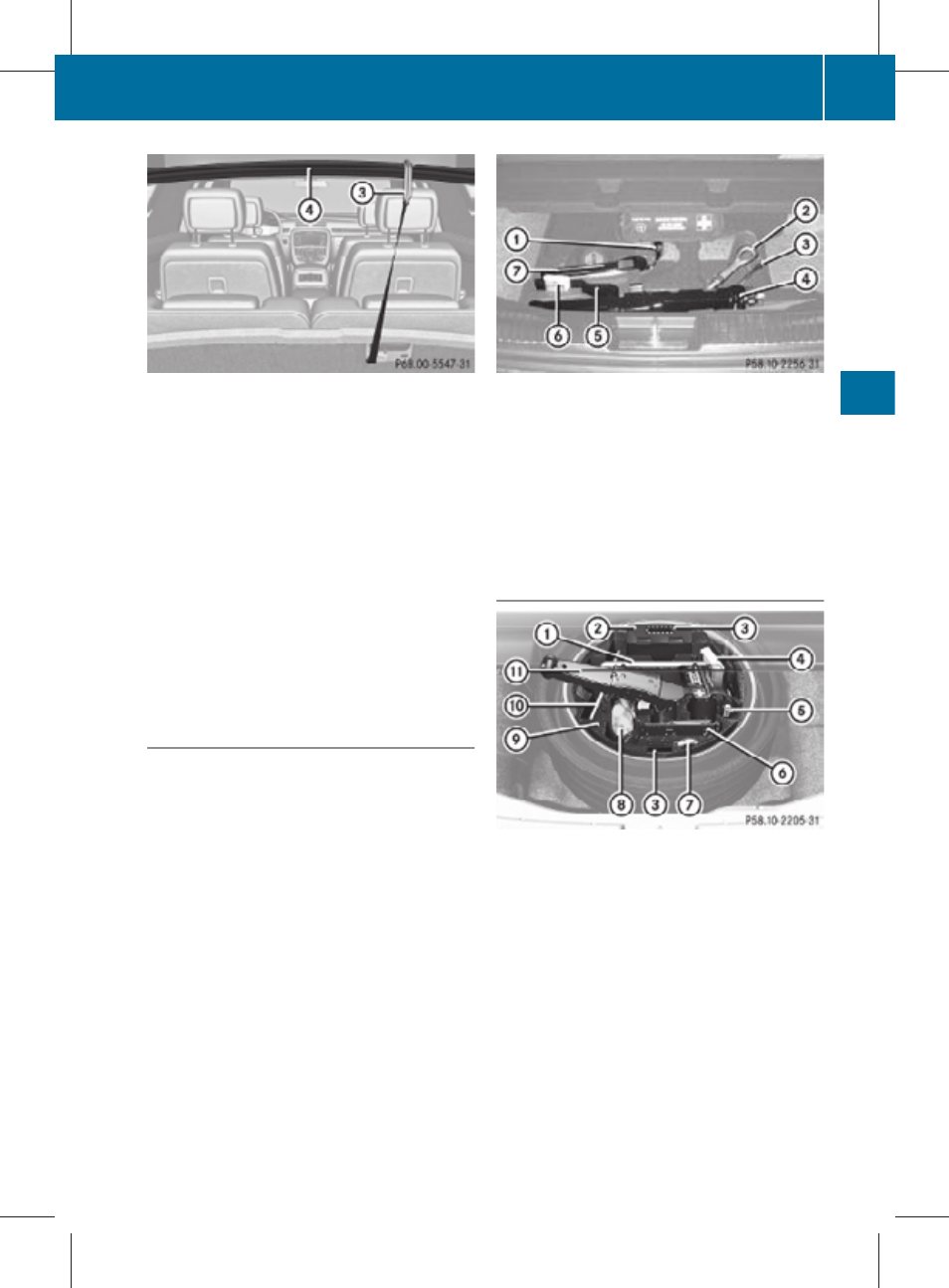

Vehicles without spare wheel
i Vehicles without spare wheel are not
factory-equipped with the tools required for
a wheel change such as a jack or a wheel
wrench. Some tools required for a wheel
change are specific to your vehicle.
Contact an authorized Mercedes-Benz
Center to obtain the tools approved for
your vehicle. The illustration shows the
vehicle retrofitted with the necessary tools
for a wheel change.
: Wheel wrench
;
Towing eye bolt
= Alignment bolt
?
Jack
A Collapsible wheel chock
B
Fuse chart
C Reversible ratchet for jack
Vehicles with spare wheel
:
Wheel wrench
; Electric air pump
=
Mounting direction indicator
? Fuse chart
A
Alignment bolt
B Collapsible wheel chock
C
Towing eye bolt
D Spare wheel bolts
E
Storage well casing
F Reversible ratchet for jack
G
Jack
Where will I find ...?
