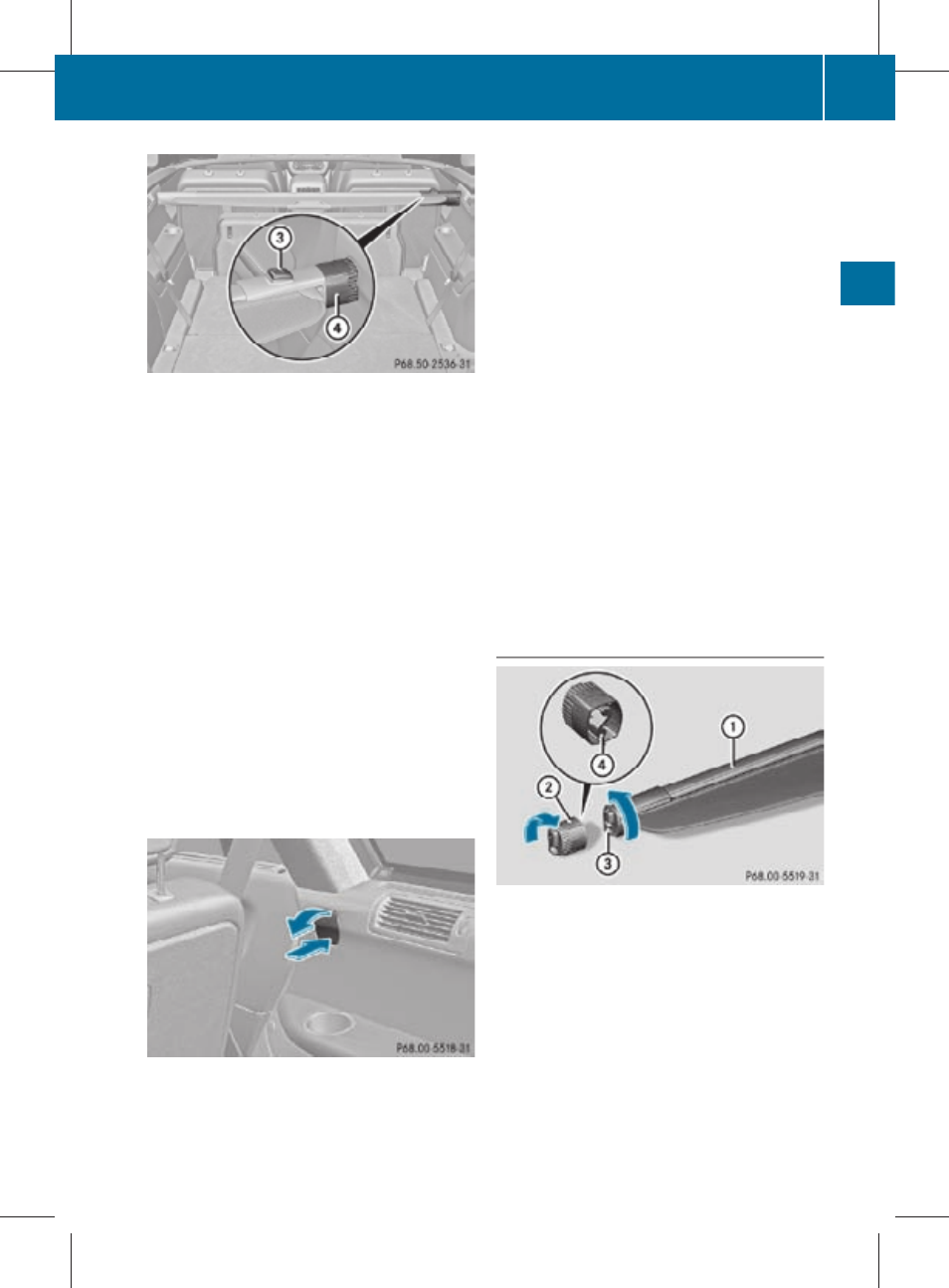

Blind installed behind second-row seats
X Removing: Roll up cargo compartment
cover blind.
X Push release button =.
X Pull cargo compartment cover blind ? to
the left.
X Remove cargo compartment cover blind.
X Installing: For installation behind second
row seats, install the blind extensions
(
Y page 195).
! For installation behind third-row seats,
the blind extensions must not be installed.
Otherwise, the cargo compartment cover
blind could be damaged.
X Remove the mount covers in the side trims
of the third-row seats when installing the
cargo compartment cover blind behind the
second-row seats.
Mount cover in the side trims of the third-row seats
X Press on the mount cover at its lower edge
as indicated by arrow.
The mount cover’s upper edge flips up.
X Remove mount cover by pulling its upper
edge out of side trim in direction of arrow.
i To avoid loss of the mount covers, keep
them in a safe place while not in use, e.g.
the glove box.
X Make sure release button = faces up and
the handle : is to the rear before inserting
the cargo compartment cover blind.
X Place left side of cargo compartment cover
blind in left mount.
X Position right side of cargo compartment
cover blind over right mount.
X Press release button = and guide cargo
compartment cover blind into mount.
X Make sure cargo compartment cover blind
is securely fastened.
Extending cargo compartment blind
X Position blind extension ; over cargo
compartment cover blind :.
Guide pins ? must point directly at
guidings =.
X Turn blind extension ; and cargo
compartment cover blind : in opposite
directions as indicated by the arrows.
Guide pins ? must engage in guidings =.
Loading and storing
