Servicing the Transmission
The Transmission should also be cleaned and serviced periodically. All gears and shafts should be closely
inspected for wear and replaced if necessary. Always use a high quality grease or lubricant to prevent
premature wear and/or failure.

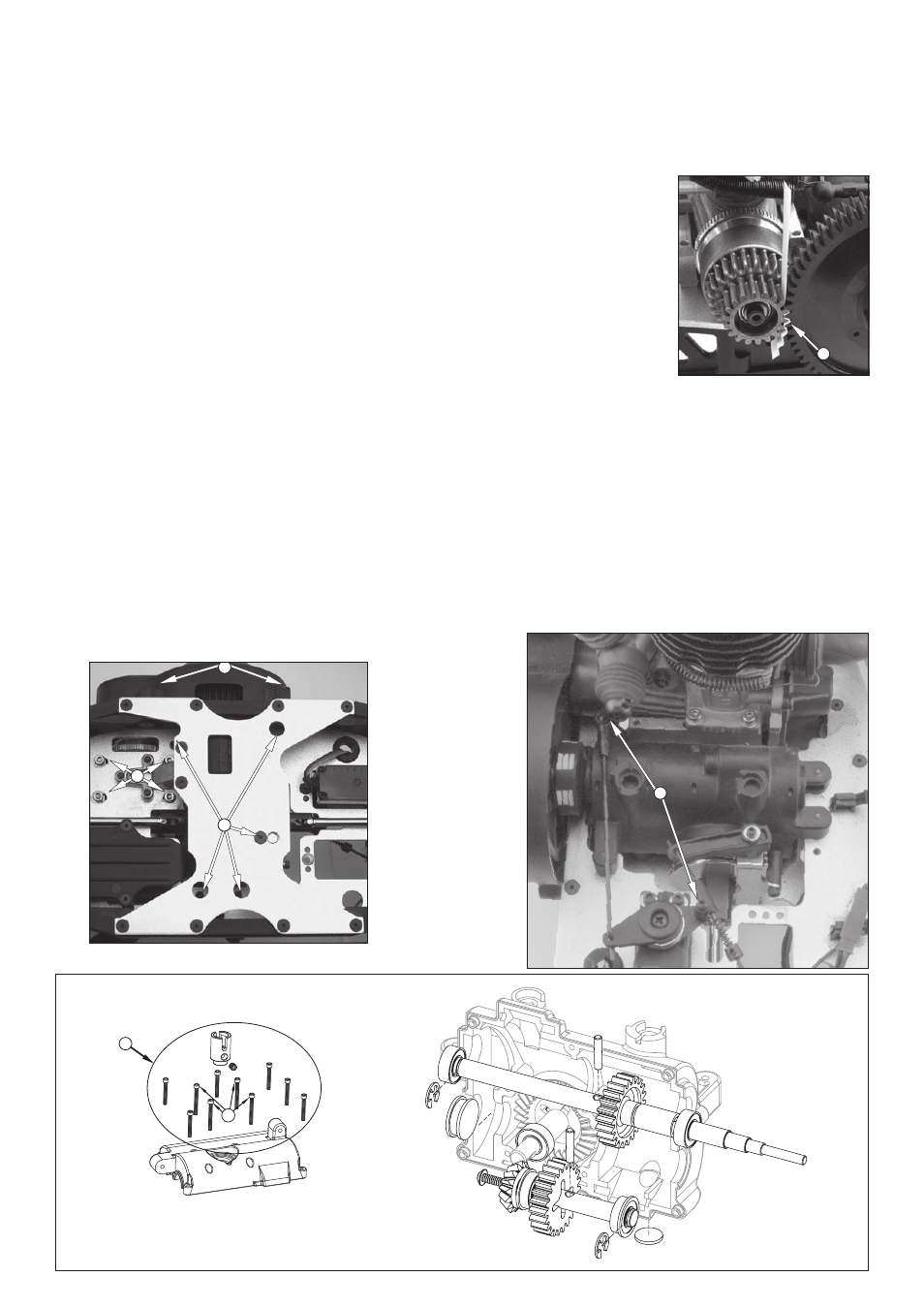

Removing the Transmission
1. Remove the gear cover.
2. Remove the throttle linkage from the carburetor and the brake linkage from
the servo arm.
3. Loosen the four motor mount screws (bottom of the chassis) and slide the
motor back.
4. Remove 2-speed spur gears.
5. Remove the five transmission mounting screws and lift the transmission out.
6. Remove the outdrive and ten 5/64” cap head screws. Remove the
transmission case half.
7. Regrease the gears and shafts, inspecting each for wear.
8. Replace any worn or failed gears.
9. Wipe out the inside of the gear case, removing any debris, old grease and foreign matter.
10. Check all ball bearings for free movement cleaning or replacing as necessary.
11. Reinstall gears on the shafts lubing with LOSA3066 or LOSA99203 Losi Assembly Grease.
12. Reassemble the transmission lubricating liberally with LOSA3066 or LOSA99203 or a similar
high-grade grease.
13. Make sure the setscrews in the outdrive cups are tightened (a locking compound is highly
suggested).
14. Install the transmission in the chassis; reset the gear mesh by using a small piece of paper between
the pinion and spur gears, applying pressure while retightening the engine. Reconnect all linkages
and connections as necessary.
Page 12
14
3
5
1
6
*
2
Note: These four screws are
longer 2-56 x 3/4”
