BAG C (Continued)
2 1

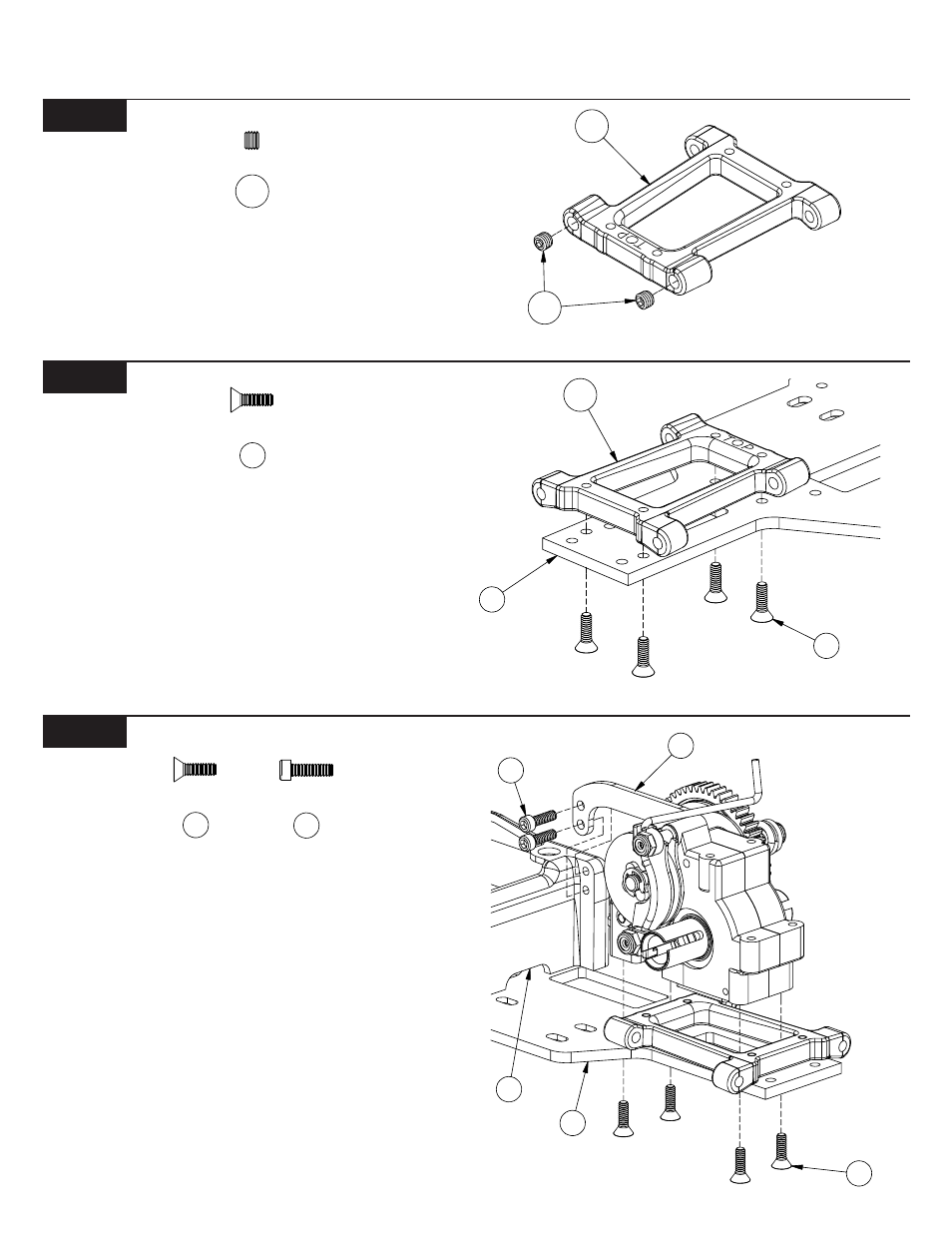

Figure 48
Step 65. Thread a 8-32 x 1/8" set screw (105) into each of the two holes
in the front of the rear pivot block (104). Thread the set screws (104)
into the holes until the ends of the set screws just bottom out on the
step indside the holes.
Step 66. Position the rear pivot block (104) on the rear of the chassis
(19) with the set screws (105) forward, and the word 'TOP" visible at
the front of the pivot block. Attach the rear pivot block (104) to the
chassis (19) with four 4-40 x 3/8" flat head screws (20).
Figure 49
105
Figure 48
Figure 49
20
Figure 50
Step 67. Place the gearbox assembly onto the rear of the chassis,
aligning the bottom of the gearbox halves (82)(83) with the rectangu-
lar hole in the chassis (19). Attach the gearbox assembly to the rear of
the chassis (19) with four 4-40 x 3/8" flat head screws (20).
Step 68. Secure the gearbox brace (88) to the top chassis brace (29)
with two 4-40 x 3/8" cap head screws (17).
20 17
Figure 50
