BAG C (Continued)
1 9

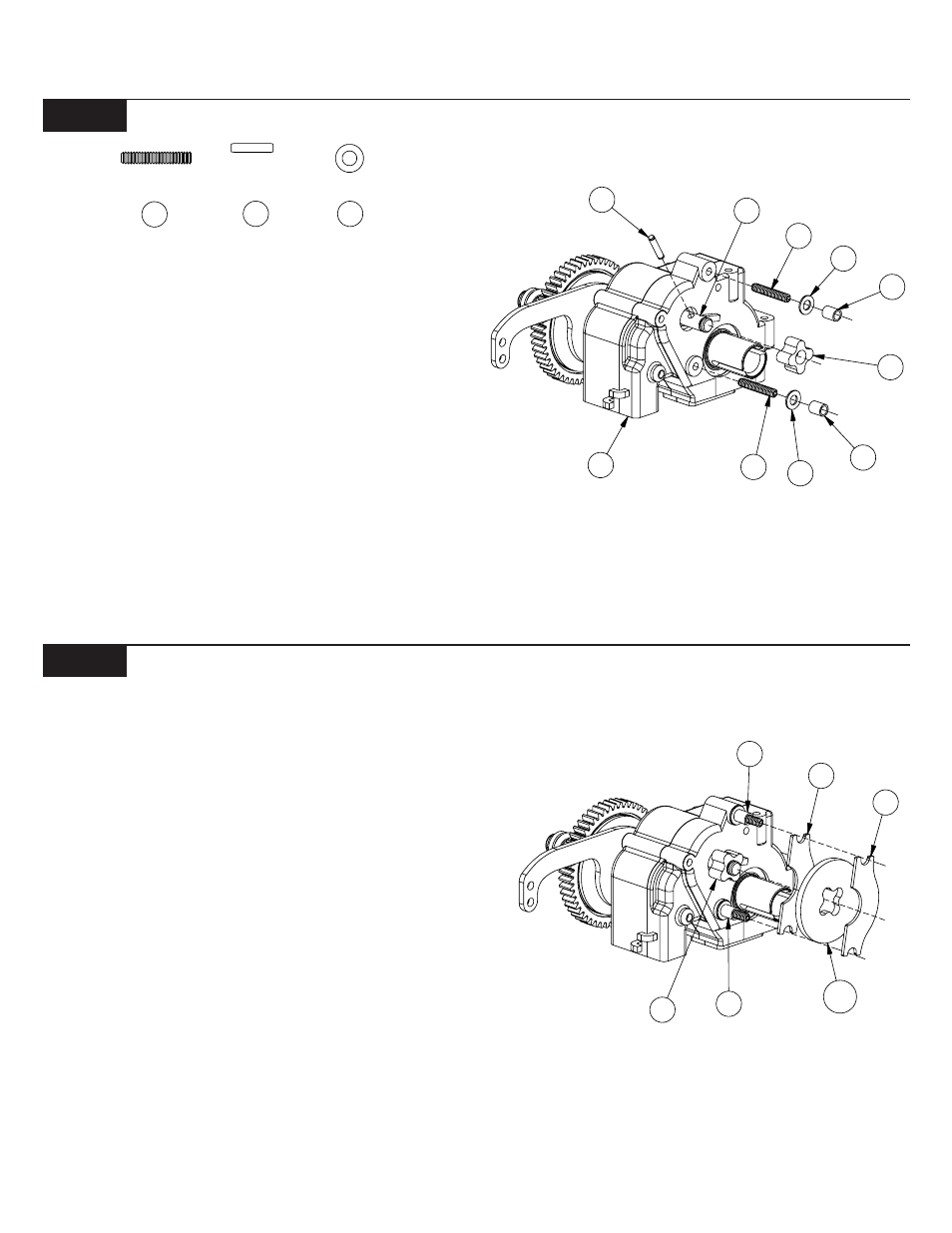

Figure 44
Step 56. Place one of the brake caliper plates (99) over the two brake
sleeves (97).
Step 57. Slide the brake rotor (100) onto the brake hub (98).
Step 58. Place the other brake caliper plate (99) over the brake sleeves
(97).
Figure 45
Step 52. Press the .078" x 3/8" spirol pin (78) into the hole in the end of
the brake shaft (77) so that it extends evenly from both sides of the
shaft (77).
Step 53. Slide the brake hub (98) over the brake shaft (77). Align the
groove in the brake hub (98) with the pin (78) and slide the hub (98)
over the pin (78).
Step 54. Thread the two 4-40 x 5/8" set screws (27) all the way into
each of the two brake caliper mounting holes in the left gearbox half
(83).
Step 55. Slip a 1/4" x .020 washer (96) and a brake sleeve (97) over each
of the two 4-40 x 5/8" set screws (27).
Figure 44
78 27 96
Figure 45
78
27
96
97
98
97
96
27
77
83
99
100
99
97
98
97
