BAG C (Continued)
1 6
Figure 38

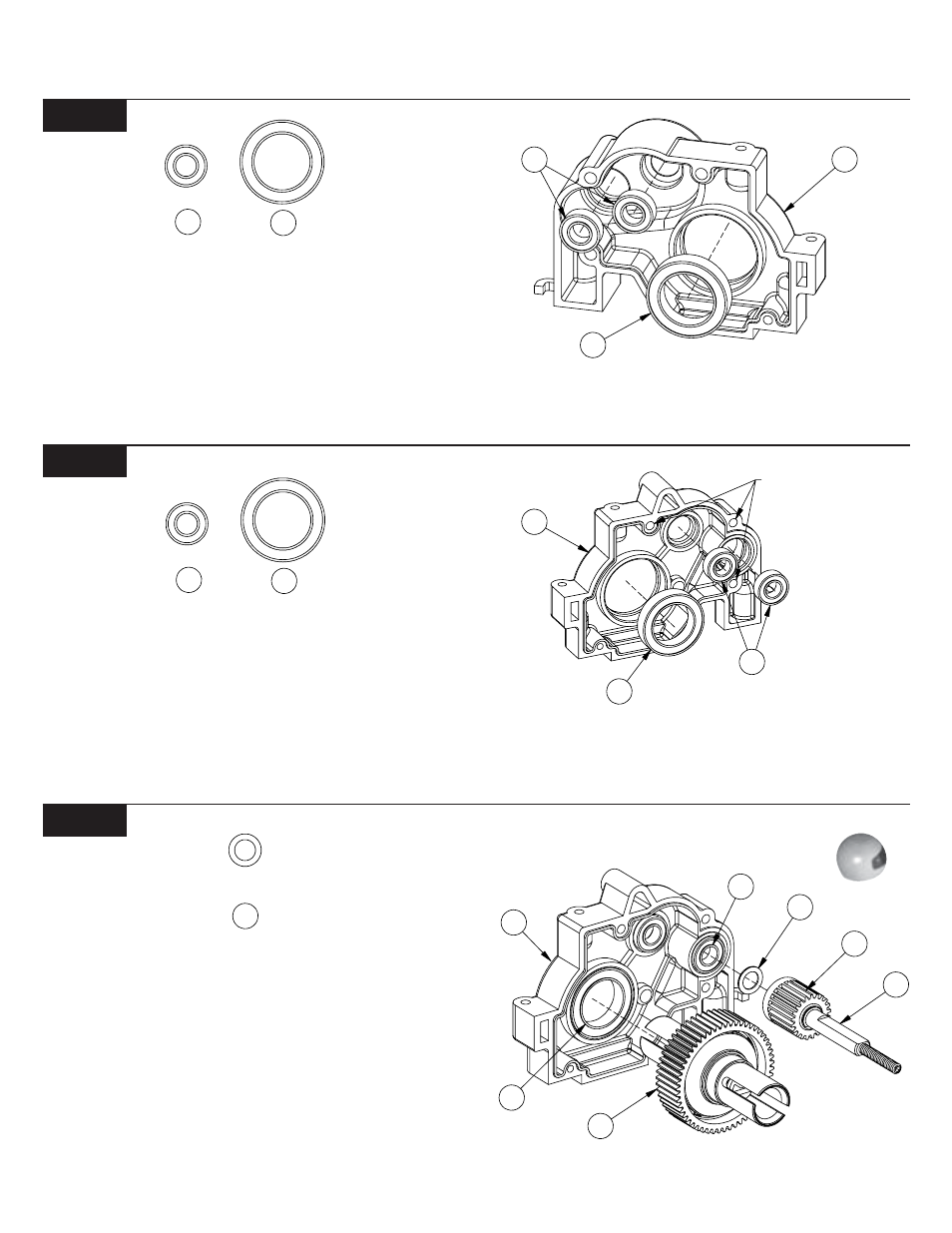

Step 32. Use the short, 4-40 thread-cutting screw included in the
wrench bag to pre-tap the three holes noted in Figure 39. Thread the
screw all the way into and out of each hole.
Step 33. Insert two 3/16" x 3/8" sealed bearing (80) into the two top
bearing seats of the left gearbox half (83).
Step 34. Insert a 1/2" x 3/4" bearing (81) into the lower
bearing seat of the left gearbox half (83).
Figure 39
Figure 39
Figure 38
Step 30. Insert two 3/16" x 3/8" sealed bearing (80) into the two top
bearing seats of the right gearbox half (82).
*NOTE: If any of the supplied gearbox bearings only have one
Teflon™ seal(colored, woven looking) in it, position the seal to the
outside of the gearbox half.
Step 31. Insert a 1/2" x 3/4" bearing (81) into the lower
bearing seat of the right gearbox half (82).
80 81
80 81
Figure 40
Step 35. Slip the 3/16" x .015 shim (84) over the slipper shaft (73) up
against the top gear (75).
Step 36. Insert the slipper shaft (73) into the forward-most bearing
(80) in the left gearbox half (83).
Step 37. Insert the differential assembly into the 1/2" x 3/4" bearing
(81) in the right gearbox half (82). Insert the differential diff nut carrier
(57) side first.
*NOTE: be sure the head of the diff adjusting screw faces the
right side of the gearbox. This will allow easy adjustment while
running your truck.
84
Figure 40
80 82
81
80
81
83
PRE-TAP
THESE HOLES
