Operating Instructions for 482 “Matinee” Power Recliners
Plug in the Power Transformer(s). Make sure there is enough slack in the cord run-
ning from the power recliner to the outlet to allow for reclining. Never
stretch or strain a cord.
Power Recliner Operation
The power recliner is operated by the Inside Power Activator Lever, located
beside the seat (F IGURE 1).
• Pull back the Inside Power Activator Lever to recline.
• Push the Inside Power Activator Lever forward to return to the upright
position.
- To reduce the risk of injur y:
• Do not attempt to disassemble or ser vice the pump or motor. No
ser viceable parts are inside. Contact your La-Z-Boy ® dealer for
ser vice information.
Troubleshooting for 482 “Matinee” Power Recliners
There are no user maintenance or repair requirements. If the power recliner
does not work:
1. Make sure the Power Transformer is plugged into an electrical outlet.
2. Make sure the electrical outlet is working. For example, make sure there are
no blown fuses or tripped circuit breakers.
3. Make sure the connectors are secured; refer to the Assembly Instructions.
4. Make sure the electrical cords are not crimped or pinched. Make sure the
electric cord or plug is not damaged.
If the power recliner still does not operate properly, contact your dealer for
instructions on returning the recliner for examination and repair. Except for
replacement of the Power Transformer, never attempt to make any repairs or
adjustments yourself.
Power Transfor mer Replacement
If the Power Transformer must be replaced:
1. Unplug the Power Transformer from the electrical outlet.
2. Locate the Power Transformer connection and remove the Transformer Cord
from the receptacle.
3. Connect the Transformer Cord two prong connector to the receptacle on
the new Power Transformer; refer to the Assembly Instructions. Make sure
the connection is secured with no gaps.
482 “Matinee” Home Theater
Troubleshooting:
WARNING
POWER TRANSFORMER SPECIFICATIONS FOR 482 “MATINEE” POWER RECLINERS:
Input: AC 110/120V 50/60 Hz 80 W
Output: AC 23V 2.7A
- To reduce the risk of serious injur y:
• Sit down in the unit slowly. To avoid tip over, do not throw your weight
against the back of the unit. Move the unit into or out of the reclining
position slowly, making sure that no children or pets are in close
proximity.
• To safely exit the unit and prevent a tripping hazard bring the back
upright and close the legrest.
• Keep hands, arms and body parts away from the open area between
a reclined back and an upright back on a motion sofa or modular.
This area must remain clear at all times to provide unobstructed
movement and prevent injur y that could occur when a reclined back
is returning toward the upright position.
WARNING
482 “Matinee” Home Theater
Operating Instructions:

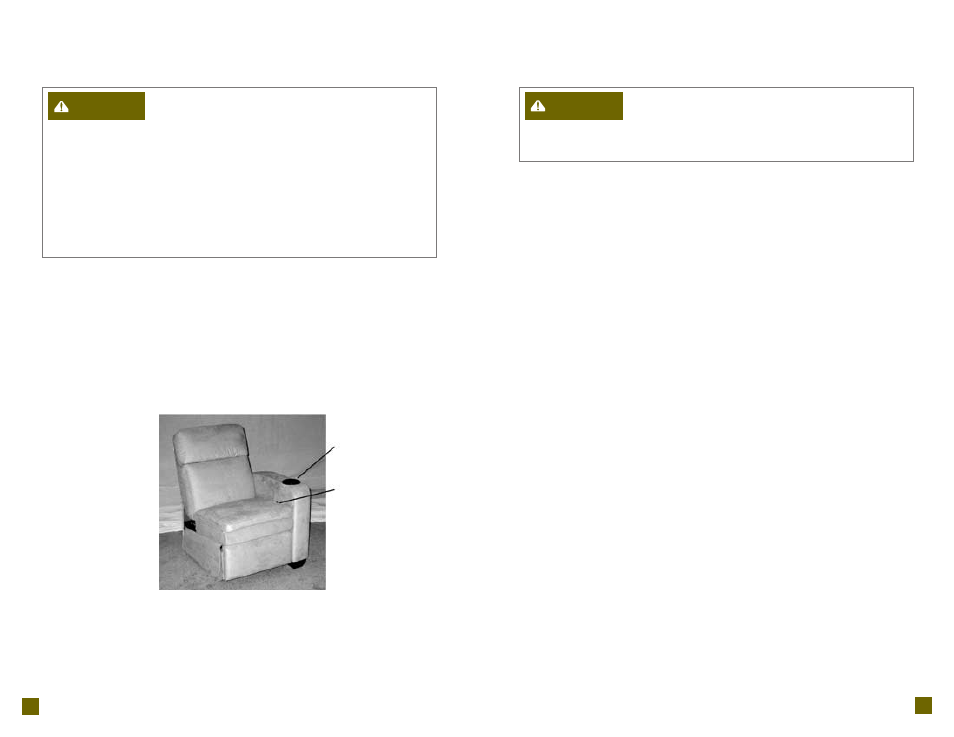

F IGURE 1
Cup
Holder
Inside
Power
Activator
Lever
