La-Z-Time ® Home Theater
Legrest Tension Adjustment Instructions:
- To reduce the risk of injur y:
• Use of this product requires adequate strength to bring the back up
right and close the legrest. Selecting the maximum tension settings
could make bringing the back upright and closing the legrest difficult.
• To safely exit the unit and prevent a tripping hazard bring the back
upright and close the legrest.
Continue with the following tension adjustments after product assembly is complete.
Legrest Tension Adjustment Instructions
1. Stand beside the unoccupied unit and pull the release handle to extend the
legrest. Make sure not to lean or put pressure on the extended legrest, as it will
close. From under the legrest, lift the mechanism cover to access the tension
adjustment wheels. The wheels are located toward the front of the mechanism,
one on each side (F IGURE 1). Each wheel has three adjustment settings.
2. The legrest tension adjustment wheels are factor y set in the center position
(F IGURE 2). The center position provides average legrest tension and support.
3. A taller or heavier person may choose to increase the amount of legrest
tension for added leg support. To increase the amount of legrest tension, turn
the adustment wheels up and toward the front of the recliner (F IGURE 3).
Both legrest tension adjustment wheels must be set in the same position.
4. A smaller person may choose to decrease the amount of legrest tension for
easier closing of the legrest. To decrease the amount of legrest tension, turn
the adustment wheels down and toward the back of the recliner (F IGURE 4).
Both legrest tension adjustment wheels must be set in the same position.
5. Close the legrest. Test the new legrest tension setting and make adjustments
if needed.
6. Repeat these instructions to customize each reclining seat in your home
theater group.
WARNING
19 18

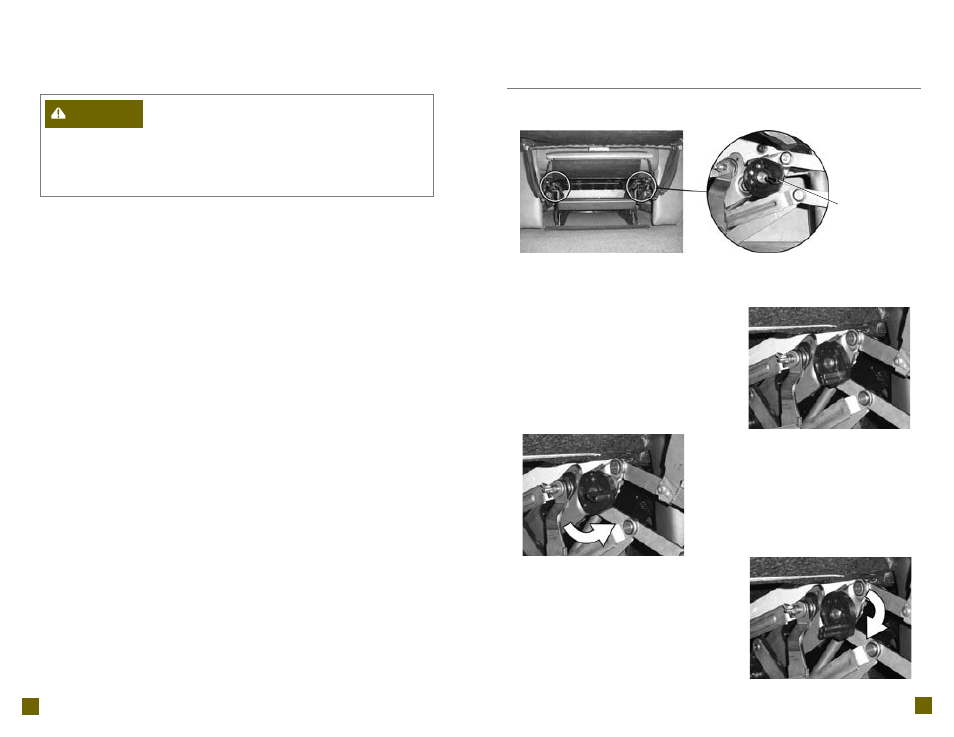

F IGURE 1
F IGURE 2
La-Z-Time ® Home Theater
Legrest Tension Adjustment Details:
Adjustment wheel location, one on each side
Average Legrest Tension
F IGURE 3
Maximum Legrest Tension
F IGURE 4
Minimum Legrest Tension
Legrest
Tension
Adjustment
Wheel
