10. Maintenance and Prevention KISS 2U Short V2 – User’s Guide (V1.00)
10.
Maintenance and Prevention
Equipment from Kontron Europe requires only minimum servicing and maintenance for problem-free operation.
❏ For light soiling, clean the KISS 2U Short V2 with a dry cloth.
❏ Stubborn dirt should be removed using a mild detergent and a soft cloth.
❏ Clean the filter mat regularly (see section 10.2 “Cleaning the Filter Mat”).
10.1. Replacing System Fans
The operation of the KISS 2U Short V2 platform is permitted only with a functional fan slide-in module.
Defective components may be replaced only by Kontron original spare parts.
❏ part number of the fan slide-in module: 1050-8442
Important instructions!
The fan slide-in module is changeable while the system is powered-up. This maintenance may only be
carried out by qualified personnel familiar with the associated dangers.
To replace the fan slide-in module, proceed as follows:
1. Remove the air filter mat as described in the section 10.2 “Cleaning the Filter Mat” (step 1 to 3) and put it aside for
later use.
2.
Loosen the two knurled screws of the fan slide-in module (Fig. 34, pos. 1)
3. Pull-out the fan slide-in module to disconnect it from the internal fan control socket (Fig. 35, pos. 3).
4. Lift the slide-in module up in the arrow direction to remove it from the fan compartment (see Fig. 35).

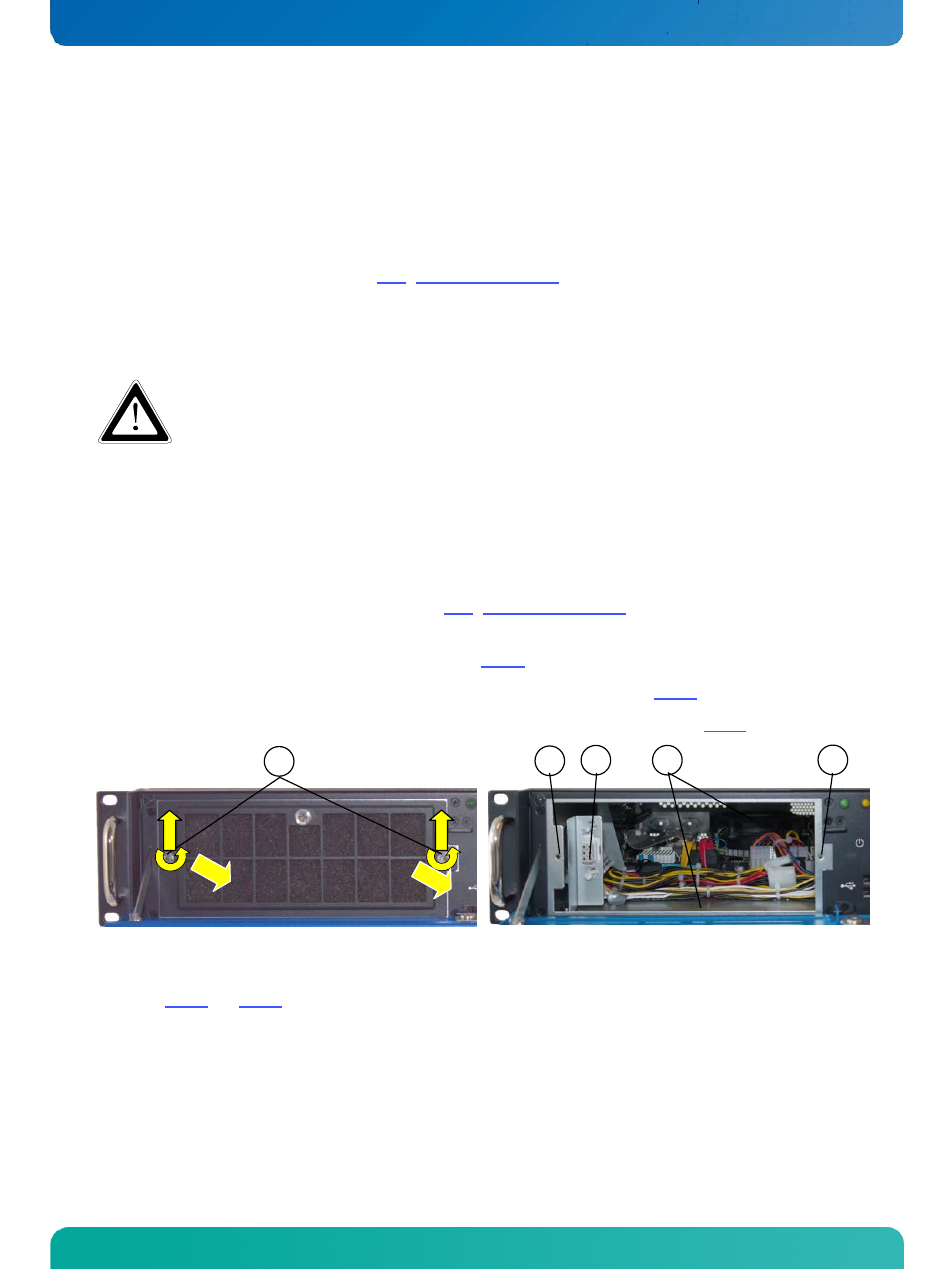

Fig. 34: Detail: removing the fan slide-in module Fig. 35: Detail: Fan compartment (without fan slide-in module)
Legend for Fig. 34 and Fig. 35:
1 Fan slide-in module with two knurled screws
2 Threaded holes (chassis frame) for securing the fan
slide-in module
3 Socket for fan power supply and control
4 Fan compartment
3 4 2 2 1
1
2
1
2
