8. Installation and Removal KISS 2U Short V2 – User’s Guide (V1.00)
8.2.1.2.
Installing/Removing Expansion Cards via PCI or PCIe Riser Card
In order to install/remove expansion cards via PCI or PCIe riser card perform the following steps:
1. Open the unit as described in the subsection 8.2.1 (step 1 to 5).
1
3 2

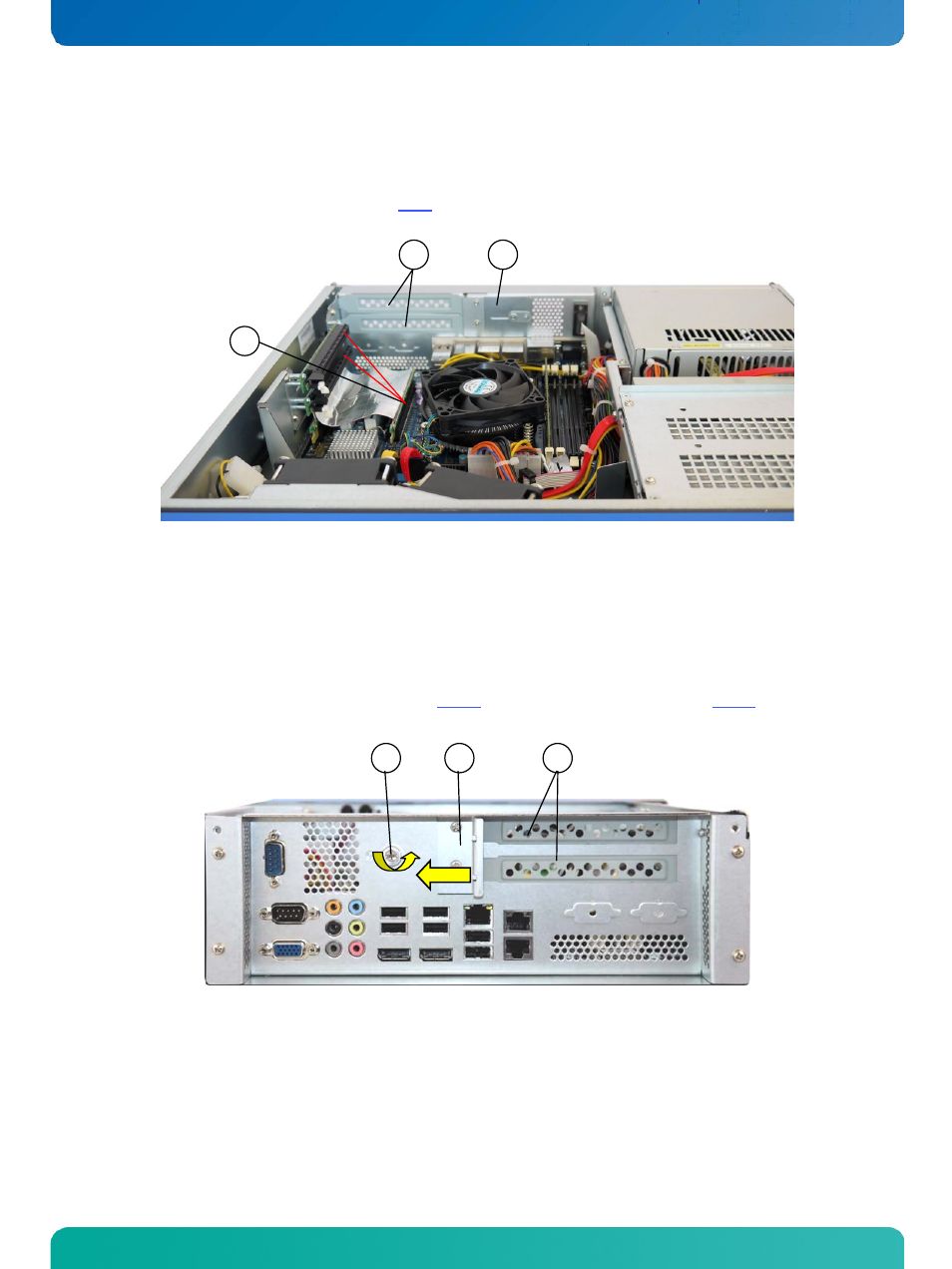

Fig. 30: Detail inside of KISS 2U Short V2 with KTQ67/Flex (system configuration with PCIe riser card)
1 PCIe riser card
2 Slide bracker
3 Slot brackets (the card slot brackets if
expansion cards are installed)
max. card length: 230 mm)
2. Loosen (turn 1/2 to the left) the fastening screws (Fig. 31, pos. 1) to unlock the slide bracket (Fig. 31, pos. 2). The
slide bracket is used to secure in place the slot bracket or the card slot bracket.
1 2 3
Fig. 31: Detail rear side of KISS 2U Short V2 with KTQ67/Flex (system configuration with PCIe riser card)
1 Fastening screw of the slide
bracket
2 Slide bracket
3 Slot bracket
3. Move the slide bracket to the left. The slot brackets are disengaged now and can be removed from the system.
