7. Product Description KISS 2U Short V2 – User’s Guide (V1.00)
7.2. Rear Side
On the rear side, depending on the ordered KISS 2U Short V2 platform configuration, are available the external interfaces
of the integrated motherboard, the additional interfaces, the power supply unit and the air exhaust openings.
The order or the number of the KISS 2U Short V2 platform interfaces can be different depending on the
device configuration.
7.2.1. System Configuration with Motherboard and Low-Profile Cards
11 9
5
8 7 6 1
4
2 3 7 7
6
10

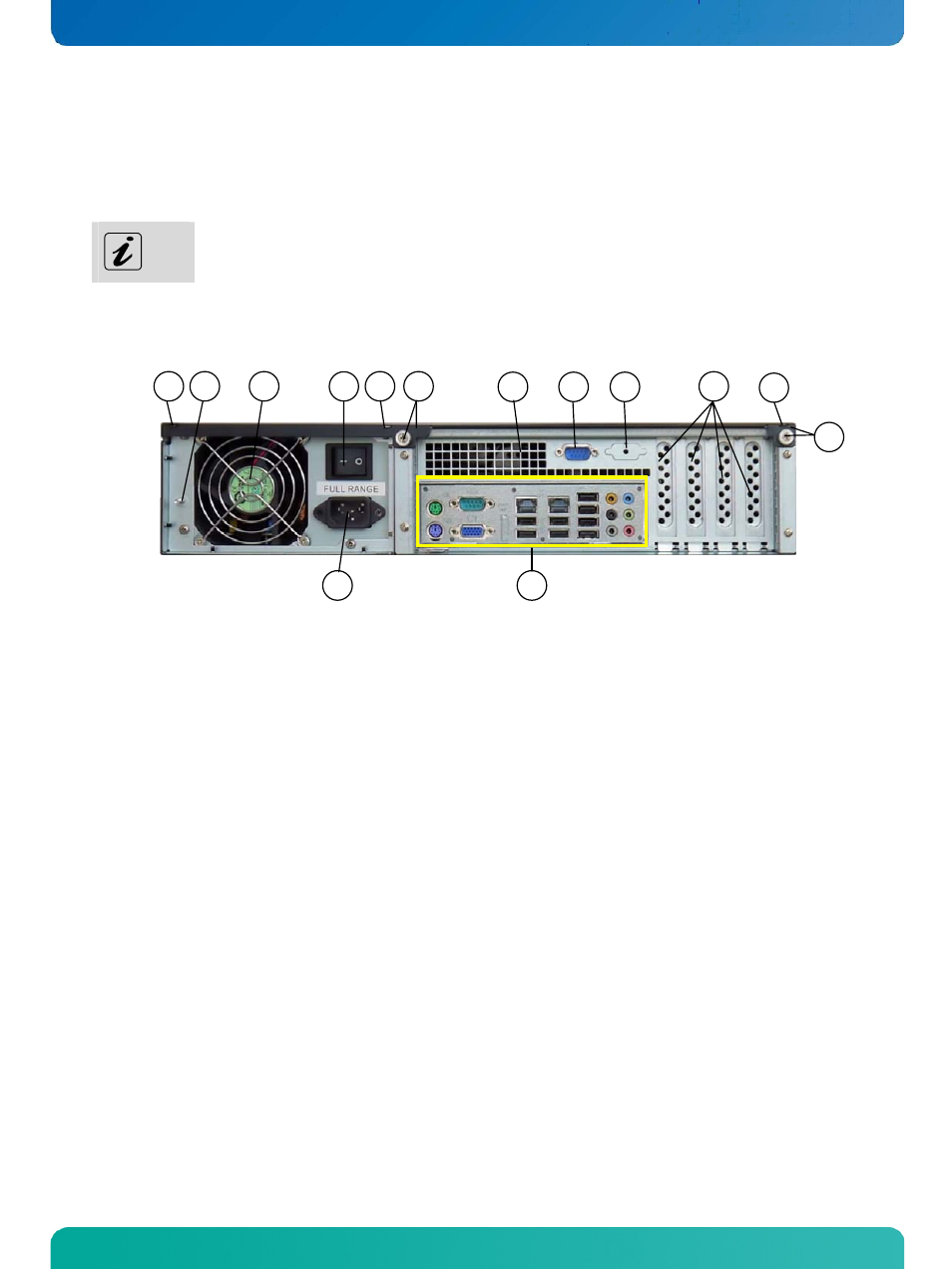

Fig. 15: Rear side of the KISS 2U Short V2 (shown as a configuration for low profile cards)
1 Grounding stud
2 Fan of the PSU (AC)
3 ON/OFF switch of the PSU
4 AC-power plug
5 External interfaces of the installed motherboard
6 Cover latch with captive knurled screws
7 Centring latches and centring slots
8 Free expansion slots
9 Cut-out for optional (customer-specific)
interface routed to the rear (9-pin D-SUB type)
10 Onboard serial interface routed to the rear side
(RS232)
11 Air exhaust openings
