7. Product Description

KISS 2U Short V2 – User’s Guide (V1.00)

KISS 2U Short V2 with Riser Card

8

7

11

3

4

1

2

1

5

12

6

6

6

10

9

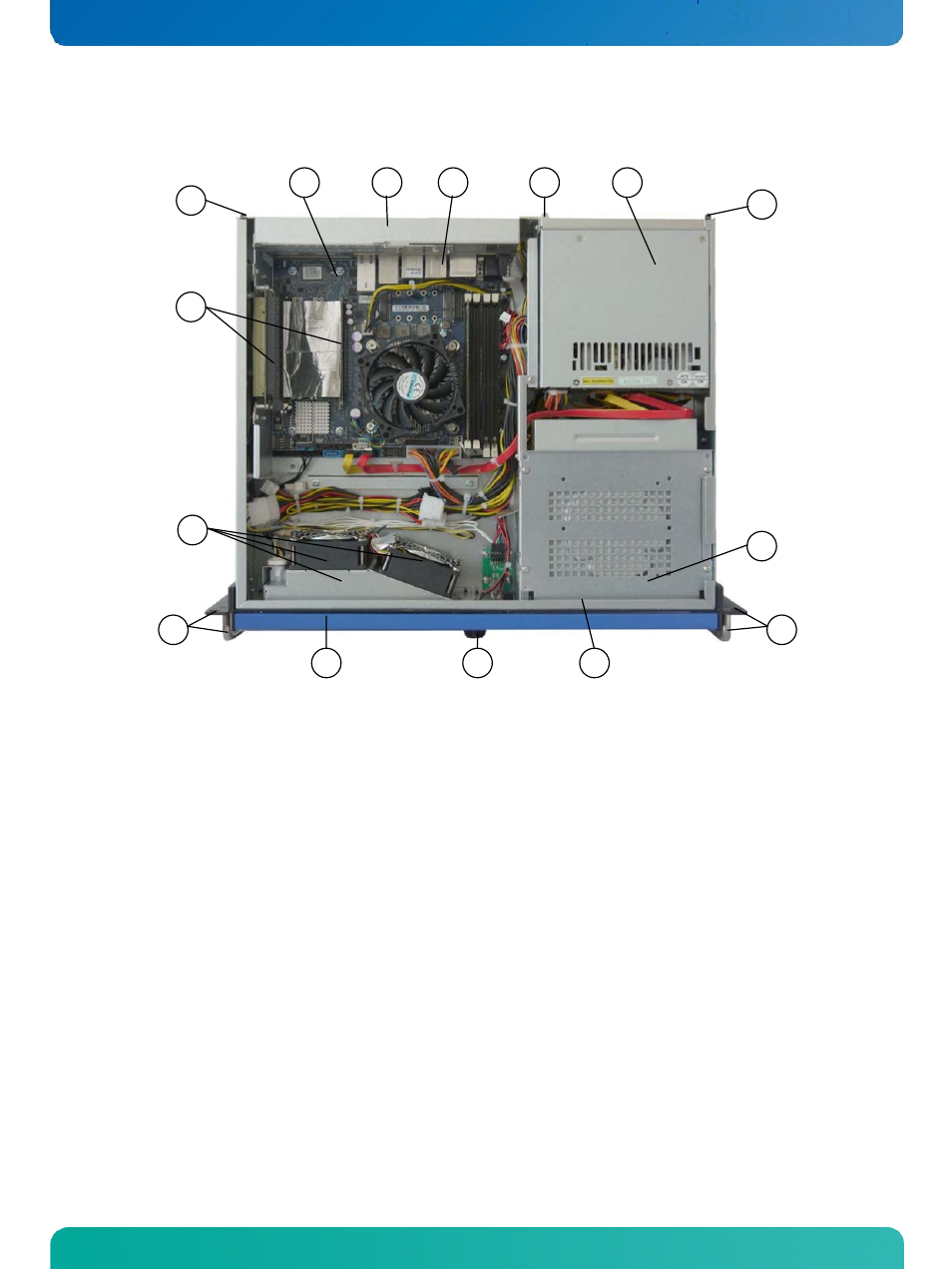

Fig. 8: Rackmount version, opened (for system expansion via riser card)

1 19" bracket with handle

2 Front access panel

3 Securing lock mechanism

4 Cover retaining plate on the front side

5 Drive cage

for drive bays (L1 and L2)

6 Centring latches on the rear side for the cover

7

Power Supply Unit (AC)

8 External ports of the motherboard

9 Cover retaining plate on the rear side

10 Motherboard

11 PCI or PCIe riser card with expansion slots

12 Fan slide-in module (equipped with two fans)

14
