VMP1 Functional Description
ID 26037, Rev. 01 Page 2 - 4 ® 2002 PEP Modular Computers GmbH
2.2 Front Panels

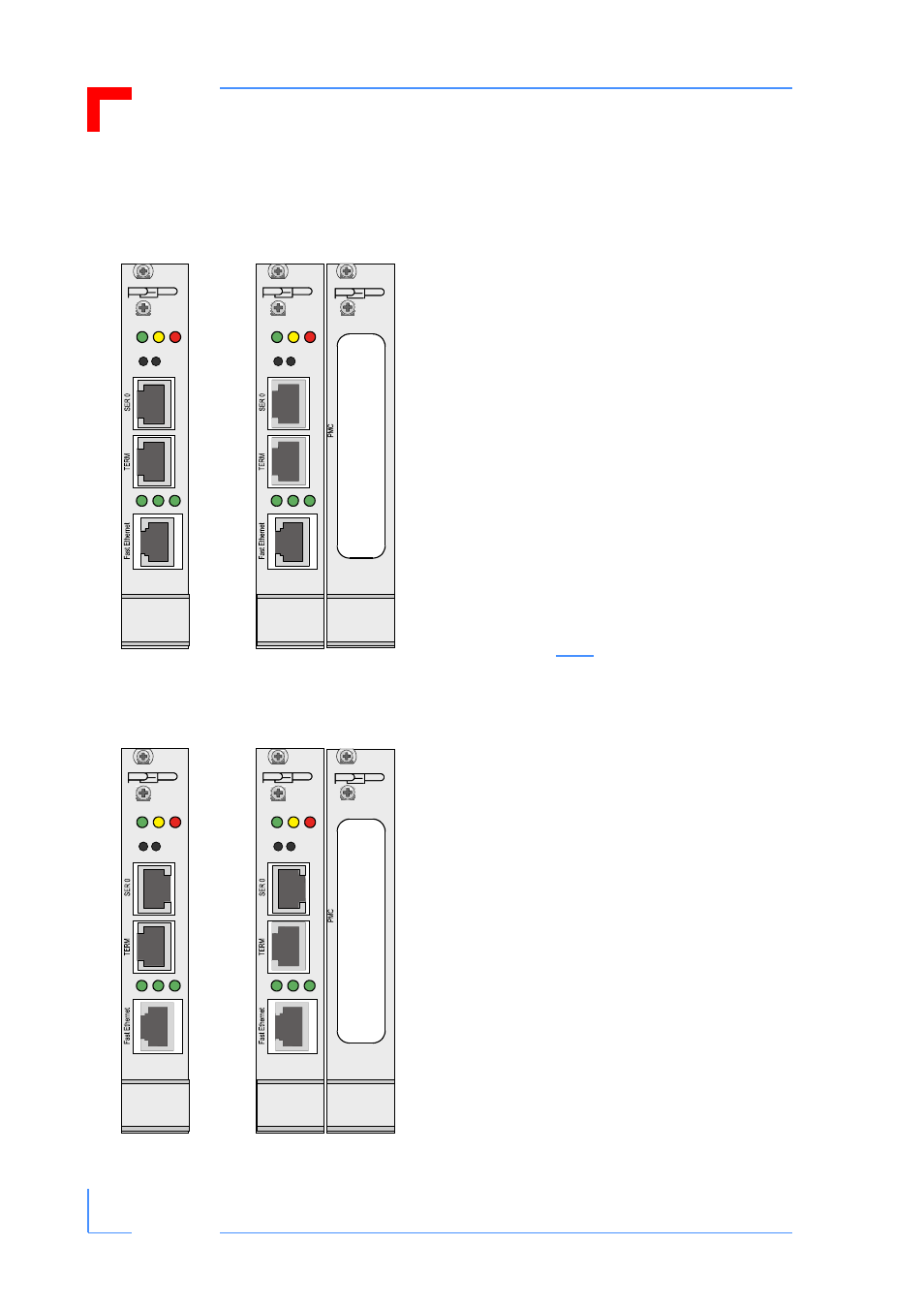

Figure 2-2: Front Panels
Standard VMP1 and
VMP1 Optoisolated version
and Optoisolated version
with IO1 Module - note the
different position of the
SER 0 connector
Standard with IO1 Module
VMP1-IO1 VMP1 VMP1
W U H W U H
A B R ST
LN K .
S P EE D A C T .
A B RS T
LN K .
S PE E D AC T .
VMP1 VMP1-IO1 VMP1
W U H
A B RS T
LN K .
S PE E D AC T .
A B R ST
LN K .
S P EE D A C T .
W U H
KEY
LED colors
U = green
W = yellow
H = red
(for B&W monitors
and printouts):
