Page 52
Chapter 5 Pinouts
VM62(A) / VM42(A) User’s Manual
5.2.1 Standard RS232 Connectors

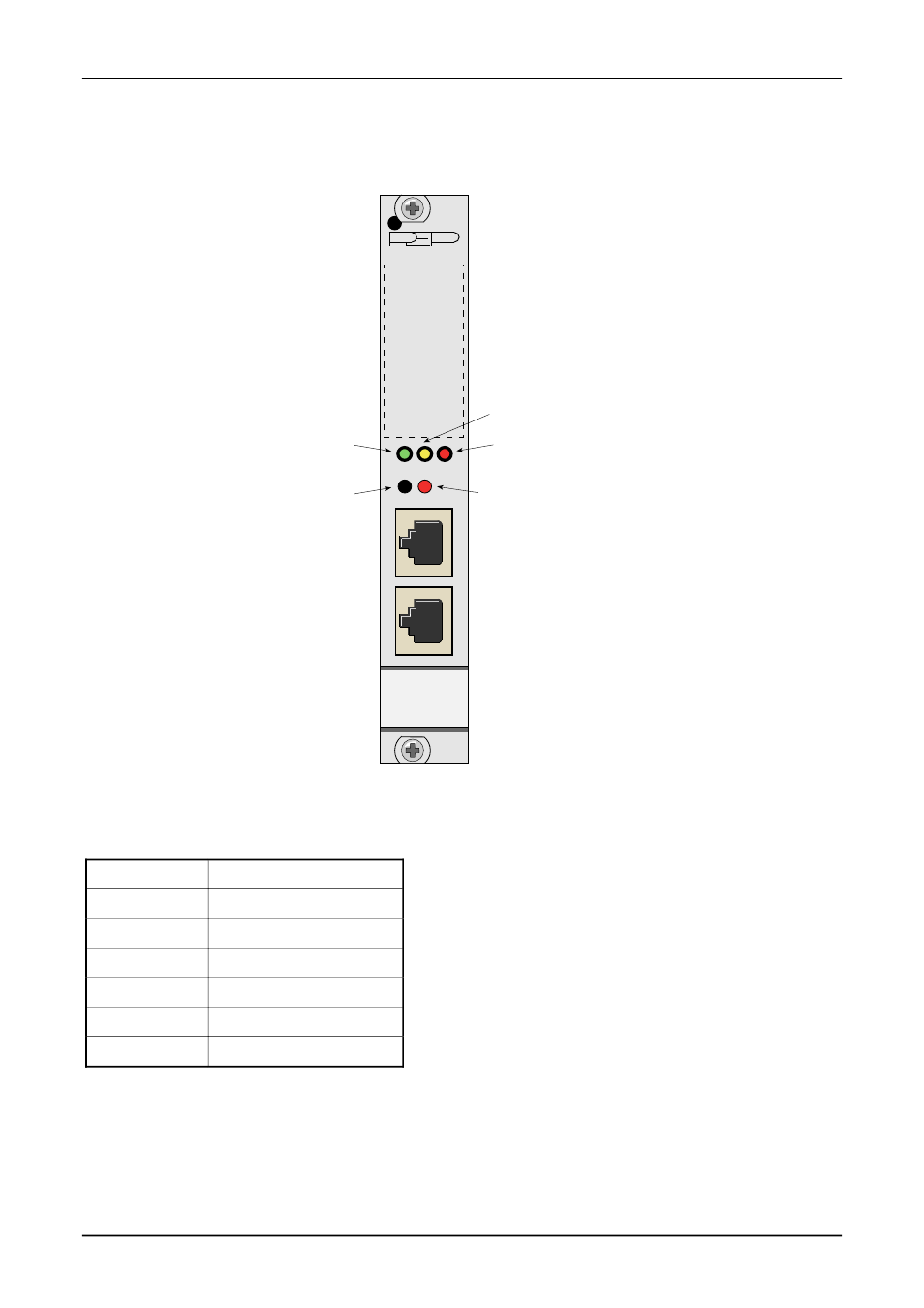

Figure 5.2.1.1: Standard Front Panel Pinouts
BU7
BU8
RJ12 (SMC1)
RJ12 (SMC2)
Dependent on
version ordered
VMx2(A)
SER 0
TERM
U W H
RST
AB
Watchdog LED
Yellow
General Purpose
Green
CPU HALT or RESET
Red
RESET Button
ABORT Button
Pin 1
Pin 6
Pin 1
Pin 6
6-pin RJ12 RS232 Serial Interface Connectors (BU7 and BU8)
Pin Nr.
S i g n a l
1
Not Connected
2
GND
3
TxD
4
RxD
5
Not Connected
6
Not Connected
Page 5-4
©1995 PEP Modular Computers
May 17, 1996
