VM62(A) / VM42(A) User’s Manual Chapter 4 Memory Piggybacks
Jumper J2: Flash Chip Size
S e t t i n g Description
1-2 4 Mbit Flash chips fitted
1-3 1 Mbit Flash chips fitted
4.3 DM602
In preparation
4.4 DM603
4.4.1 Configuration
The DM603 is a memory piggyback fitted with 32MByte DRAM and 0.5MByte Flash EPROM. A version of the
DM603 with 2MByte Flash EPROM fitted will soon be available. One configurable jumper is located on the board,
indicating whether the Flash EPROMs are write protected.

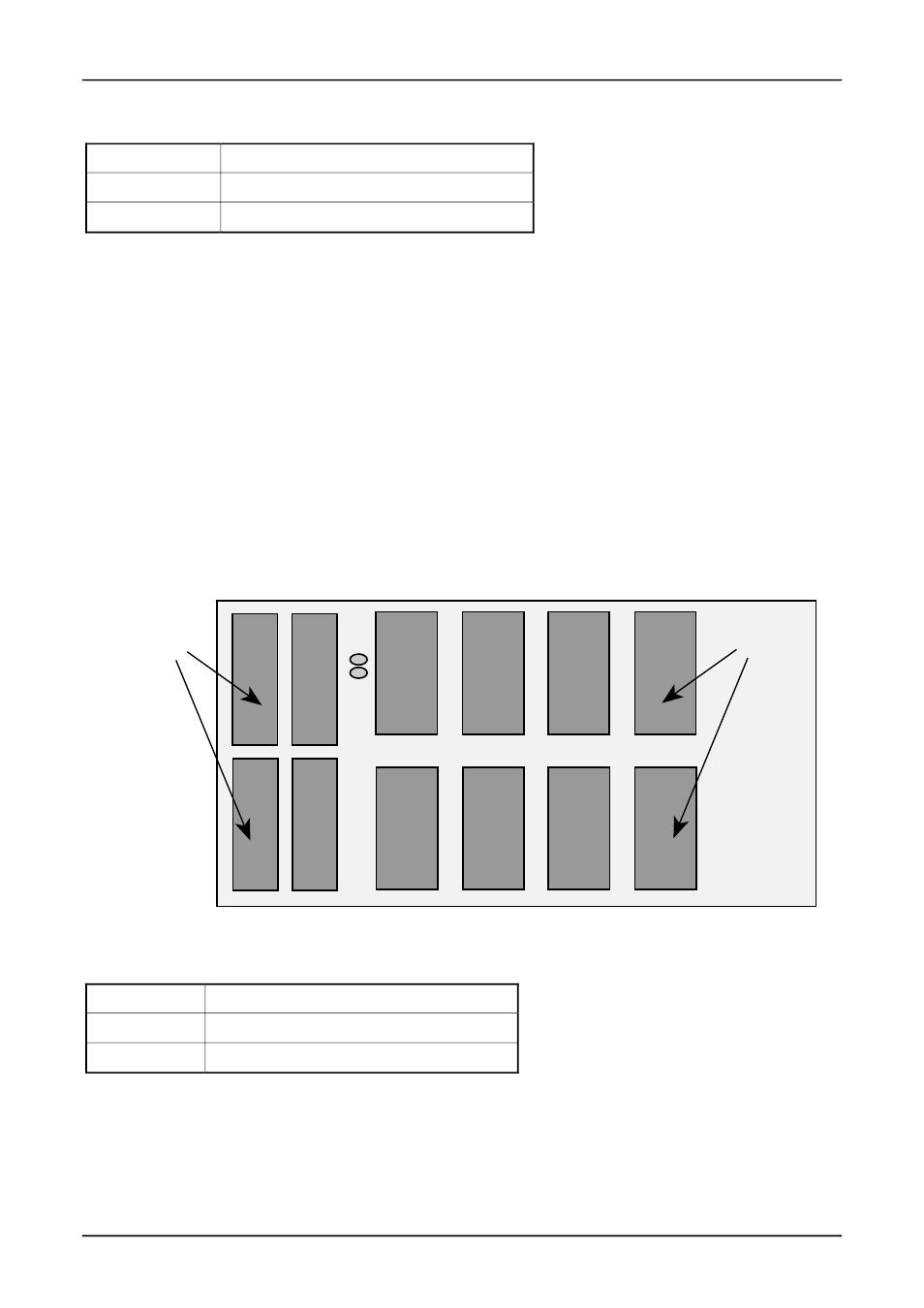

Figure 4.4.1.1: DM603 Jumper Layout (Component Side)
J1 DRAM
Flash
EPROM
Jumper J1: Flash Write Protection
S e t t i n g Description
Open All Flash EPROM write protected
Set No protection Default
May 17, 1996 © 1995 PEP Modular Computers Page 4-3
