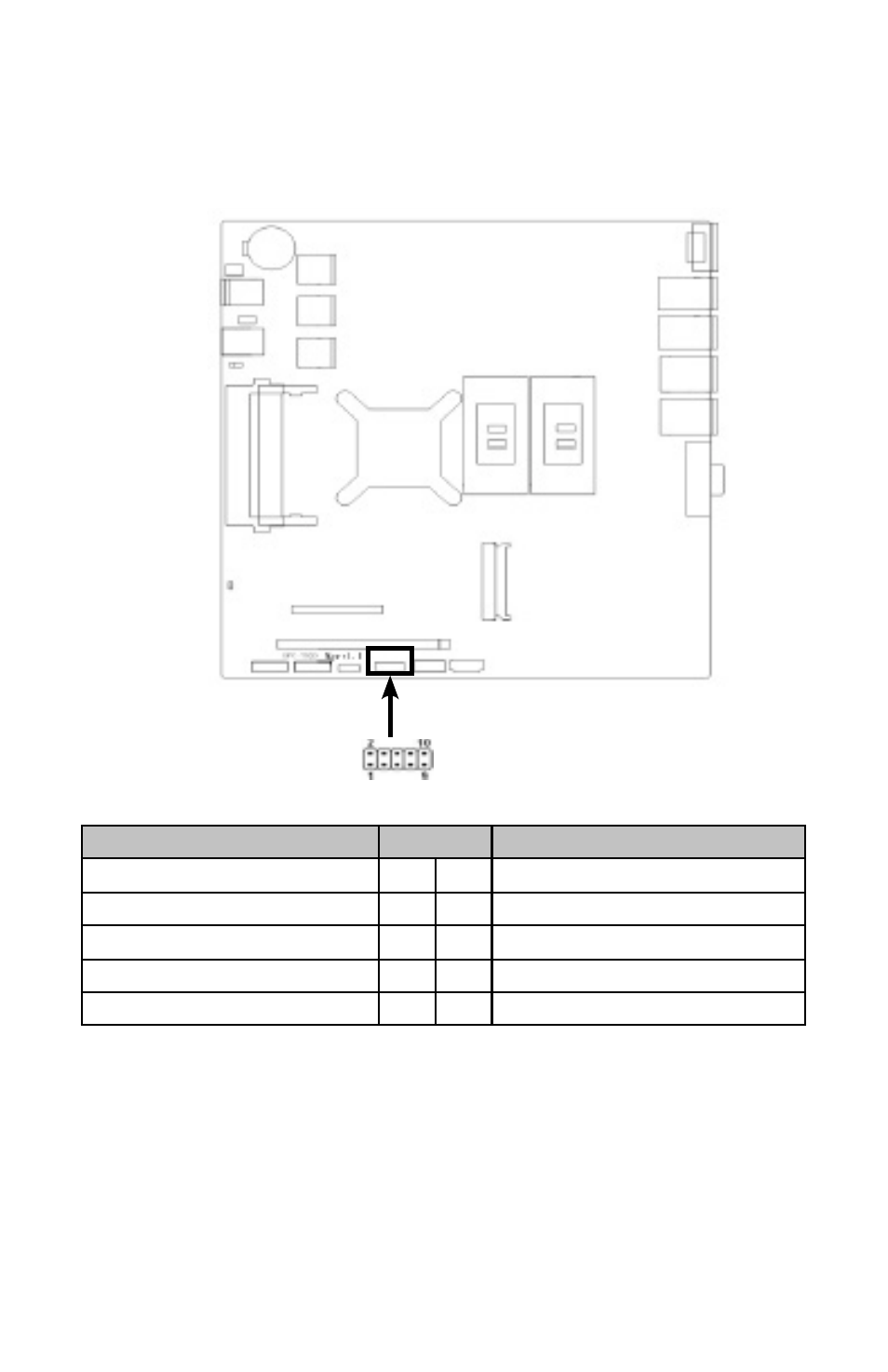

3.3.5 Front Panel Connector (JFP)

JFP is used to connect the function buttons and LED lamps on the front

panel.

JFP:

Signal Name

Pin

Signal Name

POWER LED+

1

2

POWER LED-

HD LED+

3

4

HD LED-

VCC

5

6

BUZZDATA-

RESET SW

7

8

GND

POWER SW

9

10

GND

Please follow the table below to connect, pay attention to the

anode (+) and cathode (-), otherwise, some function cannot

be realized.
