GPIO:

Signal Name

Pin

Signal Name

GPIO1

1

2

VCC

GPIO2

3

4

GPIO5

GPIO3

5

6

GPIO6

GPIO4

7

8

GPIO7

GND

9

10

GPIO8

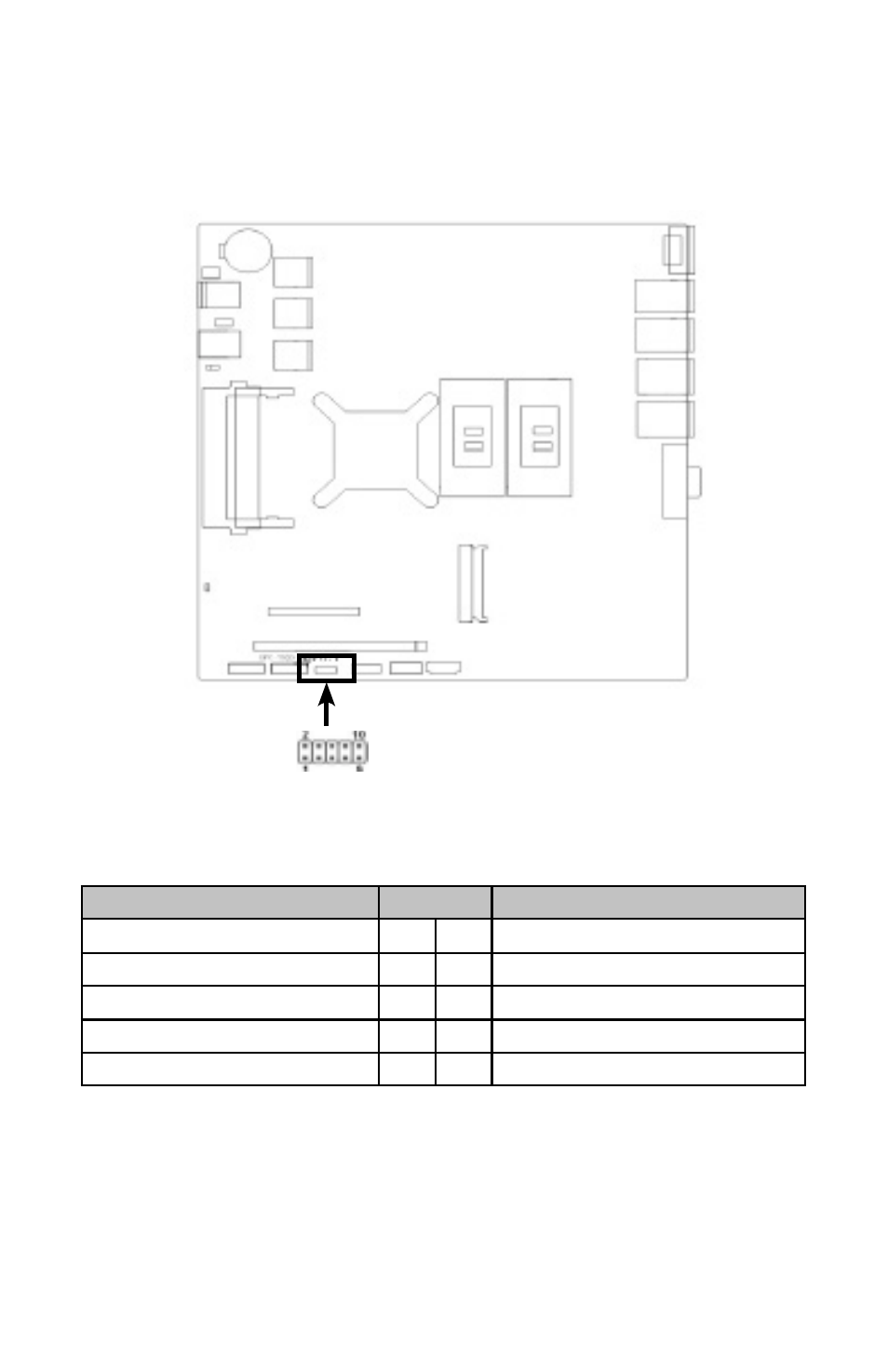

3.3.2 GPIO

GPIO: General Purpose Programmable Input/output Port
