MS:
Pin
Signal Name
1
+5V
2
GND
3
NC
4
MS_DATA
5
MS_CLK
6
NC
3.1.7 USB3.0

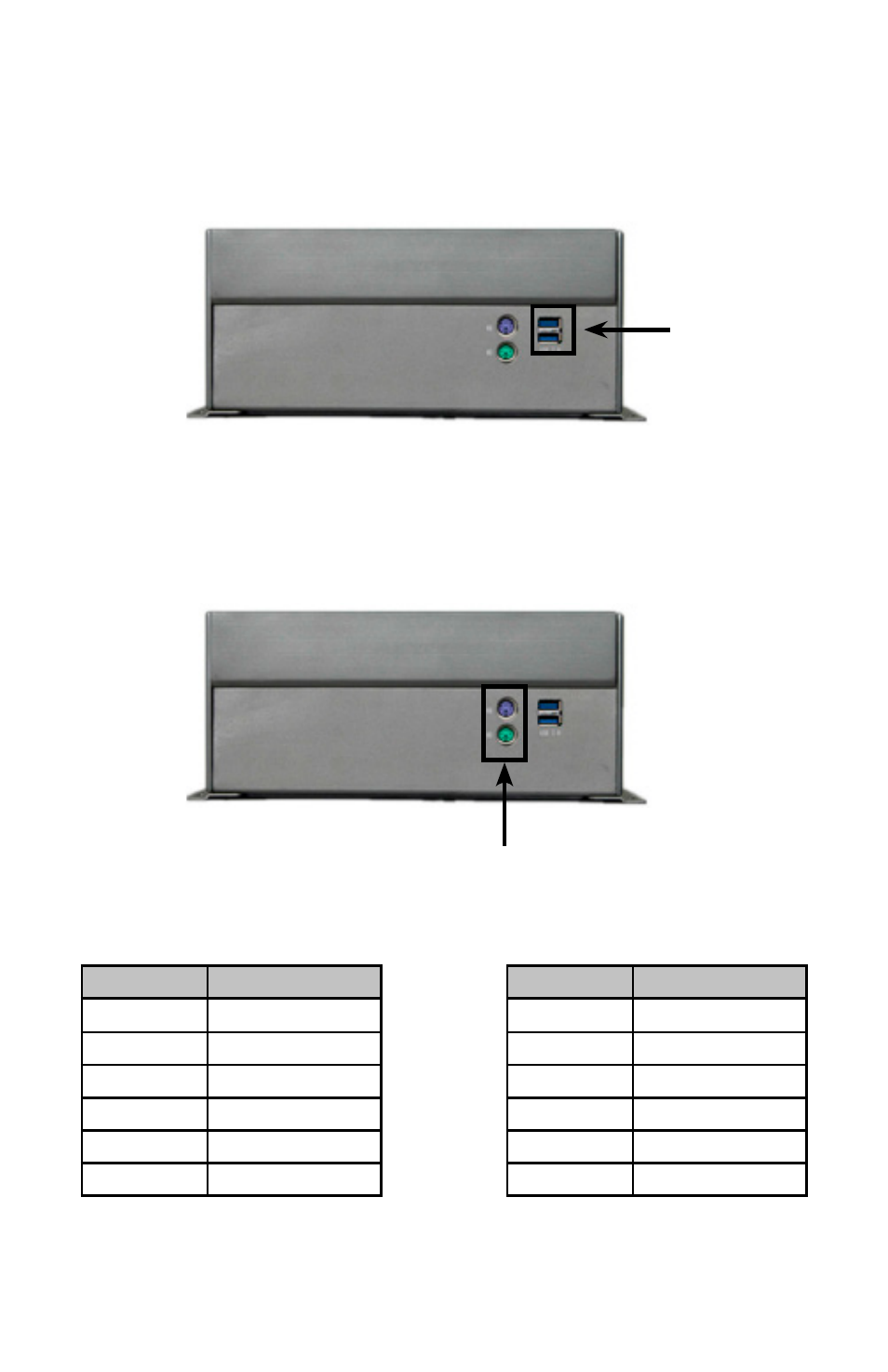

Rear panel has 2x standard USB3.0 ports.
USB3.0
3.1.8 PS/2
Rear panel has one PS/2 keyboard and PS/2 mouse interfaces.
PS/2 KB/MS
KB:
Pin
Signal Name
1
+5V
2
GND
3
NC
4
KB_DATA
5
KB_CLK
6
NC
