NC
21
22
GND
TLC
23
24
TLC#
NC
C1
C2
NC
NC
C3
C4
NC

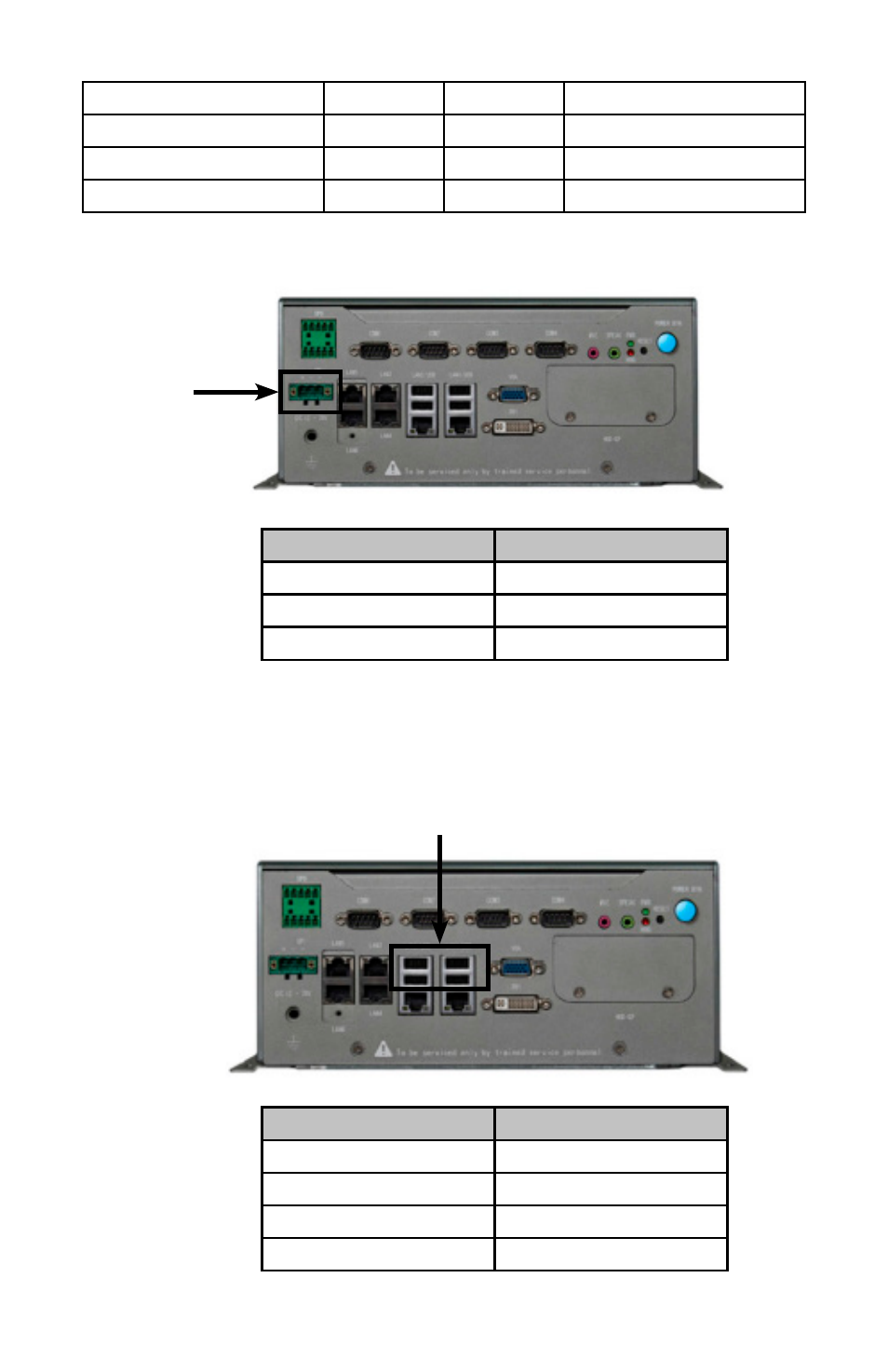

3.1.5 Power Interface (DC_JACK)
DC 12-28V
DC_JACK:
Pin
Signal Name
1
Power Input
2
GND
3
GND
3.1.6 USB2.0
Front panel has 4x standard USB2.0 ports.
4x USB2.0
Pin
Signal Name
1
+5V
2
USB DATA-
3
USB DATA+
4
GND
