VGA:
3.1.4 Display (VGA, DVI-D)

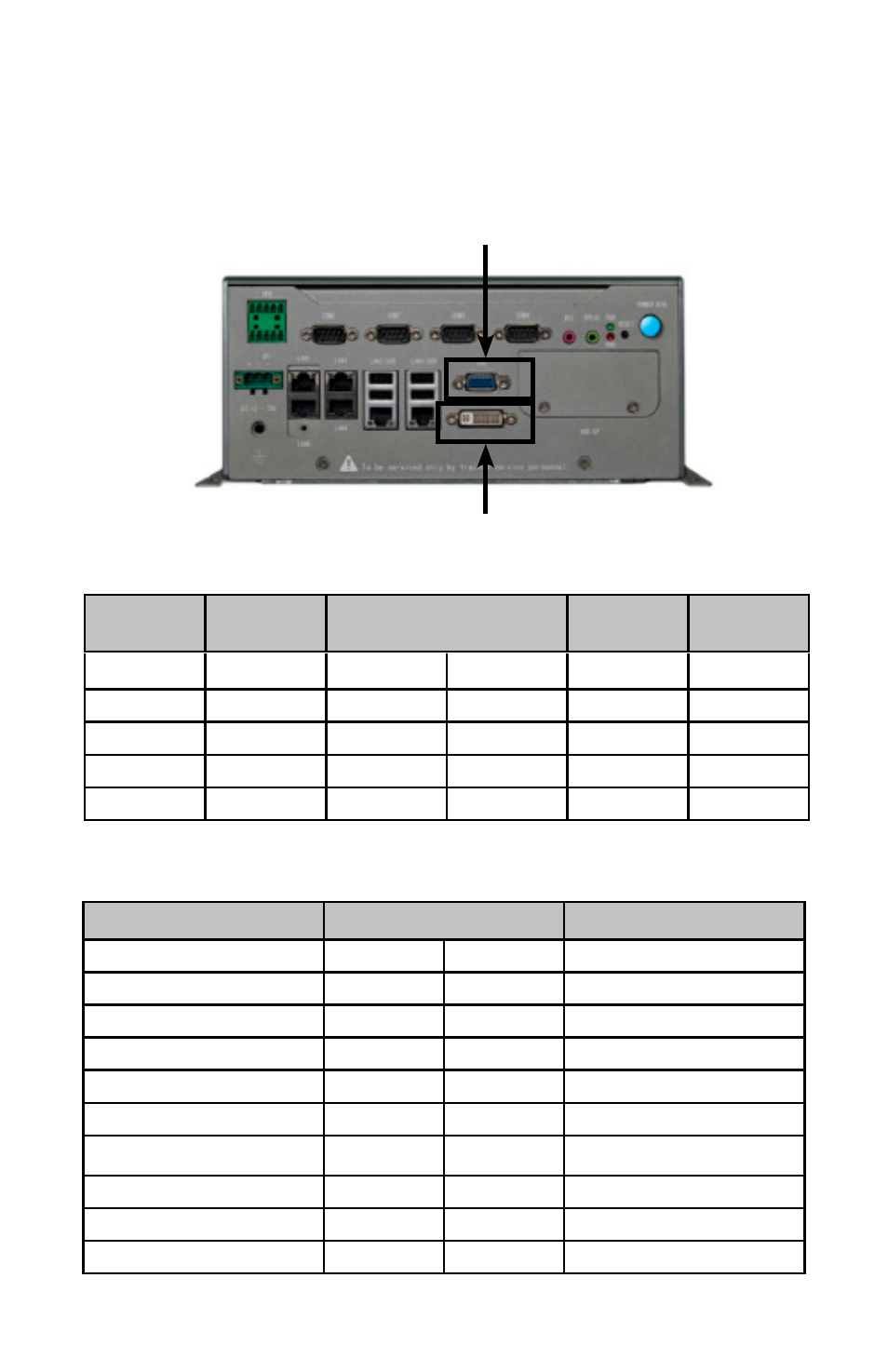

System provides one standard 15Pin VGA port to connect all VGA moni-
tors, and one DVI port to connect DVI monitors.
DVI
VGA
Pin
Signal
Name
Pin
Signal
Name
Pin
Signal
Name
1
RED
6
GND
11
NC
2
GREEN
7
GND
12
SDA
3
BLUE
8
GND
13
HSYNC
4
NC
9
+5V
14
VSYNC
5
GND
10
GND
15
SCL
Signal Name
Pin
Signal Name
TDC2#
1
2
TDC2
GND
3
4
NC
NC
5
6
SC-DDC
SD-DDC
7
8
NC
TDC1#
9
10
TDC1
GND
11
12
NC
NC
13
14
VCC
GND
15
16
HP-DETECT
TDC0#
17
18
TDC0
GND
19
20
NC
DVI-D:
