48
57
50
49
54
59
79
47
55 58
51
56
52
53
AP164-57 85
BRACKET,CAM LOCK,2071 BORE
SITE TOWER,4M
1
AP164-56 84 STUD,2071 BORE SITE TOWER,4M 4
AP164-53 83
BOOM 2,2071 BORE SITE
TOWER,4M
1
AP164-51 82
SPACER,CAM,2071 BORE SITE
TOWER,4M
2
AP164-21 81 ROLLER,.665 1
AP164-20 80 KNOB,1/2-13 X 2.27 1
910827 79 NUT,1/2-13,HEX,FG,BROWN 12
910717 78
SET SCREW,SLTD NYLON, 3/8-16 X
3/4" FLAT
5
910624 77
SET SCREW,SLTD NYLON, 3/8-16 X
1 1/2" FLAT
4
910589 76
BOLT,1/2-13 X 3.0",HEX,GF
NYLON,BLACK
2
910584 75 NUT,1/2-13,HEX,GF NYLON,BLK 18
910583 74 NUT,3/8-16,HEX,GF NYLON,BLK 4
910582 73
BOLT,1/2-13 X 2.0",HEX,GF
NYLON,BLACK
2
910581 72
BOLT,3/8-16 X 1-1/4",HEX,GF
NYLON,BLACK
4
910580 71
BOLT,3/8-16 X 1-1/2",HEX,GF
NYLON,BLACK
4
910579 70
BOLT,1/2-13 X 2.5",HEX,GF
NYLON,BLACK
8
910577 69
BOLT,3/8-16 X 1.0",HEX,GF
NYLON,BLACK
16
890478 68 SPRG URETHANE COMPR 2
890477 67 BUSHING FLAT RUBBER 16
890469 66
HOSE COILED SINGLE 1"
1/4x1/8x30Ft A6460
2
890468 65
CONNECTOR MALE 28-4-2
PARKER
4
890464 64 NUT TUBE 5000-2 CLIPPARD 4
880393 63 BELT,TIMING,T10,25MM,ESD 1
880146 62 BEARING,.625 X 1.0625 X .281 4
880131 61 BEARING,1.312 X 1.750 X .281 2
114684 60 CAM,TRACER,2071B,3M 2
PART NUMBER ITEM NO. DESCRIPTION QTY.
114676 59 BOOM,ANTENNA ROTATE,2071B 1
114675 58
BOOM,CABLE
MANAGEMENT,2071B
1
113493 57 ASSY,BUSHING,6.0" STINGER 1
110222 56 NUT PLATE,SLIDER,2175 1
110221 55 KNOB,1/2-13 X 4.12,GLUED 3
110220 54 PLATE,OFFSET,2175 2
110219 53 BRACKET,FIXED,OFFSET,2175 2
110218 52 BRACKET,SLIDER,OFFSET,2175 2
109275 51 GUIDE,CONDUIT SWEEP 1
109034 50 KNOB,1/2-13 X 1.1,GLUED 2
108990 49 CLAMP,STINGER 2
108810 48 BOOM,ANTENNA,2175 1
108374 47 STUD,1/2-13 X 5.00,FG 2
106319-2 46 PLATE VERT PIVOT RIGHT 1
106319-1 45 PLATE VERT PIVOT LEFT 1
106156 44 DOWEL PIN .50" X 1.98" PHEN 2
106155 43 CAP SCREW MODIFIED 2
106154 42 STUD 5.75" BORESIGHT 4
105947 41
SPACER SLEEVE ROTATING
BOOM 2070
1
105945 40 DOWEL PIN .375 X 2.0 PHEN 2
105944 39
CYLINDER ROD PIN ROTATING
BOOM
1
105937 38
ARM PIVOT ROTATING BOOM
2070
2
105935 37
BEARING SLEEVE ROTATING
BOOM 2070
2
105827 36
LOWER CLAMP PLATE TOWER
BELT CLAMP
1
105826 35
LOWER TOOTH PLATE TOWER
BELT CLAMP
1
105825 34
LOWER THRU PLATE TOWER BELT
CLAMP
1
105824 33
UPPER THRU PLATE TOWER BELT
CLAMP
1
105823 32
UPPER MIDDLE CLAMP PLATE
TOWER BELT CLAM
1
105822 31
UPPER TOOTH PLATE TOWER
BELT CLAMP
1
105724 30 DOWEL PIN PHENOLIC .25 X 1.37 1
104164 29 STUD 1/2-13 BORE SIGHT 2
104160 28 STUD 2.375 BORE SIGHT 3
104153 27 BORE BRACKET 2 BORE SIGHT 1
104145 26 BORE BRACKET 1 BORE SIGHT 1
104142 25 KNOB 1/2-13 BORE SIGHT 3
104141 24 ROLLER BORE SIGHT 1
104140 23 SPACER BORE SIGHT 2
104135 22 WASHER SHOULDER BORE SIGHT 2
104036 21
BLOCK SQUARING ANT CARRIER
III]
2
104034 20 STUD 3.625 ANT CARRIER III 4
104033 19 STUD 2.250 BORE-SIGHT 4
104032 18 STUD 4.75" BORESIGHT 4
104030 17 PULLEY ASSY BORE-SIGHT 1
104028 16
SHAFT THREADED ANT CARRIER
III
1
104027 15 CLAMP 2 ANT CARRIER III 1
104024 14 PLATE PINCH BORE-SIGHT 2
104023 13 ROLLER PINCH BORE-SIGHT 1
104022 12 ROLLER ANT CARRIER III 8
104020 11 AXLE 2 ANT CARRIER III 8
104016 10 IDLER 2
104015 9 PLATE HOUSING BORE-SIGHT 2
104013 8 WASHER THRUST BORE-SIGHT 4
104012 7 AXLE 1 BORE-SIGHT 2
104011 6 CLAMP 3 ANT CARRIER III 1
104010 5 CLAMP 1 ANT CARRIER III 1
104008-2 4 PLATE BOOM ANT CARRIER III 1
104008-1 3 PLATE BOOM ANT CARRIER III 1
104007 2 PLATE CORNER ANT CARRIER III 2
103794 1 AIR CYLINDER ASSY III 1
PART NUMBER ITEM NO. DESCRIPTION QTY.

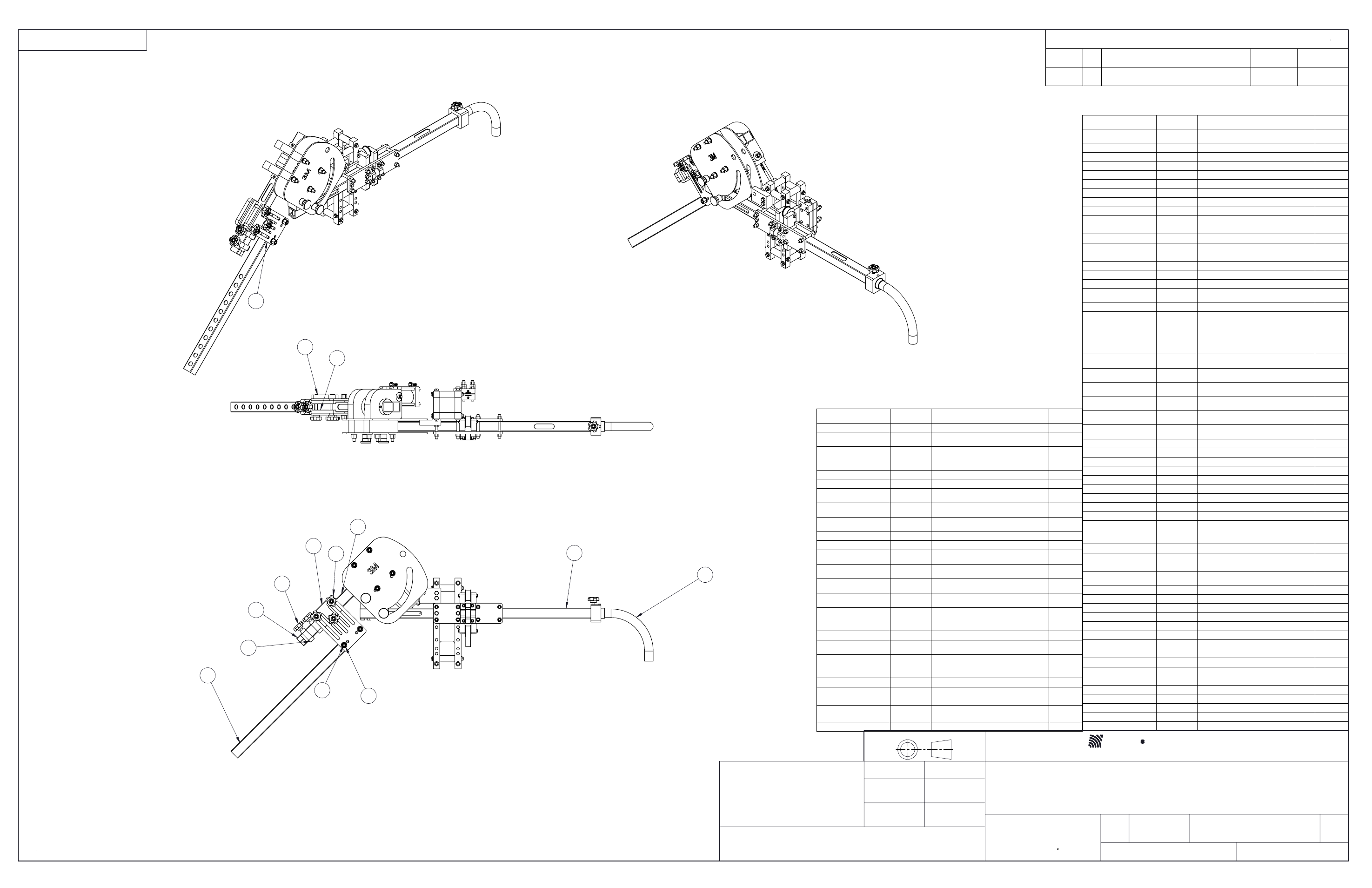

CARRIER ASSY,BORE SITE,4M
1:8
108803
D
1 4
11/12/09
X.XX
X.XXX .005
.015 .5
NONE
REF DRAWING
ECN REV APPROVED
REVISIONS
DESCRIPTION DATE
DO NOT SCALE DRAWING
ETS LINDGREN
SIZE
THIRD ANGLE PROJECTION
ENGINEERING
INITIAL
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER
FINISH
TOLERANCES ARE:
DECIMALS
±
± ±
ANGLES
DRAFTING
PERMISSION OF ETS LINDGREN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
WITHOUT EXPRESS WRITTEN
DOCUMENT, WHOLE OR IN PART,
DATE
TITLE
OF SHEET
DWG. NO.
An ESCO Technologies Company
SCALE
D
TM
REV.
6054 D CNG TO 2175 STYLE BOOM 11/16/09 JSW
JSW
