ETS-Lindgren 2071B Antenna Positioning Tower (Archived) User Manual
Page 29
Assembly Instructions
|
29

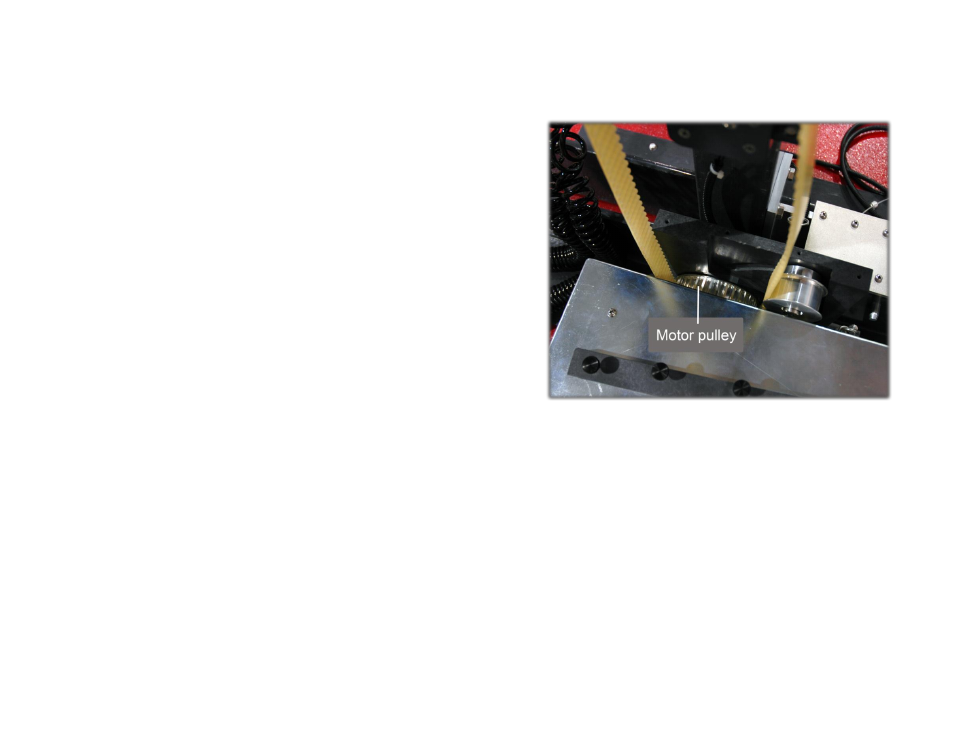

13. Continue routing the drive belt down and around the motor pulley and
up through the inner clamp slot on the carrier belt clamp (see photo of
inner clamp slot on page 22) until approximately 0.5 m (1.5 ft) of belt
is through the clamp. Remove the tape you placed on the drive belt in
step 4.
Archived 06/24/14
