Assembly Instructions

|

21

1.

Place the base of the Model 2070B/2071B in the chamber or other

designated installation location.

2.

Place the mast horizontally onto an elevated, stable surface, such as

sawhorses.

3.

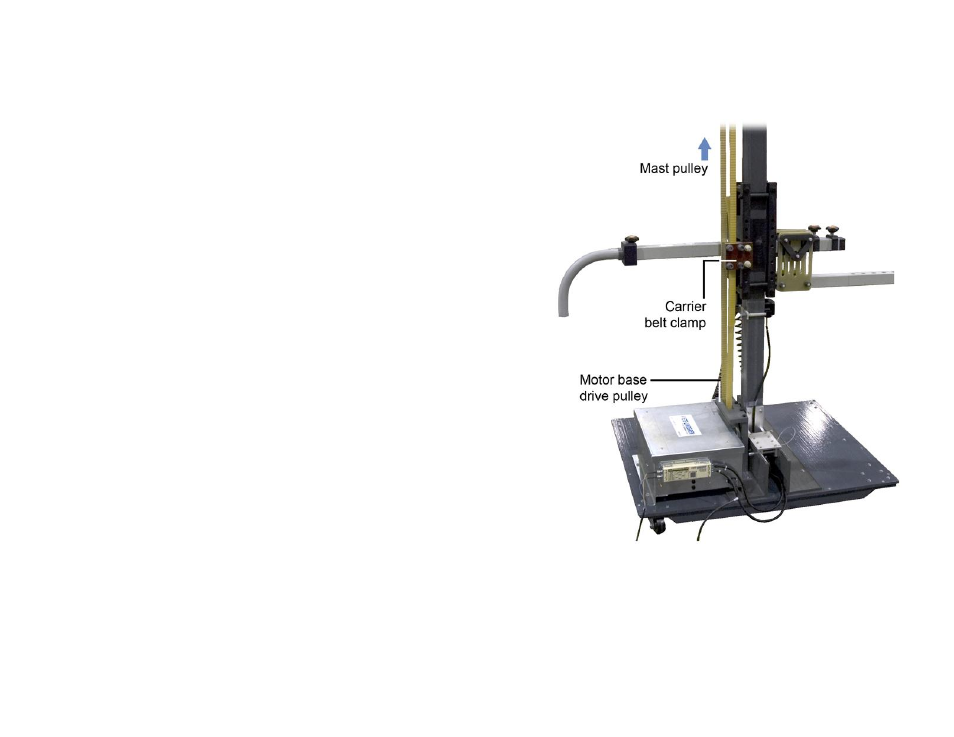

Carefully slide the carrier unit onto the mast. Orient the carrier so that

when the mast is inserted into the base:

The carrier belt clamp will be directly over the drive pulley on

the motor base; and

The carrier belt clamp is in line with the mast pulley.

Archived 06/24/14
