Assembly Instructions

|

25

M

ODEL

2071B

O

NLY

TIP | Run the antenna cables through the boom sections while assembling the boom. Be careful not to pinch or damage the cables.

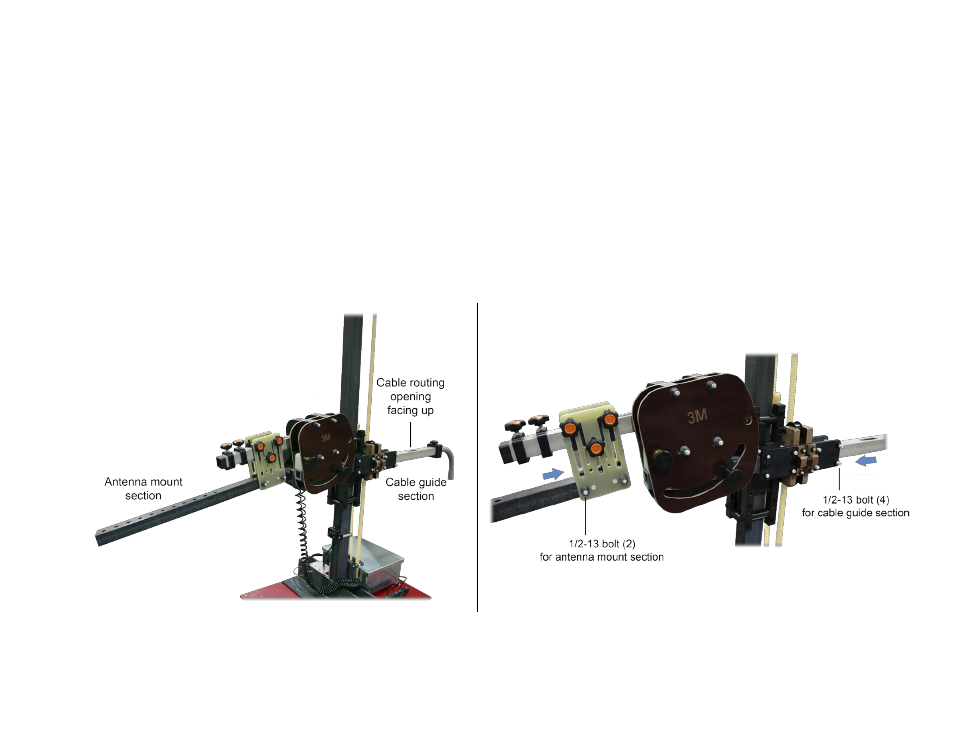

The boom assembly ships with the antenna mount section separated from the cable guide section. To assemble and install the boom:

Install cable guide section: Loosen the four 1/2

–13 bolts, and then slide the cable guide section into the boom slot, making sure that the

cable routing opening is facing up. Re-tighten the four bolts.

Install antenna mount section: Remove the two 1/2

–13 bolts from the carrier, and then slide the antenna mount section into the boom

slot. Re-insert the two bolts, making sure they go through the antenna mount section. Tighten the two bolts.

Archived 06/24/14
