Page 4
 Place the ferrite sleeve over T5, aligning both the ferrite sleeve and paper washer with T5’s component outline.

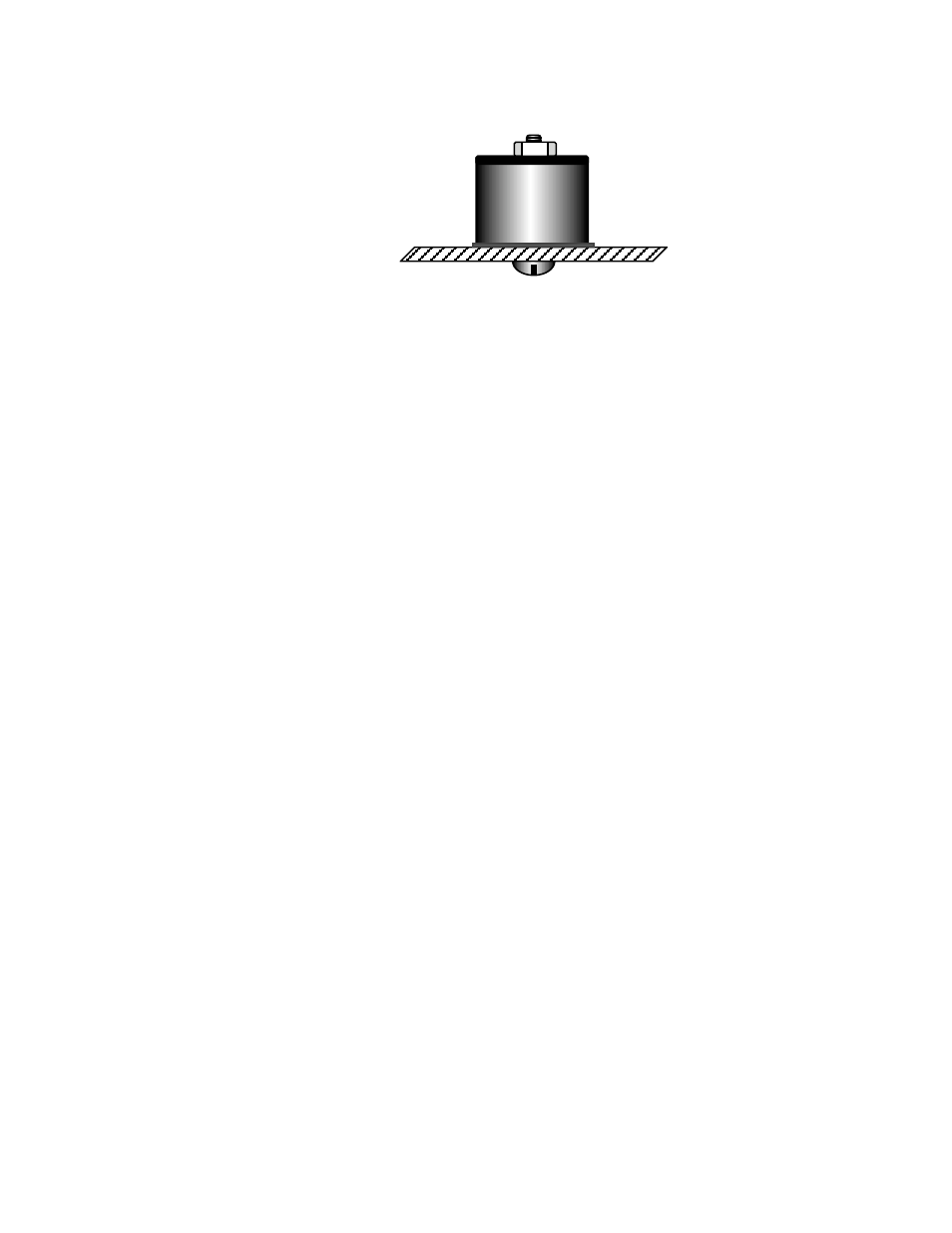

 Place the 5/8” (16 mm) diameter nylon washer on top of the ferrite sleeve (Figure 6). Secure using a nylon 4-40 nut.
Figure 6
 Re-install the K2’s bottom cover.
 Re-install the K2’s top cover. Reconnect all cables carefully to avoid misalignment of connector pins.
 Make the following notation in your K2 manual near Table 6-1: “L30 Removed. Set VCO by changing T5 turn spacing.”
