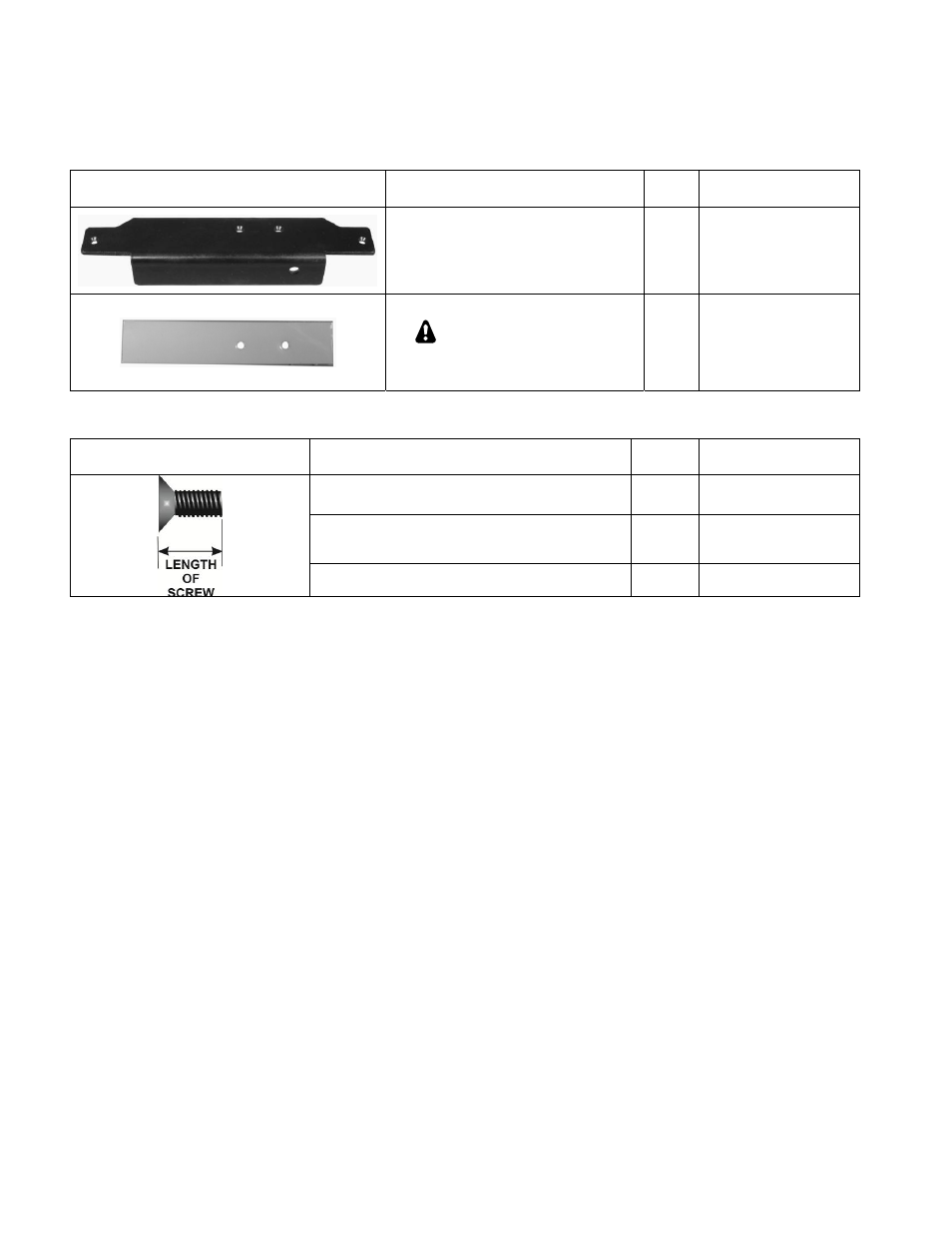

5. Page A6 (Parts List): Delete the heat sink shown (part number E100446). Insert the following parts at the

bottom of the page.

ILLUSTRATION DESCRIPTION

QTY.

ELECRAFT PART

NO.

Enhanced Heat Sink (wrapped)

1

E850677

Thermal Pad

Handle with Care. Do not

remove the protective film from

either side until instructed to do so.

1 E100546

KX3HSMDKT HDWR BAG E850676 (Envelope)

ILLUSTRATION DESCRIPTION

QTY.

ELECRAFT PART

NO.

4-40 3/8” (9.5mm) Black Flat Head Screw

2

E700176

4-40 5/8” (15.9mm) Black Flat Head Screw

1

E700307

4-40 5/16” (7.9mm) Black Flat Head Screw

1

E700249

Note that you may find extra screws in your kit that the above screws replaced.
