EFCO 2009 Page 8
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 4
Section 11 - Outside 90° Corner SSG Unit Glazing : C. Adapter Installation
1. Apply L142 thermal isolator clip to the verticals and horizontals. Refer to Volume 2, page 11 of the S-8000 Unitized Curtain Wall Assembly Instructions for
more information.
2. Apply 17B7 SSG glazing adapter to the stack sill. Butt together the 17B7 at the corners. Slide the WC17 horizontal stack joint rain screen gasket into
position. Cut the gasket at a 45° angle with a serrated knife and leave a 1/4” gap at the corner for pressure equalization of the stack joint. It is not necessary
for the miter cut of the WC17 to be a precision cut. Refer to Volume 2, page 12 of the S-8000 Unitized Curtain Wall Assembly Instructions for more
information.
3. Insert HS32 setting blocks between the stack sill glazing adapters and the glass at quarter points, or as directed per the final approved shop drawings. Refer
to Volume 2, page 12 of the S-8000 Unitized Curtain Wall Assembly Instructions for more information.

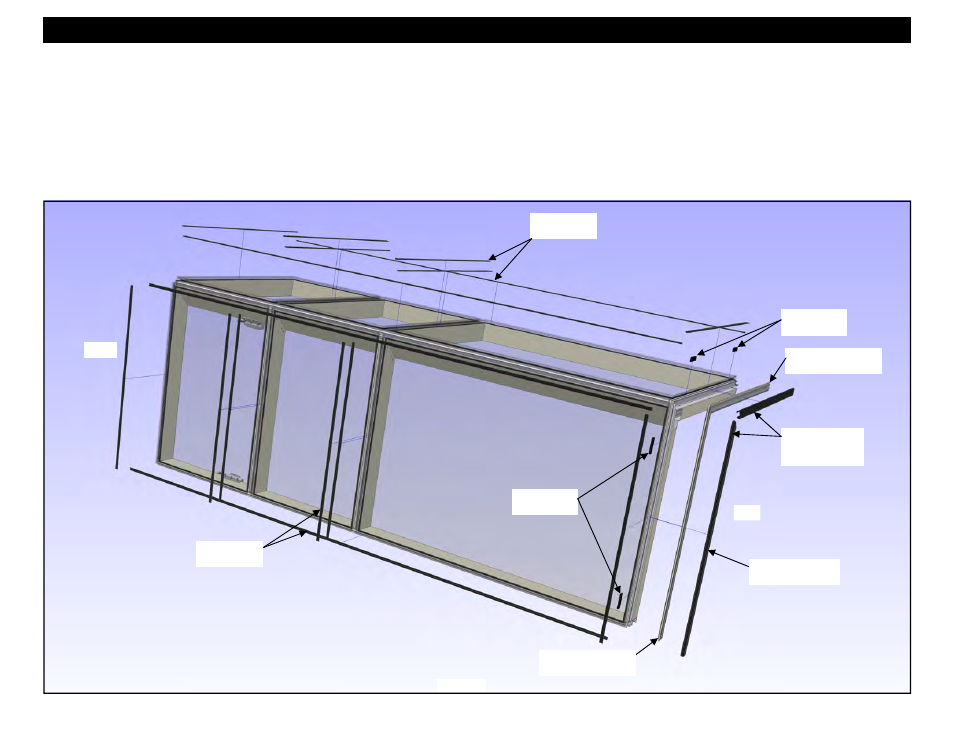

Figure 4
L142 Thermal
Isolator Clips
17B7 SSG Stack Sill
Glazing Adapter
Slide WC17 gasket
into 17B7
WC17 Horizontal
Stack Joint Rain
Screen Gaskets
HS32 Setting
Blocks
L142 Thermal
Isolator Clips
17B7 SSG Stack Sill
Glazing Adapter
HS32 Setting
Blocks
HEAD
SILL
