EFCO 8800 Series Assembly Instructions Vol.4 User Manual
Page 5
EFCO 2009
Page 5
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 4
Section 11 - Outside 90° Corner SSG Unit Glazing : A. Temporary Glazing Locators

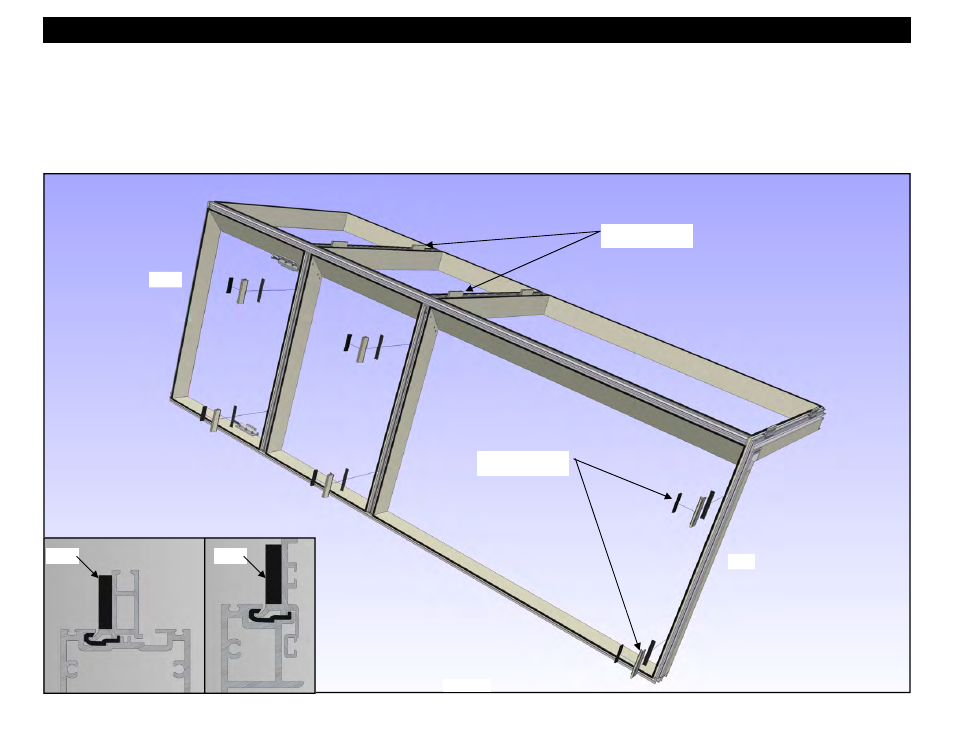

Figure 1
1. Apply two temporary glazing locators (KV01, KV02) with isolators and setting blocks at approximate quarter points at the sill and intermediate horizontal
locations.
2. Refer to Volume 2, page 8 of the S-8000 Unitized Curtain Wall Assembly Instructions for assembly details and notes.
Temporary Glazing
Locators (KV02)
Temporary Glazing
Locators (KV01)
HEAD
SILL
KV01
KV02
