Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 4
Section 13 - Outside 90° Corner Captured Unit Glazing : C. Adapter and Cover Installation
13. Insert 17K1 glazing retainer into 17B5 stack sill glazing adapter and roll into position. Insert 17K0 glazing retainer into 17B1 gutter and roll into position. The
glazing retainers will be flush with the ends of the adapters and butt together in the corners. No sealant is necessary for this step.
14. Drive in WC22 wedge gasket between 17K0, 17K1 and the glazing infill. Start in the center, then move to the ends crowding in as much gasket as possible.
Do not stretch the gasket during application. The WC22 should be trimmed to the same length as 17K0 and 17K1 less the miter. Refer to Volume 2, page
26 Figures 73 -76 of the S-8000 Unitized Curtain Wall Assembly Instructions for more information.

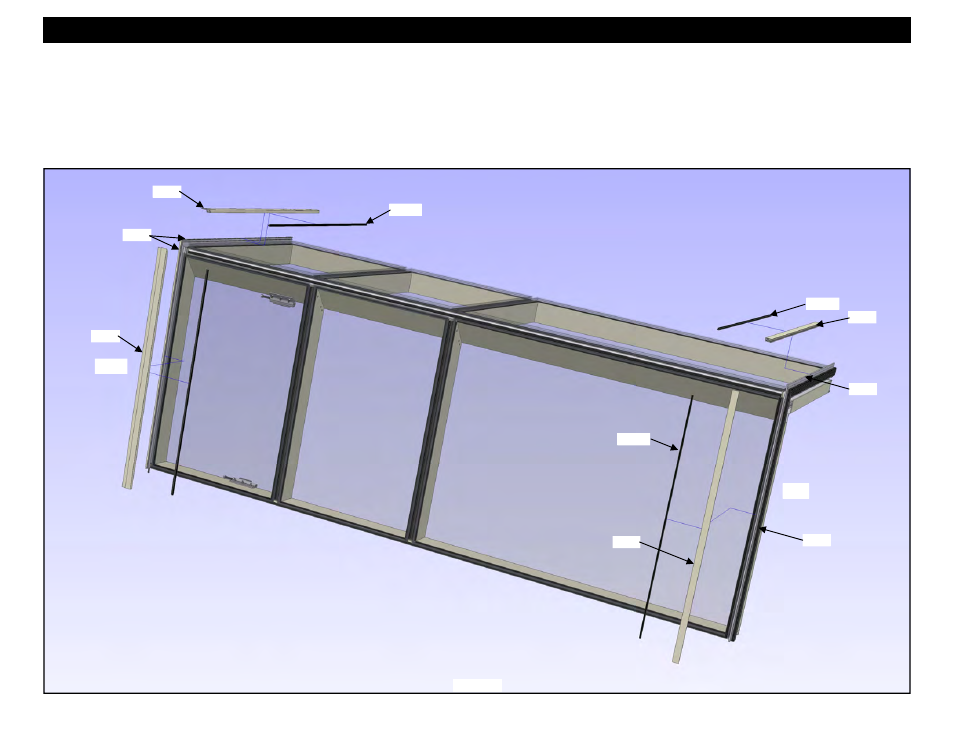

Figure 51
17K1
WC22
17B5
17K0
WC22
17B1
17K0
WC22
17K1
17B5
HEAD
SILL
