Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 4
Section 14 - Inside 90° Corner Captured Unit Glazing : A. Temporary Glazing Locators

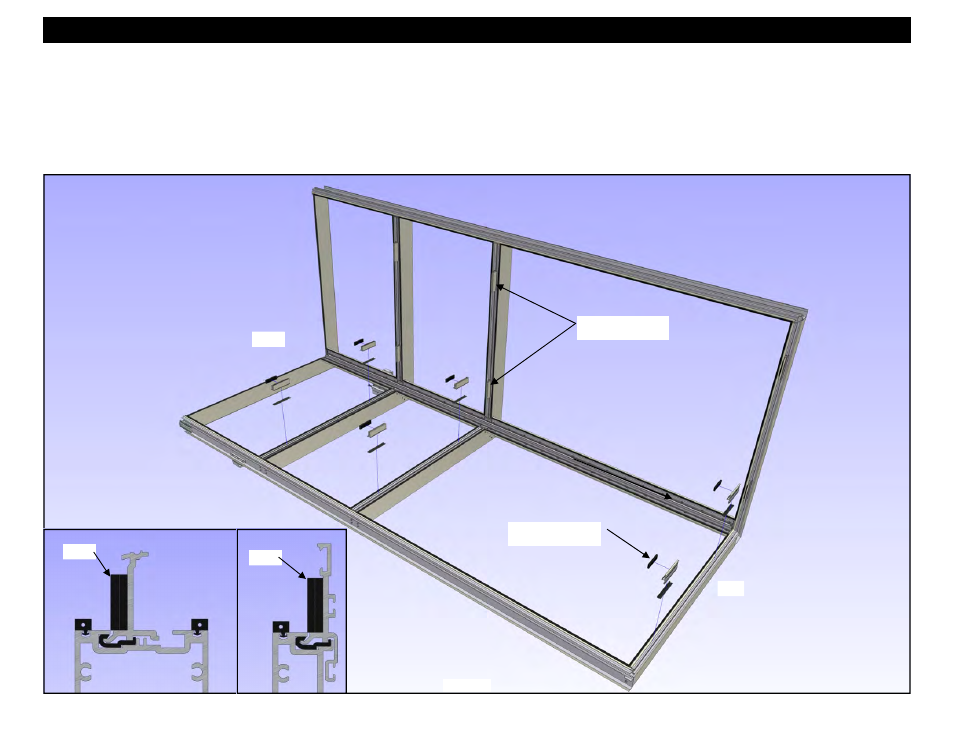

Figure 65
1. Apply two temporary glazing locators (17B5, 17B9 x 4” long) with isolators (L142) and setting blocks (HS31) at quarter points at the sill and intermediate
horizontal locations.
2. Refer to Volume 2, page 20 of the S-8000 Unitized Curtain Wall Assembly Instructions for assembly details and notes.
Temporary Glazing
Locators (KV02)
Temporary Glazing
Locators (KV01)
HEAD
SILL
KV02
KV01
