Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 4
LC23 Horizontal Stack
Joint Spacer Gasket
WC19 Horizontal Stack
Joint Seal Gasket
Section 14 - Inside 90° Corner Captured Unit Glazing : C. Adapter and Cover Installation

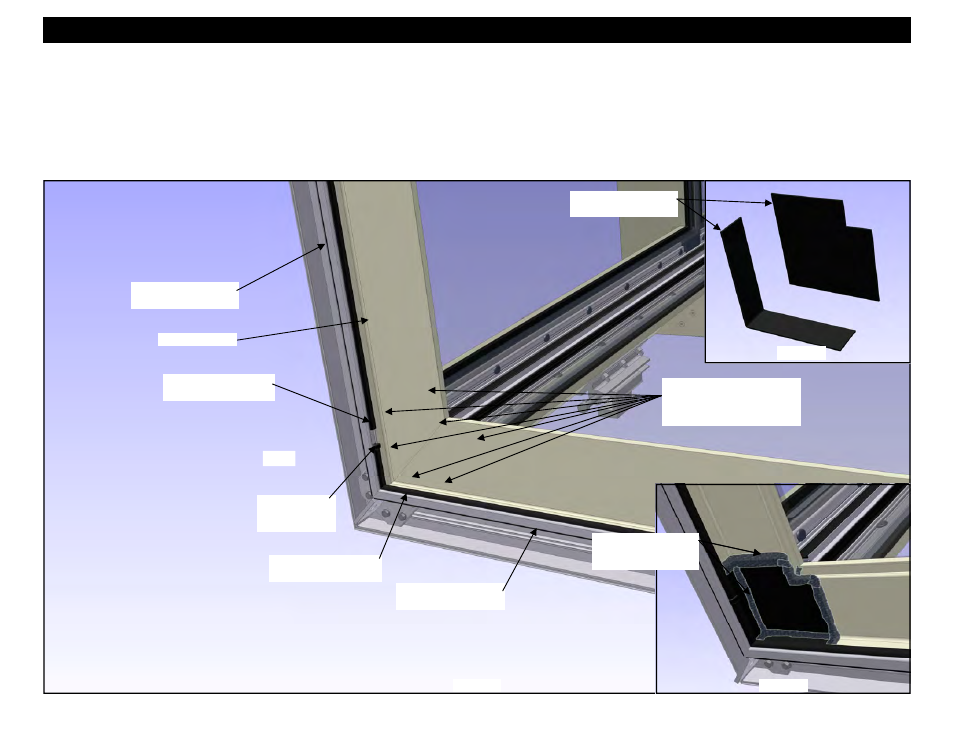

9. Slide in WC19 gasket and LC23 spacer into the gutter starting at the jamb end. LC23 spacer runs continuously and is flush with the ends of the gutter on the
jamb end and butts together at the corner. WC19 runs continuously, overhangs 3” on the jamb end, and wraps around the corner on one side approximately
3” to butt seals together. See Figure 75 below.
10. Clean the sealant contact surfaces of the gutters on the mitered ends with an approved solvent or cleaner. Apply a bed of sealant that will cover the
areas where the silicone splice sleeve will be applied.
11. Apply the silicone splice sleeve in two pieces. Smooth the splice down onto the gutter, forcing out all air bubbles.
12. Apply sealant around the edges of the splices and tool smooth and water tight.
Figure 73
Apply silicone
sealant and butt
ends together.
Captured Gutter
LC23 Horizontal Stack
Joint Spacer Gasket
Apply a bed of sealant that
will cover the areas where
the silicone splice sleeve will
be applied.
Figure 75
Apply the two piece
silicone splice sleeve.
Apply sealant around
the splice sleeve and
tool smooth.
Figure 74
WC19 Horizontal Stack
Joint Seal Gasket
Apply sealant around
the splice sleeve and
tool smooth.
HEAD
