Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 4
Section 13 - Outside 90° Corner Captured Unit Glazing : C. Adapter and Cover Installation

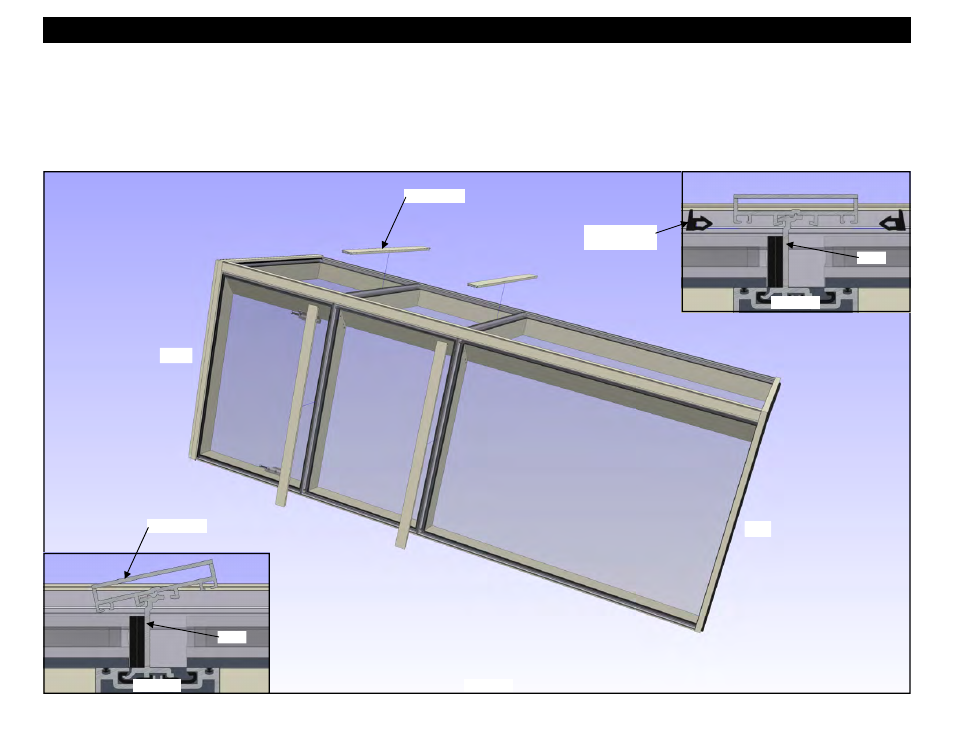

23. Insert 17B8 cover onto 17B9 captured glazing adapter and rotate into place as shown in Figures 60 and 61.
24. Cut the WC22 gaskets approximately 4% to 5% longer than the D.L.O. dimension.
25. Drive in WC22 wedge gaskets starting with the gasket on the setting block side of the glazing pocket. The gaskets should be applied starting in the center of
the D.L.O., and then working from the ends, work the gasket in place to the center of the lite.
17B9
17B9
WC22
Wedge Gasket
17B8 Cover
17B8 Cover
Figure 59
Figure 61
Figure 60
HEAD
SILL
