Flow Meter Testing

Version 1

Flow Meter User Guide

15

R

EPLACING

THE

P

UMP

H

EAD

S

ERVICE

C

OVER

Before replacing the pump head service cover be sure to perform any necessary
maintenance procedures.

The sensor is not covered by a warranty. The sensor is extremely fragile. Use
caution when handling it.

The sensor is hot. Before touching the sensor make sure it has cooled.

1

Carefully flip the pump head service cover back over the sensor.

2

Secure the pump head service cover using the four No. 2 phillips head screws
removed earlier.

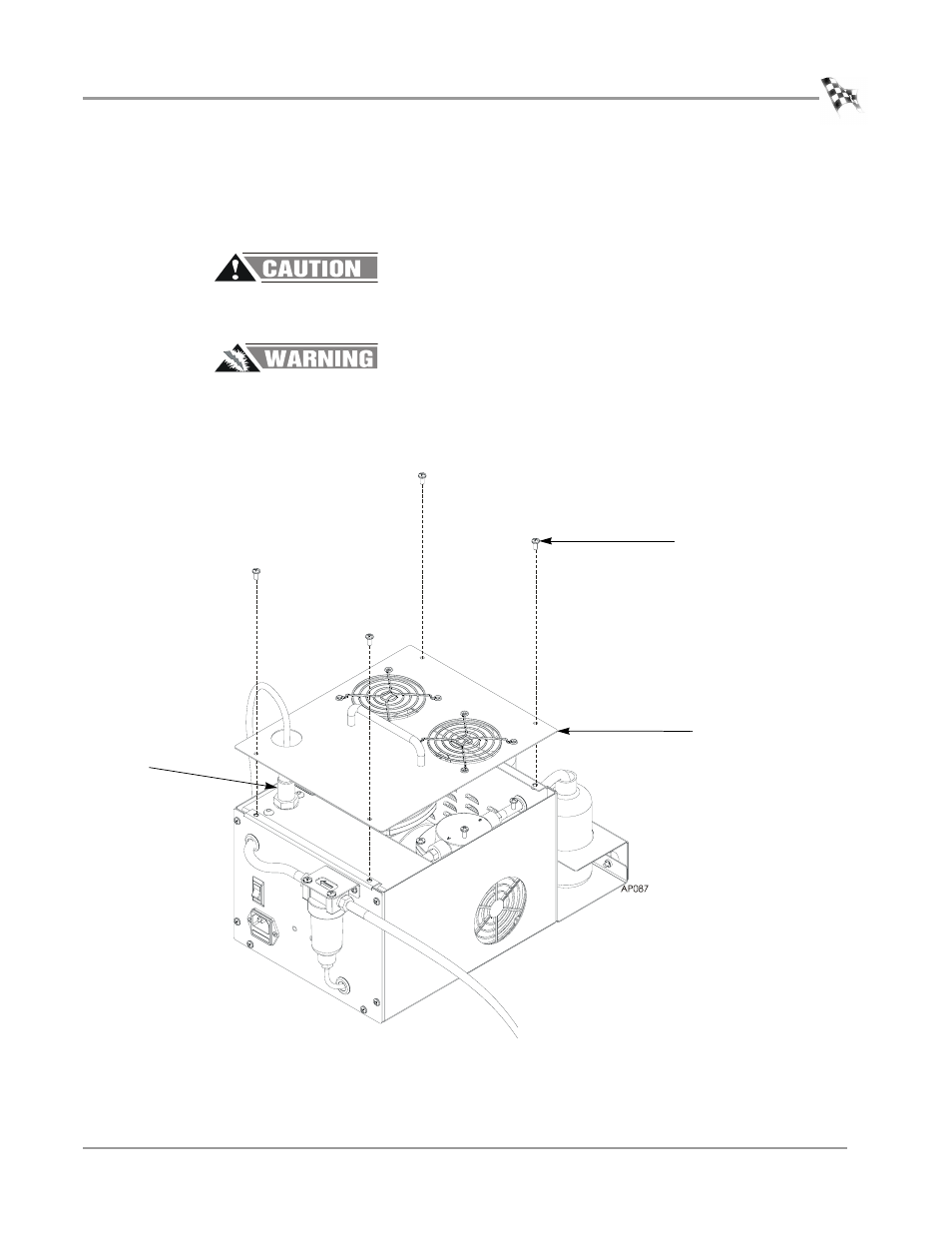

Figure 11: Replacing the Pump Head Service Cover

screw

pump head

service cover

sensor
